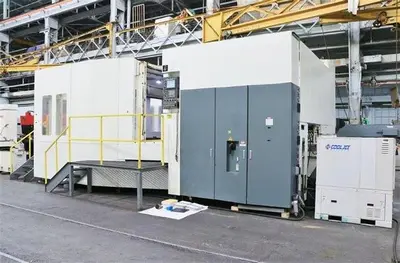

USED 2010 KITAMURA HX-1000I

2 Pallet Changer System

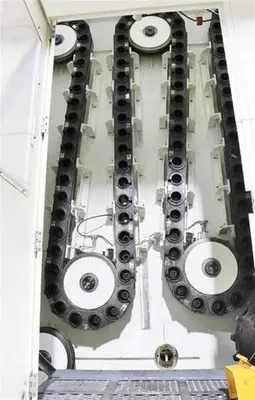

150 Positions Tool Changer
Cool Jet Hi-Press. 1000 PSI Cool. Thru Spindle

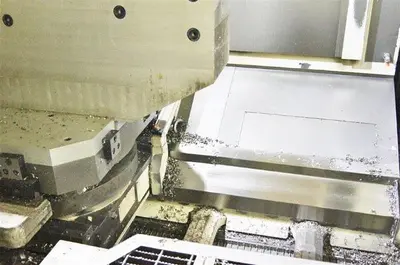

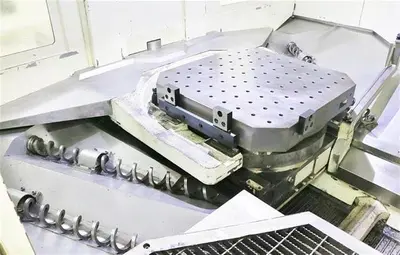

Full 4th Axis Rotary Table
5th Axis Drive / Wiring
Renishaw Part Probing Syst. w/ OMP400 Probe
Chip Conveyor
Chip Auger System
RS-232 Port Interface
3.5" Floppy Disk Interface
AI Nano High Precision Contour Control
500 Block Lookahead
2 Speed Geared
Boxed Ways
Rigid Tapping
Linear Scale Feedback - All Axis'
Hand Held Manual Pulse Generator
Twin Ball Screws
Tool Retract/Recover
Program Restart
Approximately (60) BT 50 Tool Holders
(2) Heavy Duty Fixed Operators Stands
All Available Manuals

**Tsudakoma RWB500R 5th axis table and tailstock available at addl cost**

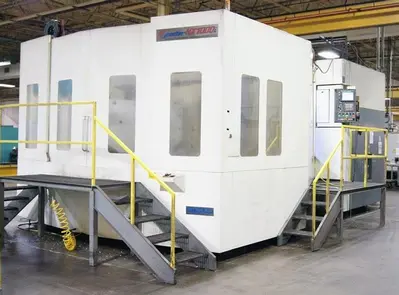

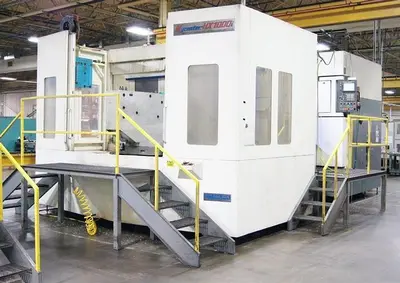

The 2010 Kitamura HX-1000i is a robust CNC horizontal machining center known for its precision and efficiency. It features a Fanuc 16i-MB control system and a dual pallet changer with a pallet size of 39.3" x 39.3", capable of handling up to 6,600 lbs. The machine is equipped with a full 4th axis rotary table with .001-degree indexing, enhancing its versatility for complex machining tasks.

This model provides extensive axis travel, with 80.31" on the X-axis, 51.97" on the Y-axis, and 53.94" on the Z-axis, making it suitable for large-scale machining applications. The spindle comes with a BT #50 taper, offering speeds from 35 to 8,000 RPM powered by a 40 HP geared motor. The tool changer accommodates 150 tools and supports efficient tool changes with a tool-to-tool time of 3 seconds and chip-to-chip time of 7 seconds.

Dimensions of the machine are 194" x 345" x 150", and it weighs 126,104 lbs. The rapid traverse rates and cutting feedrates both reach 1417 IPM, ensuring swift and effective machining operations. This machine is an ideal choice for industries requiring heavy-duty, precise, and versatile machining capabilities.

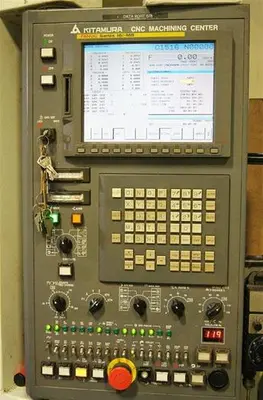

Control: Fanuc 16i-MB
Pallet Size / Number of Pallets: 39.3" x 39.3" / 2 Pallet Changer
Maximum Weight on Table: 6,600 lbs.
Pallet Indexing: .001 Degree Full 4th Axis Rotary Table
X-Axis Travel: 80.31"
Y-Axis Travel: 51.97"
Z-Axis Travel: 53.94"

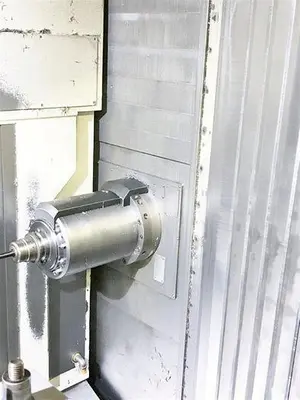

Spindle Taper: BT #50
Spindle Speeds: 35 - 8,000 RPM
Spindle Motor: 40 HP Geared
Number of Tool Positions: 150 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 4.925" / 25.6" / 66 lbs.
Tool Change Time Tool to Tool: 3 Seconds
Tool Change Time Chip to Chip: 7 Seconds
Rapid Traverse Rates: 1417 IPM
Cutting Feedrates: 1417 IPM
Machine Dimensions: 194" x 345" x 150"
Machine Weight: 126,104 lbs.
