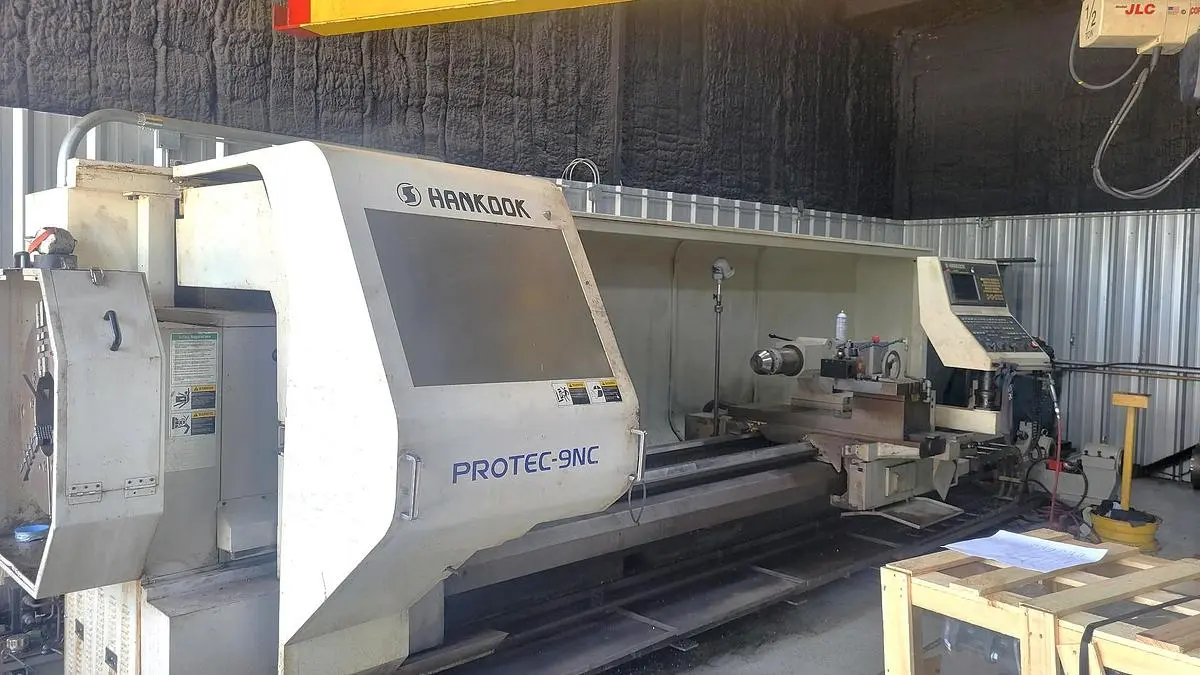

USED 2006 HANKOOK PROTEC 9NC

10" Spindle Bore/Bar Capacity
Chip Conveyor

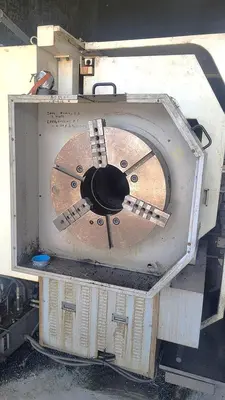

25" 4 Jaw Manual Chuck on Front

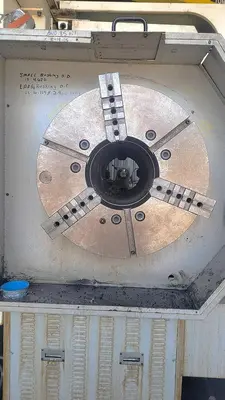

25" 3 Jaw Manual Chuck on Rear

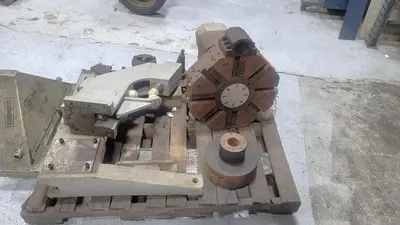

8 Station Turret that Mounts on Cross Slide

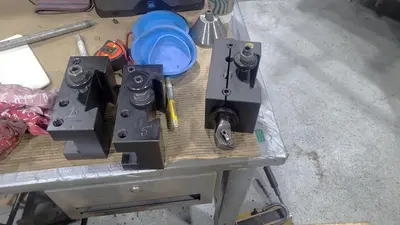

Dorian Tool Post Mounted on Cross Slide
Heavy Duty Tailstock

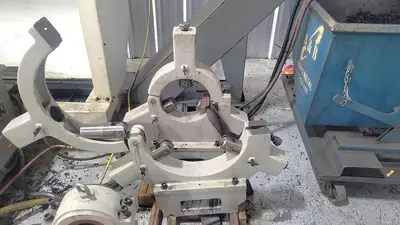

(2) Roller Type Steady Rests
(1) Follower Rest

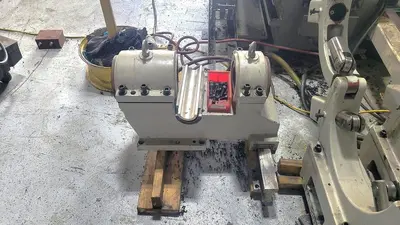

Long Boring Bar Attachment
Remote Jog Handle
Enclosed with Slide Doors
Work Light
Coolant System with Tank & Pump
Hard Disk Interface
RS 232 Port Interface

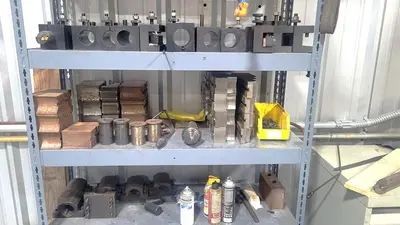

All Available Tooling
All Available Manuals

**Run Time Hours 6,069**

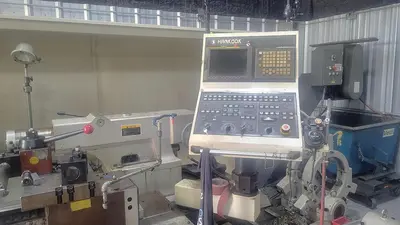

Machine Control: Fanuc 21i-TB Control
Chuck Size: (2) 25" Manual Chucks on Front & Rear
Maximum Swing: 37.43"
Maximum Turning Diameter: 37.43"
Maximum Swing Over Cross Slide: 24.8"
Maximum Turning Length: 151"
Distance Between Centers: 157.6"
Maximum Bar Capacity: 10"
Maximum Load Between Centers: 11,000 lbs.
X-axis travel: 21.1"
Z-Axis Travel: 151"
Spindle Nose / Spindle Bore: A2-15" / 10"
Spindle Speed: 3 - 630 RPM
Spindle Motor: 35 HP - 2 Speed
Number of Turret Positions: Tool Post
Rapid Traverse Rates X / Z: 157.6 IPM / 236 IPM
Tailstock Quill Travel / Quill Diameter: 9.85" / MT #6
Machine Dimensions LxWxH: 255" x 87" x 73"
Machine Weight: 20,200 lbs
