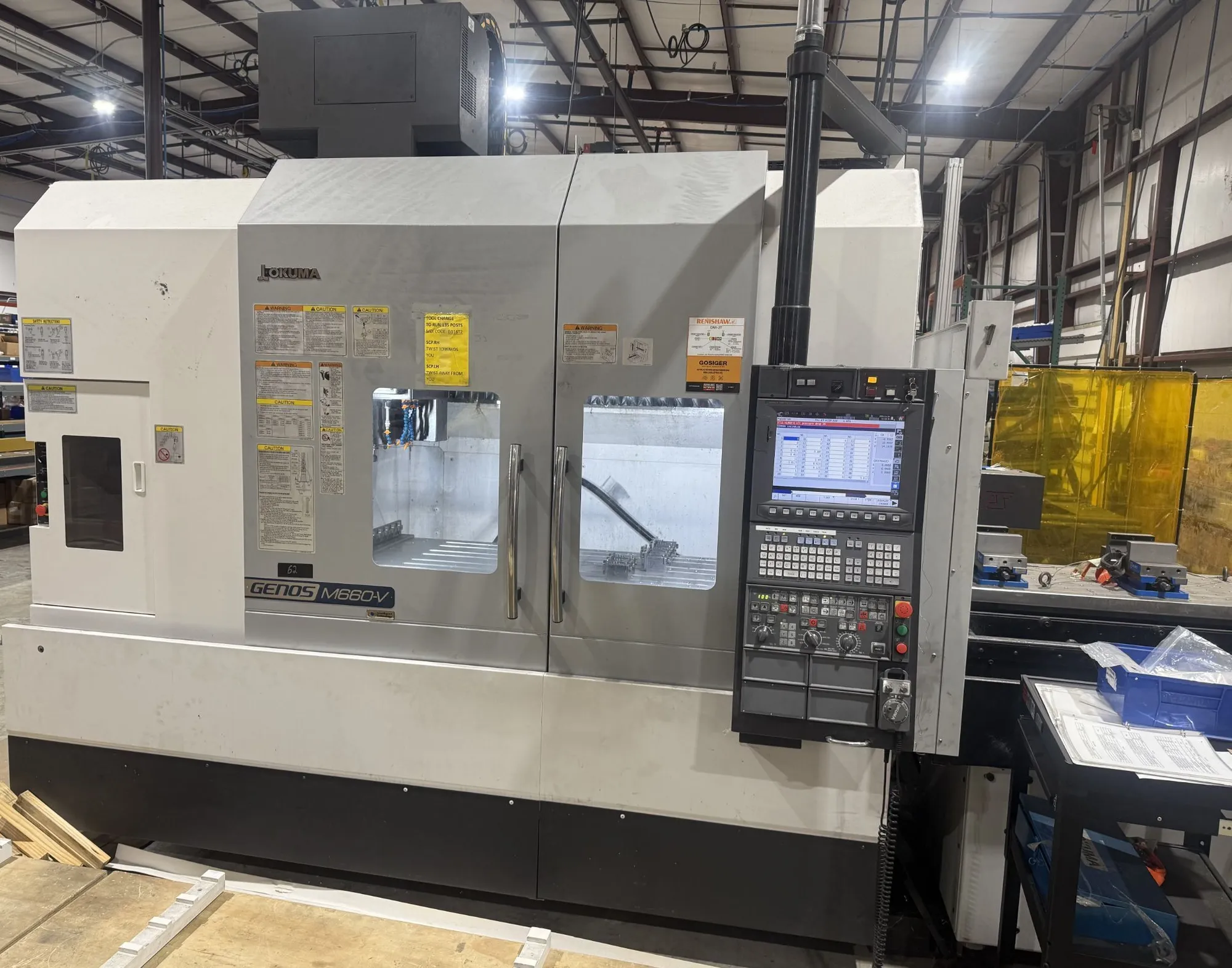

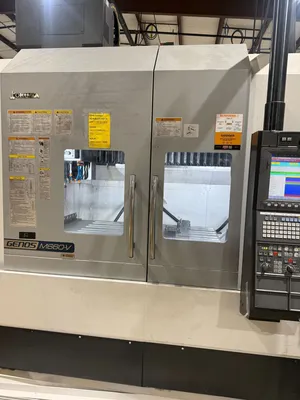

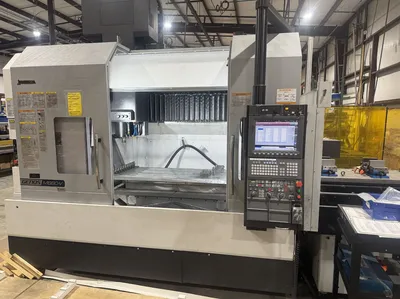

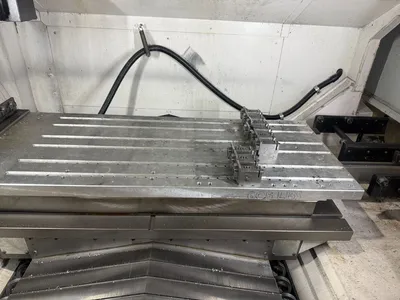

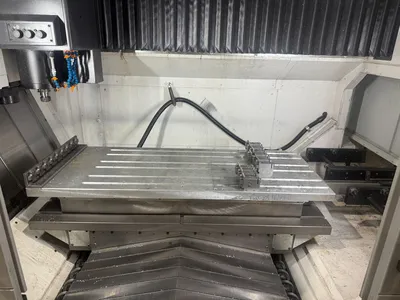

USED 2020 OKUMA Genos M660-V

OKUMA GENOS M660-V Vertical Machining Center (used) New 2020 w/MIDACO Automatic Pallet Changer, LNS/Turbo Chip conveyor, 15K RPM spindle, Auto Gauging Renishaw, CAT40, OSP P300MA Upgrade 3D D Kit, Midaco Shuttle APC, Auto Gauge Tool Breakage interface, Midaco touch probe MTG Kit, Midaco blow-off air gun kit, Midaco fan chop blower fan, Ingersoll chip surfer Shank, misc tooling, tool kit, keys, manuals.

X, Y, Z simultaneous 3-axis, spindle control (1 axis)
OSP full range absolute position feedback (zero point return not required)
Machine coordinate system (1 set), work coordinate system (20 sets)
±99999.999 mm, ±9999.9999˚, 8-digit decimal, command unit: 0.001 mm, 0.01 mm, 1 mm, 0.0001˚, 0.001˚, 1˚
Cutting feed override 0 to 200%, rapid traverse override 0 to 100%
Direct spindle speed commands, override 30 to 300%, multi-point indexing
No. of registered tools: Max 999 sets, tool length/radius compensation: 3 sets per tool

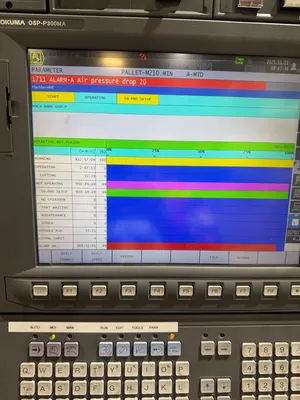

15-inch color LCD + multi-touch panel operations
Automatic diagnostics and display of program, operation, machine, and NC system faults
Program storage: 4 GB, operation buffer: 2 MB
Program management, editing, scheduled program, fixed cycle, G-/M-code macros, arithmetic,
logic statements, math functions, variables, branch commands, coordinate calculate, area machining, coordinate convert, programming help
Applications to graphically visualize and digitize information needed on the shop floor
Highly reliable touch panel suited to shop floors. One-touch access to suite apps.
“Single-mode operation” to complete a series of operations, Advanced operation panel/graphics facilitate smooth machine control
MDI, manual (rapid traverse, manual cutting feed, pulse handle), load meter, operation help, alarm help, sequence return, manual interrupt/auto return, pulse handle overlap, parameter I/O, self-diagnostics, PLC monitor, Easy Setting of Cycle Time Reduction
Machining management: machining results, machine utilization, fault data compile & report, external output
USB (2 ports), Ethernet
TAS-S (Thermo Active Stabilizer––Spindle), TAS-C (Thermo Active Stabilizer––Construction), Hi-G Control, Hi-Cut Pro, pitch error compensation
ECO Idling Stop*1, ECO Power Monitor*2

Auto program schedule update
Program notes (MSG)
Coordinate system selection
Helical cutting (within 360˚)
Synchronized Tapping II
Programmable travel limits
Arbitrary angle chamfering
Programmable mirror image
Enlarges and reduces drawings
Tool life management
Auto power shut-off
Sequence stop
Mid-block sequence return
Real 3-D simulation
I-MAP
Simple load monitor
NC operation monitor
Cycle time reduction
Manual gauging (w/o sensor)
Tool wear compensation
To change a part program during a scheduled run
To show notes in part program screens
200 sets (Std: 20 sets)
To machine large-diameter screws with angular cutters
Fast & accurate rigid tapping (synchronized spindle speed, angle, feed axis position)
Per G22, G23
Easy any-angle chamfering (C, R)
Tools automatically replaced per No. of workpieces or cycle times
At auto run end or preset times
Machining stopped at designated sequence No.
Restart sequence from mid-block
Real time simulation of all machining modes (auto, MDI, manual)
Easy part program editing per guide maps (with drawing calculate)
Spindle load (stops machining at overload)
Time totals (cutting, operation, spindle rotation, external input, etc) and 4 workpiece counters
Reduces/shortcuts operation procedures
Corrects tool edge position per amount of tool wear (No. of comp sets same as tool comp)

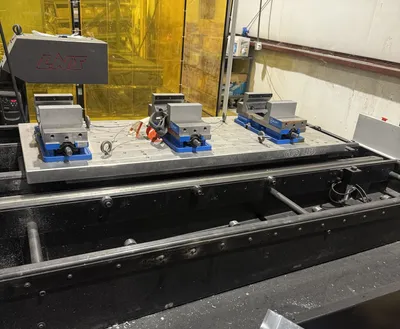

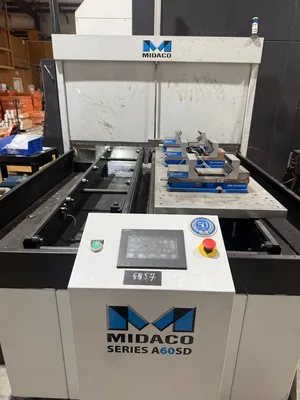

MIDACO Automatic Pallet Changer Shuttle

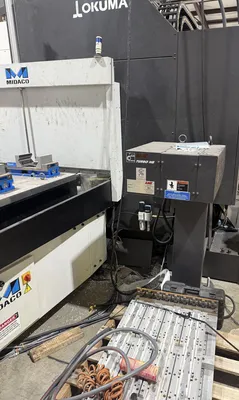

LNS/Turbo Chip conveyor

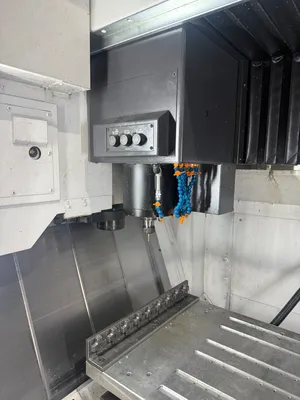

15K RPM spindle
Auto Gauging Renishaw
CAT40
OSP P300MA Upgrade 3D D Kit
Auto Gauge Tool Breakage interface
Midaco touch probe MTG Kit
Midaco blow-off air gun kit
Midaco fan chop blower fan
Ingersoll chip surfer Shank

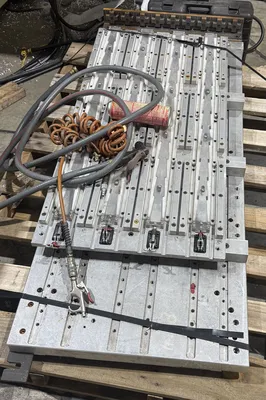

Misc tooling, tool kit, keys, manuals.
