USED 2011 MAZAK VARIAXIS 500-5X II
Overview
Description
Mazak Variaxis 630-5X-II with (5)-station Palletech FMS, 12k CAT40 spindle, 120-tool ATC, CTS, and die/mold package. Full 5-axis automation cell.
Specifications
| X | 24.8" | 629.92 mm |
|---|---|---|
| Y | 30.12" | 765.05 mm |
| Z | 20.08" | 510.03 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 40 | CAT 40 |
A-Axis Travel (Tilting Table): -120° to +30°
A-Axis Positioning Resolution: .001° (positioning only)

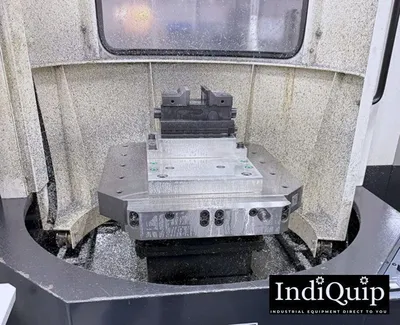

C-Axis Travel (Rotary Table): 360° continuous
Spindle-to-Table Distance (Horizontal Table Position): 9.06″ – 29.13″
Maximum Table Load: 1,102 lbs
Maximum Workpiece Size: 28.74″ Diameter × 19.69″ Height
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM
Spindle Power: 30 HP peak / 20 HP continuous
Control: Mazatrol Matrix
Electrical Requirements: 400V, 3-Phase, 60 Hz
Equipped With

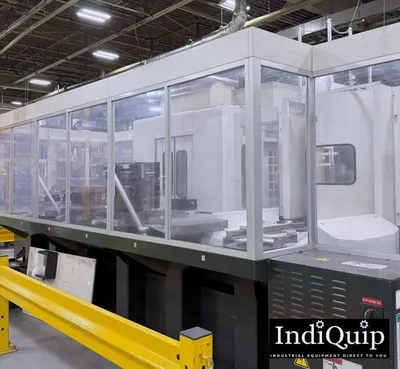

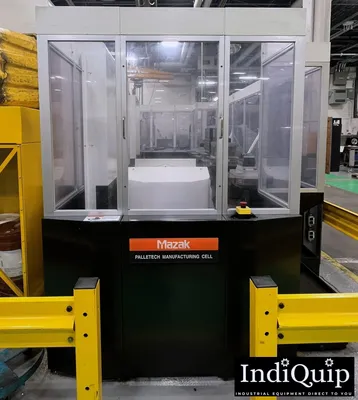

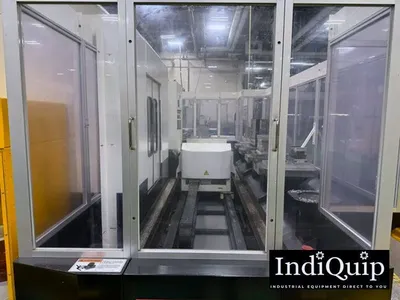

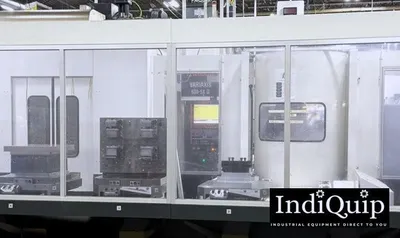

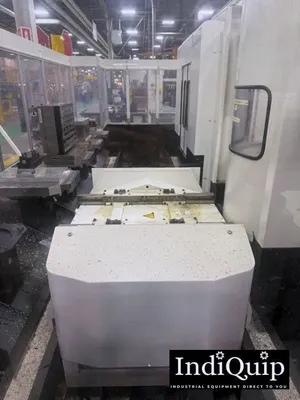

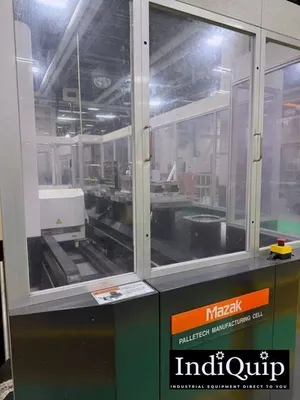

(5)-Station Mazak Palletech 5-Axis FMS Automation Cell\

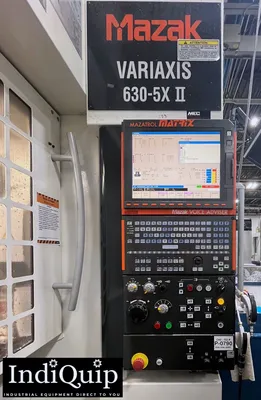

Mazatrol Matrix Control with Voice Advisor & 15" Color LCD

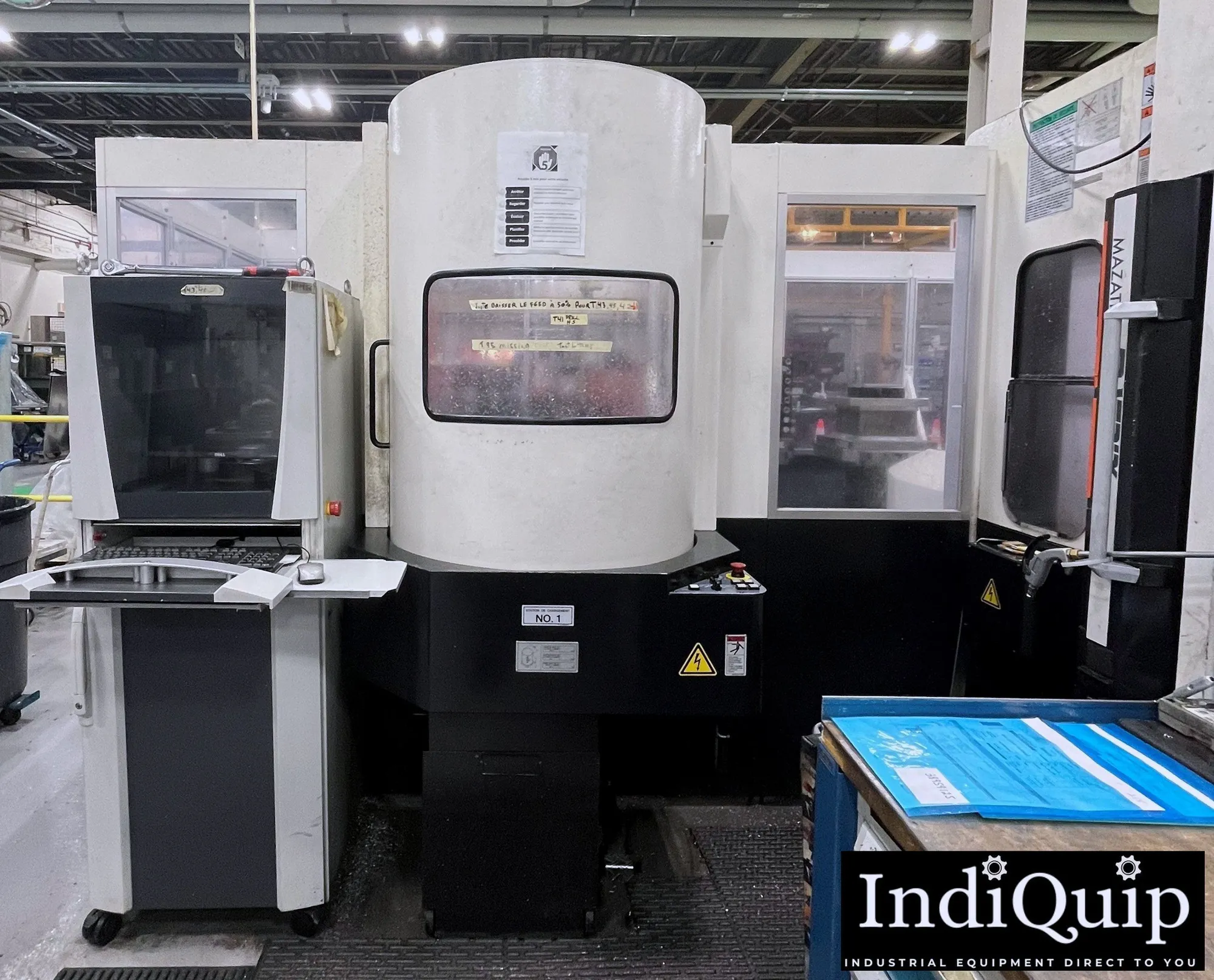

120-Tool Automatic Tool Changer
Coolant-Through-Spindle (CTS)
Die/Mold High-Accuracy Package
High Smoothing Control (for advanced 5-axis surfacing)
Pre-Visual Tool ID Management
Tool Breakage Detection
Probe Prep for Renishaw MP-10
Integrated Chip Conveyor
Workpiece Air Blast
Flood Coolant System
Spare Brand-New Spindle Included
