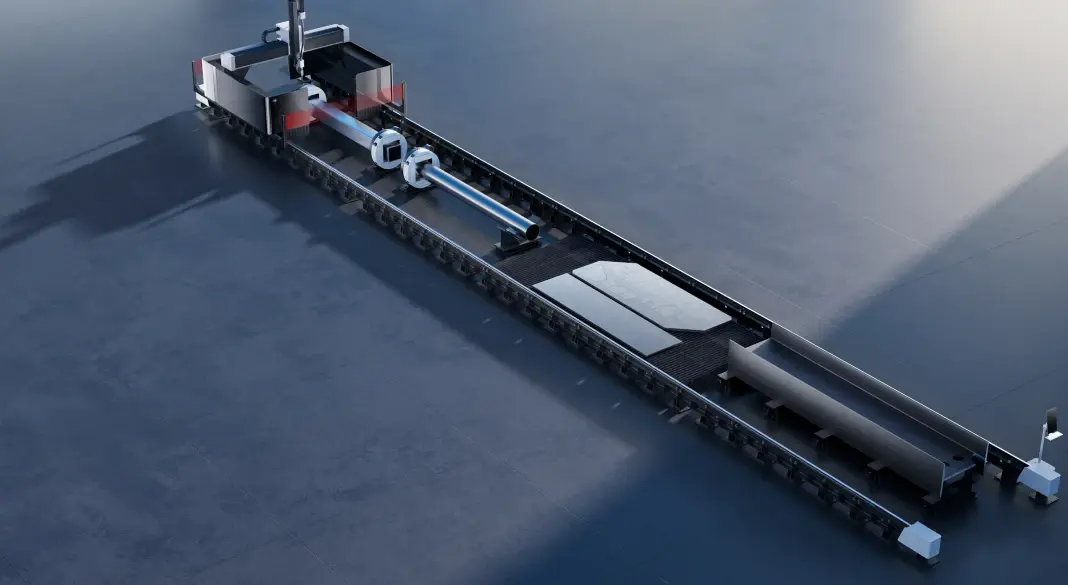

NEW 2026 BODOR U10 Fiber Laser Beam Processing

Multi-Material and Multi-Benefit Integration Comprehensive Solution

The U10 supports versatile processing capabilities for profiles, tubes, and metal sheets, allowing seamless handling of diverse steel structures.

Intelligent Processing
Equipped with real-time deviation correction, the U10 ensures accurate processing, reducing the need for manual adjustments and the risk of laser head collisions.

Multiple Compatibilities
With multiple compatibilities for cutting foundations and Tekla drawings, the U10 optimizes workflow, significantly reducing working costs.

Processing Range(Profile) 100mm × 100mm- 1500mm × 600mm

Processing Range(Sheet-Straight Cutting) 3200mm×28000mm

Processing Range(Sheet-Bevel Cutting) 2800mm×28000mm

Processing Range(Square+Round Tube) 200mm-850mm

Processing Range(Round Tube Only) φ100mm-φ1200mm

Processing Length ≤28000mm

Powers 6000-20000W

Overall Dimensions 33900 mm × 5030 mm × 4100mm

Bevel Cutting

Fly Cutting

Intelligent Deviation Correction

*All parameters on this page are based on testing by Bodor Laser Laboratory

One-Stop Solution
U3000 can process profiles with widths up to 1500mm, heights up to 600mm, and lengths up to 28000mm. Whether standard or special-shaped profiles, it can provide one-stop processing for perforation, beveling, notching, marking, and cutting.

Multiple Compatibilities

With multiple compatibilities for cutting foundations and Tekla drawings, the U10 optimizes workflow, significantly reducing working costs.

Processing Range(Profile) 100mm × 100mm- 1500mm × 600mm

Processing Range(Sheet-Straight Cutting) 3200mm×28000mm

Processing Range(Sheet-Bevel Cutting) 2800mm×28000mm

Processing Range(Square+Round Tube) 200mm-850mm

Processing Range(Round Tube Only) φ100mm-φ1200mm

Processing Length ≤28000mm

Powers 6000-20000W

Overall Dimensions 33900 mm × 5030 mm × 4100mm

Bevel Cutting

Fly Cutting

Intelligent Deviation Correction

*All parameters on this page are based on testing by Bodor Laser Laboratory
