Used 19" x 102" LeBlond Regal Engine Lathe with 2 steady and follow rests, 10 hp motor, and 2.75" spindle bore. Includes a quick-change toolpost with holders, tailstock, and more. Ideal for precision machining tasks.
| Swing | 19" | 482.6 mm |
| Centers | 102" | 2,590.8 mm |
| Spindle Bore | 2.75" | 69.85 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Swing Over Cross Slide | 13" | 330.2 mm |
| Dimensions | 15' L x 4'2" D x 5' H | 15' L x 4'2" D x 5' H |
| Weight | 5000 | 5000 |

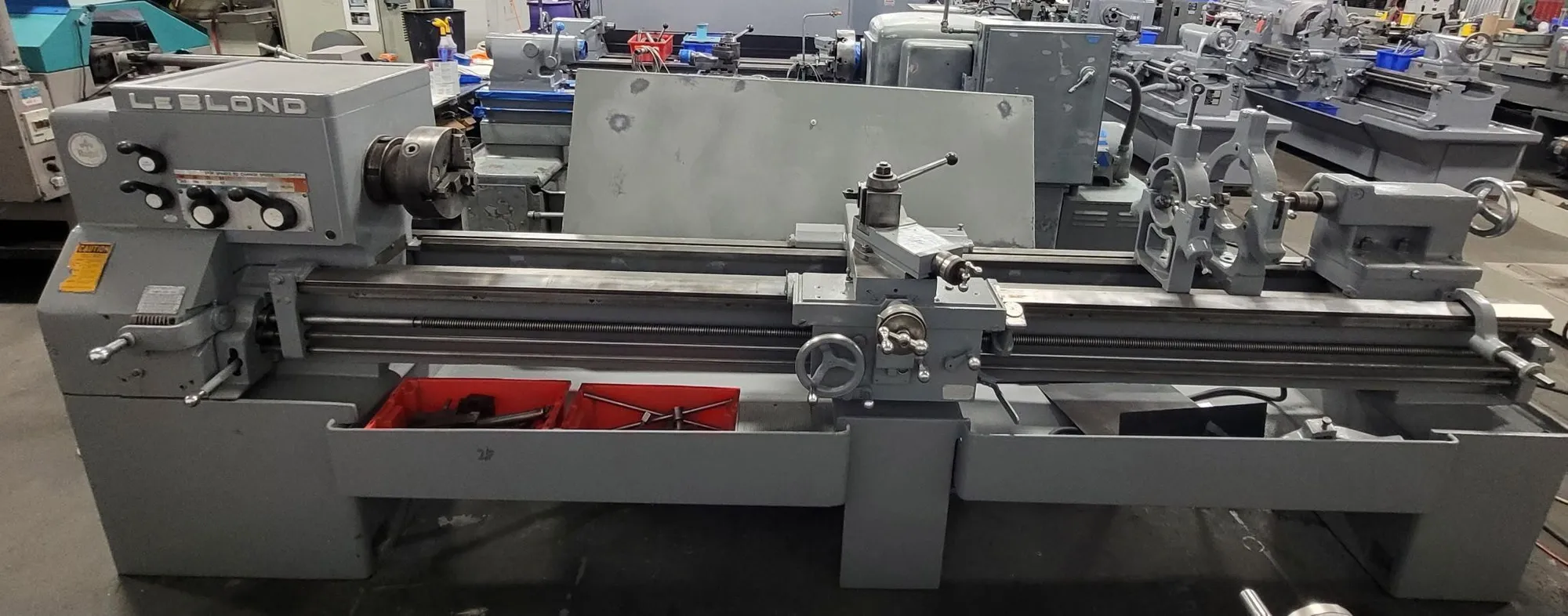

19" x 102" LeBlond Regal Engine Lathe
SERIAL: 8E2304
MODEL: 19" REGAL
SWING OVER WAYS: 19"
SWING OVER CROSS SLIDE: 13"
DISTANCE BETWEEN CENTERS: 102"
SPINDLE SPEEDS: 25 TO 1000 RPM
SPINDLE HOLE: 2 3/4"
STANDARD THREAD: (48) 2 TO 112 TPI
STANDARD FEEDS: (48).0018 TO .104 IPR
CHUCK: 10" 3 JAW
TREAD DIA:YES
2-STEADY RESTS
HARD WAYS: YES
CHIP PANS:YES
MOTOR: 10 HORSEPOWER
FOLLOW REST
QUICKCHANGE TOOLPOST W/HOLDERS
TAILSTOCK
TAILSTOCK CHUCK: JACOBS
BORING BARS & TOOLING
460V 3 PHASE
