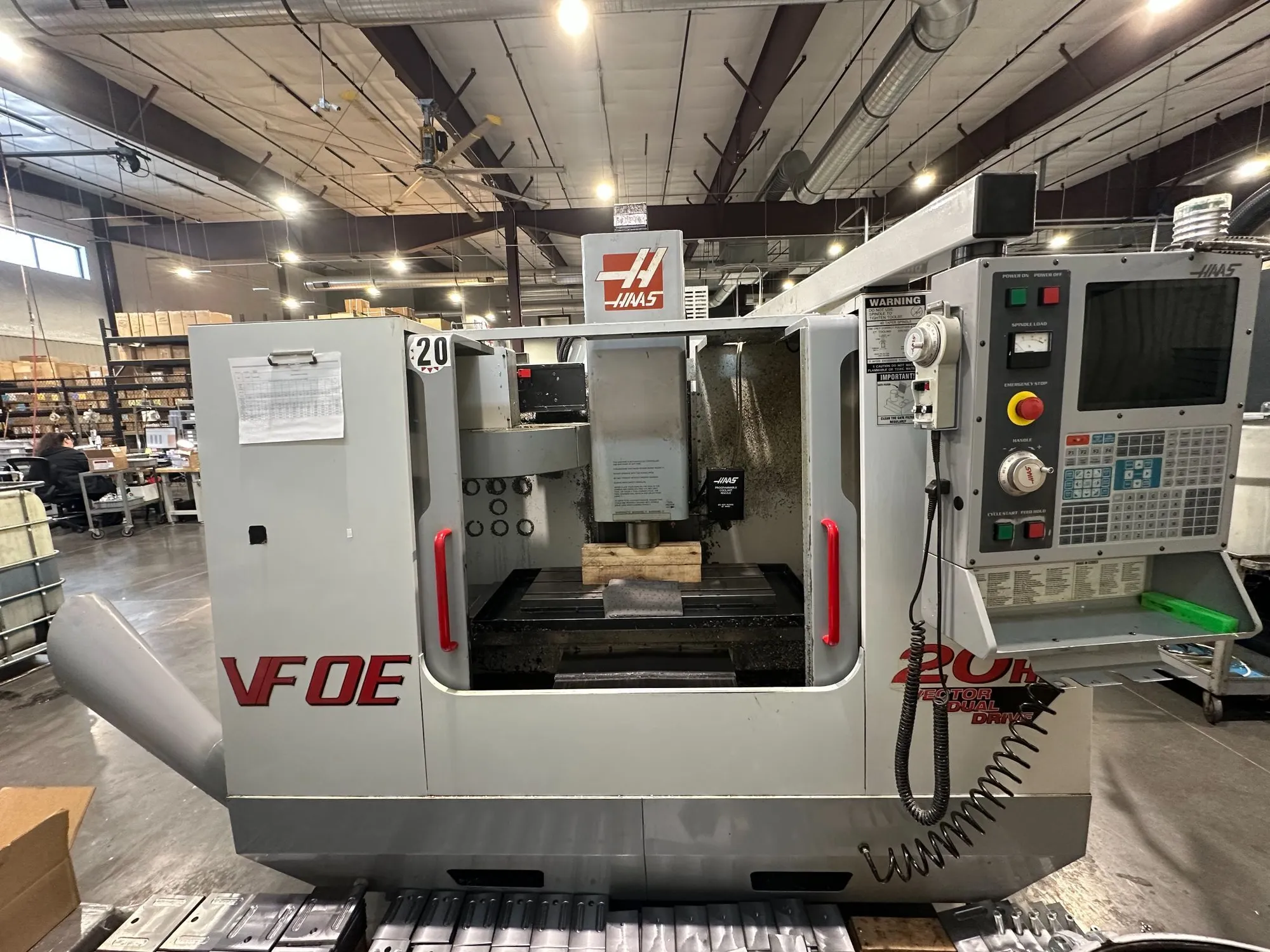

HAAS VF-0E Vertical Machining Center, 2001 model, used. Specs: X/Y/Z travels 30"/16"/20", 20 HP, 15,000 RPM, 20 ATC, CAT-40 Taper, 14"x36" table, 3-axis. Ideal for diverse machining tasks.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
Model: VF-0E
Voltage: 208/230V
Phase: 3-Phase
Hertz: 50/60 Hz
Full Load Amps: 40A
Largest Load: 30A
Short Circuit Interrupting Capacity: 10,000A
Wiring Diagram: 96-8000
