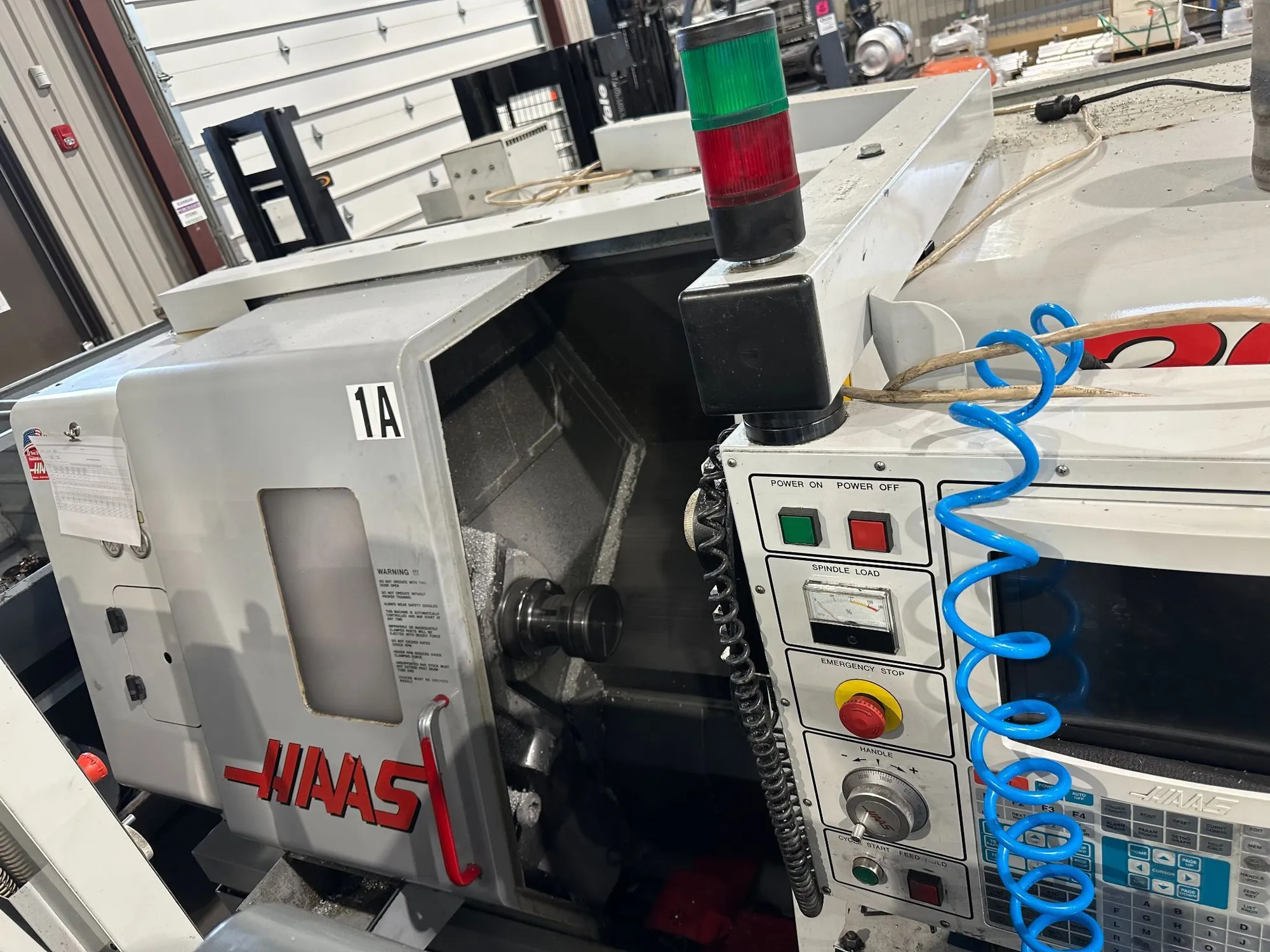

Explore the efficiency of a used 1999 HAAS SL-20T CNC Lathe. Features include a 23" swing, 24" machining length, 8" chuck size, 2" bar capacity, 20 HP, and max RPM of 4000. Tailstock equipped, ideal for precise turning tasks.
| Swing | 23" | 584.2 mm |
| Machining Length | 24" | 609.6 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 10.3" | 261.62 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
Model: SL-20T
Voltage: 208/230V
Phase: 3-Phase
Hertz: 50/60 Hz
Full Load Amps: 40A
Largest Load: 30A
Short Circuit Interrupting Capacity: 10,000A
Wiring Diagram: 96-8700
