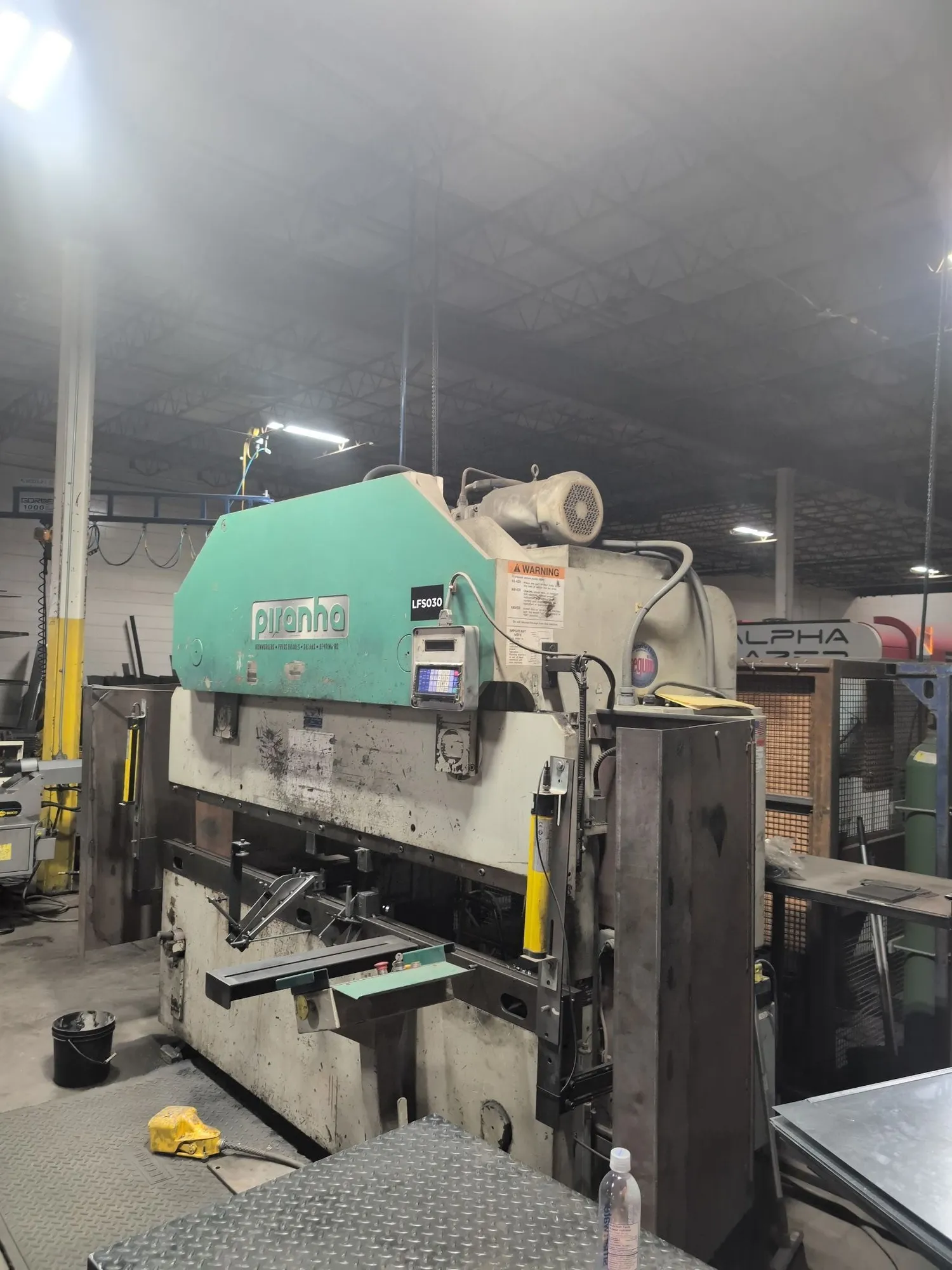

PIRANHA 70-08 Press Brake, used, offers 70-ton capacity and a robust 8-foot overall length, ensuring efficiency for your metal fabrication needs.
| Tonnage | 70 T | 63.503 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 6.72' | 2 m |
| Stroke | 3.94" | 100.08 mm |
| # Axis | 2 | 2 |
| Control | CNC | CNC |
| Dimensions | 10' x 5.4' x 7.25' | 10' x 5.4' x 7.25' |
| Weight | 10,800 LBS | 10,800 LBS |
Pressure 70 TONS
Length of worktable 98.5 IN
Die Rail Height 2.36 IN
Distance between uprights 80.7 IN
Ram stroke 3.94 IN
Max open height (with die rail without clamps) 13.39 IN
Throat depth 9.84 IN
CNC axis w/Estun Y and X Axis Only
Ram Speed Approach 165 IPM
Work 23 IPM
Return 142 IPM
Repeatability +/- 0.001 IN
Back Gauge X Stroke 23.6 IN
Work piece size 23.6 IN
Max running speed 38.4 IPM
Re-position +/- 0.002 IN
Overall Dimensions L 120 IN
W 65 IN
H 87 IN
Oil Capacity 63 Gallons
Motor 7.5 HP
Machine weight 10,800 LBS
