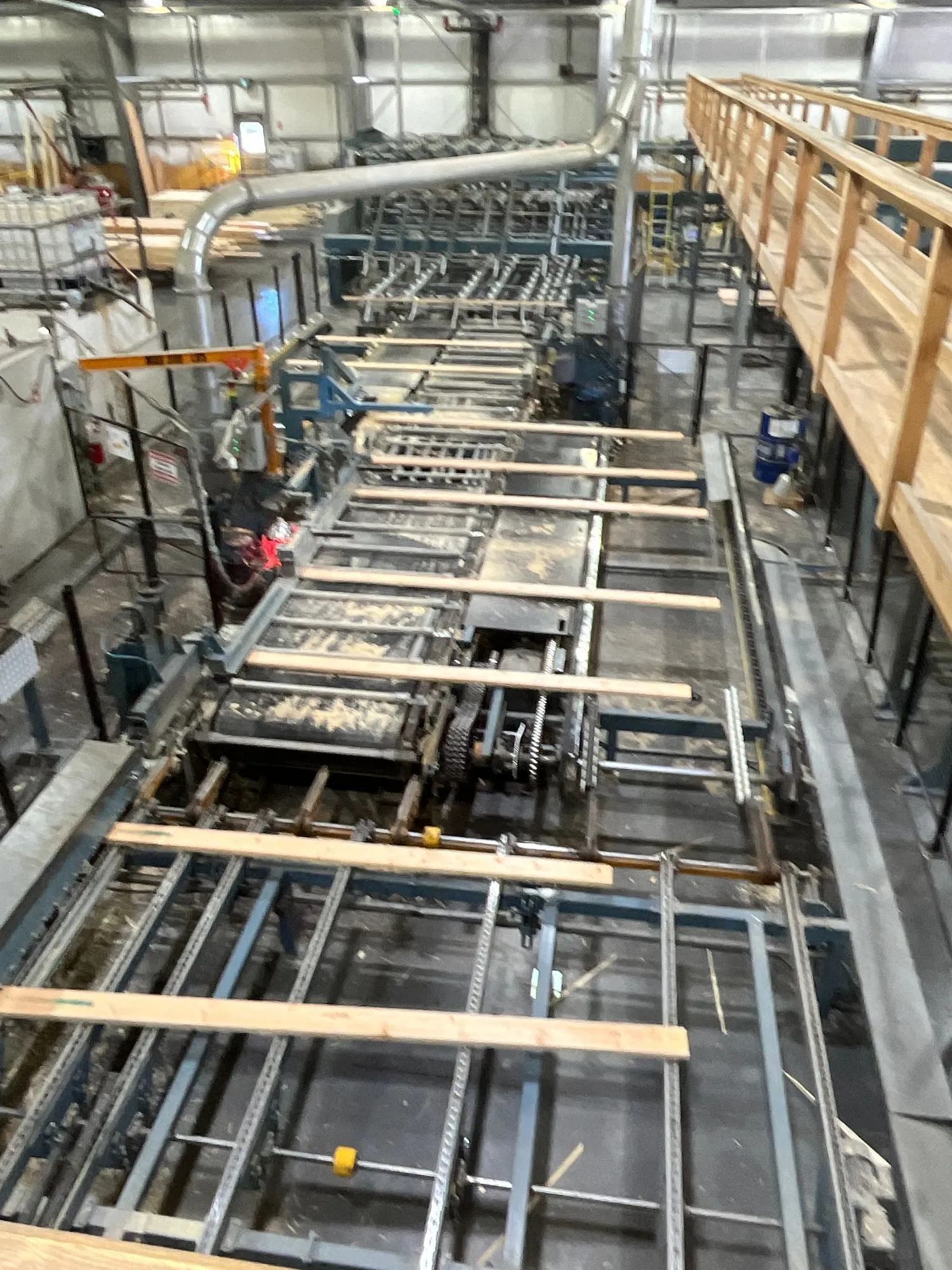

USED 2020 CONCEPTION R.P CRP-2750

2020 CONCEPTION CRP-2750 FINGER JOINTING SYSTEM

Manufacturer: Conception R.P
Model: CRP-2750
Type: Horizontal finger jointing system for long blocks / structural lumber
Mfg Date: 2020

POWER: 480v, 60hz, 3ph

CRP-2750 Core Machine Module
Feeder lug chain
Double shaper with glue applicator system
Automatic corner transfer
Assembly machine
High-productivity press
Finger joint quality control station with reject gate

Capacity
Thickness: 16mm to 75mm (0.625"" to 3"")
Width: 63mm to 286mm (2.5"" to 11.26"")
Length (raw boards): 305mm to 4.9m (12"" to 16 ft)
Finished product length: up to 18.5m (60 ft)

Production
Input: up to 160 boards/min
Output speed: up to 120 m/min (400 ft/min)

Outfeed Unstacker Chains
8 ft (2.4m) acceleration chain conveyor

Scanner Feeder
Flat chain conveyor approx. 6.5 ft (2.0m) long
Buffer zone function
2 motorized top rolls + 2 motorized bottom rolls actuated by pneumatic cylinders

Boards Accumulation Chains Before Scanner
18 ft (5.5m) chain conveyor
Acts as a buffer zone

Saw Feeder
Bottom chain conveyor
2 motorized top + bottom rolls actuated by pneumatic cylinders to clamp boards

Saw Outfeed Belt
15 in. smooth belt conveyor
Approx. 27 ft (8.2m) long

Transfer Conveyor to Crosscut Saw (with Reject Gate System)
Chain conveyor with 15 in. lug spacing
Even ending rolls for board alignment
Reject gate actuated by pneumatic cylinders

Finger Line Infeed Belt
15 in. smooth belt
Acts as buffer between CCS1000 (not included) and flow control rollers
Approx. 27 ft (8.2m) long

Finger Line Infeed Rolls
2 motorized top + bottom pinch rolls
Approx. 10 ft (3.0m) long

Finger Line Transfer – Waterfall Lug Loader
Electronic indexer
Speed-up chain for lug matching
Board length capacity: 1 ft (305mm) to 16 ft (4.9m)

INCLUDED:
Sorting line
Shaper line
Press line
Secondary bypass conveyors
Sorting line waterfall system
Operator catwalk mezzanine surrounding sorting line
Automated grain orientation system - grain detection camera + end grain saw + board turner for (camera never commissioned)
Cutterhead cleaners post shaper
Glue applicator system
Short Finger detection system
Tooling, ACEco cutter heads + spares, 10 bolt 13.5” diameter
Safety fencing with electrical access doors surrounding FJ shaper and press sections

**NOT INCLUDED**
Package infeed and destacker not included
Microtec scanner not included
Cross cut saw not included
Curing decks not included
