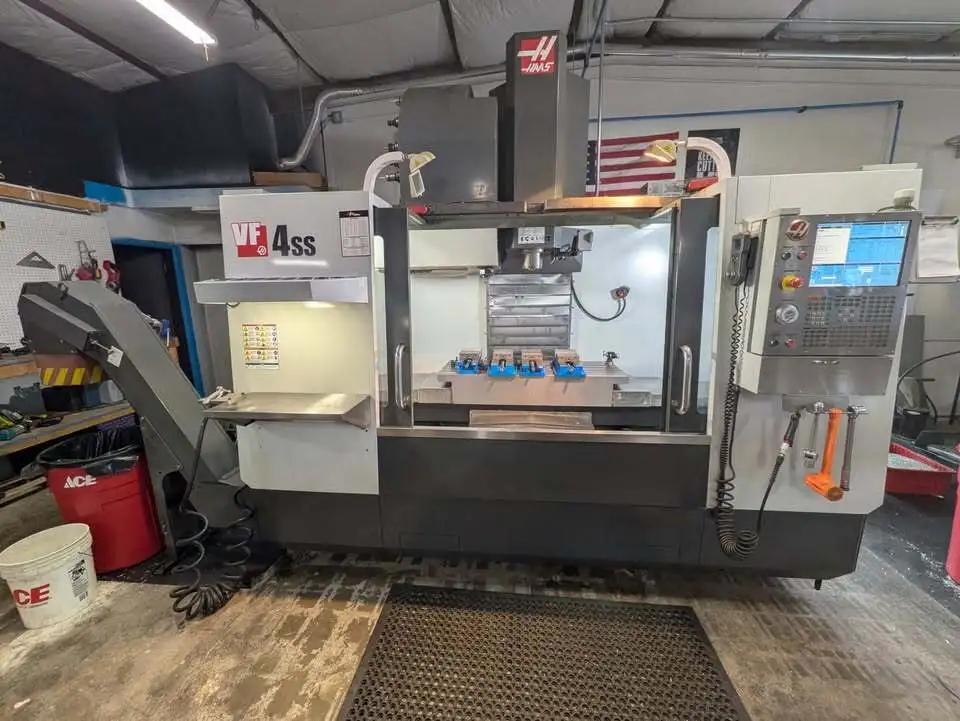

Haas VF-4SS VMC, 2013: Low hours, 12,000 RPM, 30 hp, 50"x20"x25" travel, CAT40 taper. Features wireless probing, high-speed machining, thru-spindle coolant ready, and expanded memory. Power: 220V 3 Phase. Ideal for precision and efficiency.
| X | 50" | 1,270 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 52" | 1,320.8 mm |
Make: Haas
Model: VF4SS
Year: 2013
Spindle RPM: 12,000
Taper: CAT40
On Time: 1,455
Run Time: 355
Feed Time: 217
ATC: 40+1 SMTC, worm gear style
Rotary Table/Trunnion: 4th axis ready
X Travel: 50
Y Travel: 20
Z Travel: 25
-Wireless Intuitive Probing System(WIPS)
-High speed machining
-Thru-spindle coolant ready
-1GB expanded memory
-High intensity lighting
Chip Removal: Quad auger, conveyer
Power: 220V 3 Phase - 100 amp circuit
