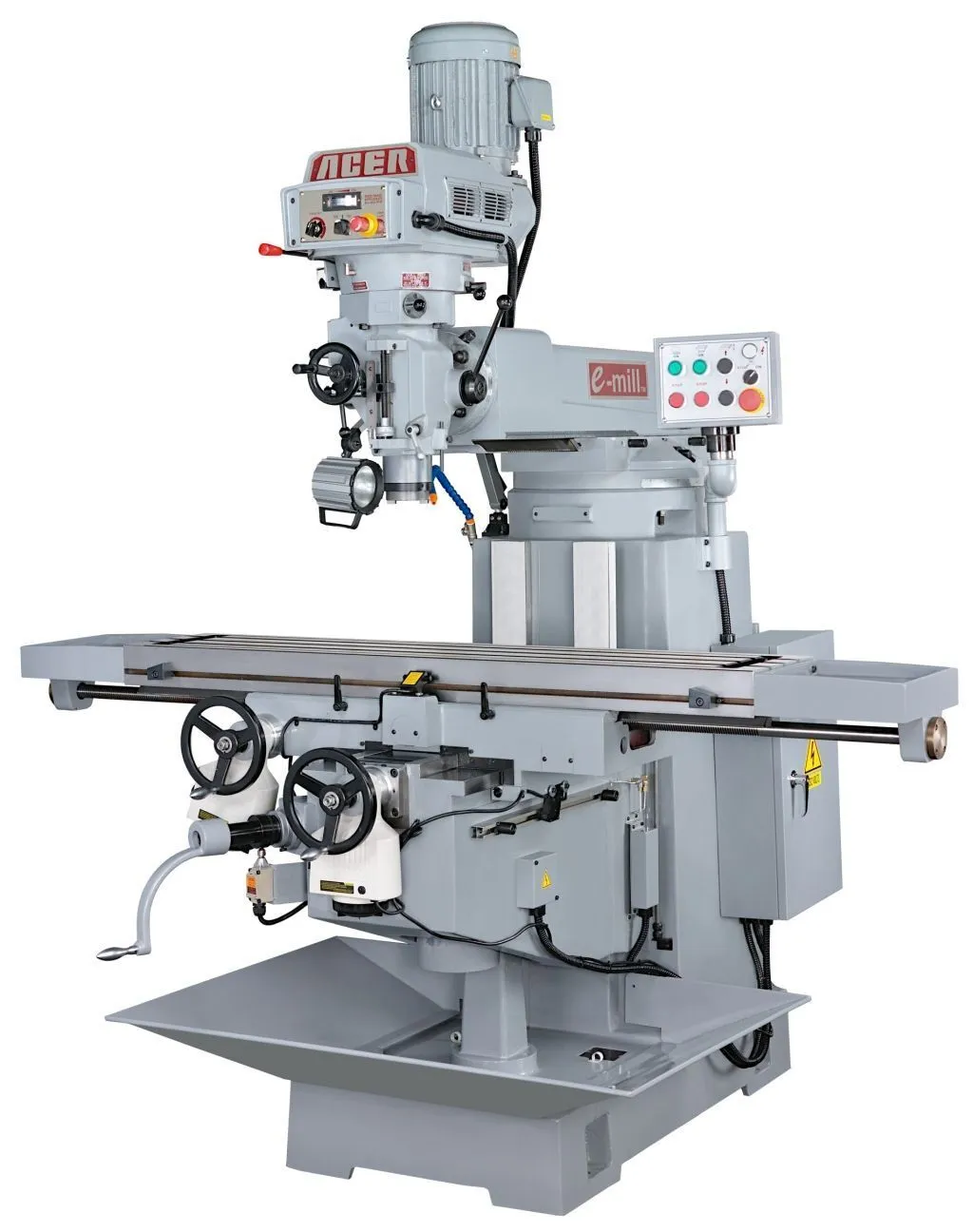

NEW ACER E-MILL 6VK

Specifications:
Table:
• Working surface..........59" x 11-4/5"
• Longitudinal travel(manual)..........47.25"
• Cross travel..........15"
• Vertical knee travel..........19.75"
• Longitudinal power feed..........1" - 29" in/min
• Longitudinal rapid traverse..........94.5 in/min
• Ram travel..........16-8/9"
• Ram Swivel..........360°
• T-slot number, size..........3, 5/8"
Head:
• Main motor..........5 HP
• Head moves right to left..........90°
• Head tilts front to back..........-
Spindle:
• Spindle drive..........Variable
• Spindle speed..........50 ~ 3,750
• Spindle taper..........N.S.T. #40
• Spindle nose to table surface distance..........3-2/7" - 19-2/5"
Quill:
• Power quill feeds (In / Rev.)..........0.0015", 0.003", 0.006"
• Quill travel..........5"
• Table power feed motor ..........2HP
• Knee vertical feed motor ..........2HP 6P
• Coolant pump ..........1/8HP
Machine Dimensions:
• Machine dimensions ..........83" x 82" x 94"
• Packing dimensions ..........89" x 69" x 80"
• Net Weight ..........4,960 lbs

Features:
• The heavy construction main body is made from Meehanite casting, weight 4960 lbs.
• Machine comes with heavy duty extra wide box way for crossfeed and kneefeed.
• The saddle and table are hardened elaborately ground.
• For long-lasitng accuracy and smooth operation, “Tekslide” is applied to the surface of the X and Y slideways.
• Acer’s advanced E-mill 5VK Head with inverter elctronic variable speed.
• Machine provides large working table, 59″ x 11-4/5″ with extensive travel 47″ x 15″. It is the largest in its class!
• Machine can run both single and three phase 220V without using phase converter.

Standard accessories:
• Coolant system
• Halogen work light
• X & Y power feeds
• Elevating motor on the knee
• Automatic lubrication system
• Tool box with tools
• Chip pan
• Safety handwheels with handles
• Electric cabinet
• Ergonomic control panel

Optional accessories:
• Newall DRO (2-axis, 15" x 47 1/4" travel, 0.0002 res. scale)
• Installation fee on 2-axis DRO
• 12" rotary table (vertical & horizontal)
• Clamping kits (52 pieces)
• 6" angle lock milling vise
• Horizontal milling attachment
• Maxi-torque auto-air power drawbar and safety ring
• Installation fee on power drawbar and safety ring
• Upgrade frequency inverter (440 V / 3-phase)
• Upgrade to UL conformity electric cabinet
• Installation fee on UL conformity electric cabinet
• 6" riser block with 3/4" bolts
• Riser installation
