| Dimensions | 25′ x 5′ x 7′ 5″ | 25′ x 5′ x 7′ 5″ |
| Weight | 19,000 Lbs (Rollformer), 15,000 Lbs (Gearbox Stand) | 19,000 Lbs (Rollformer), 15,000 Lbs (Gearbox Stand) |
SPECIFICATIONS:
Number of Passes: 10
Line Direction: Right to Left
Spindle Diameter: 3-1/2″
Roll Space: 19″
Horizontal Centers: 24″
Vertical Adjustment: 5″ – 12-1/2″
Base Top to Center Lower Spindle: 10″
Spindle Key Size: 7/8″
Gearing Ratio: 16.75:1
EQUIPPED WITH:
100 HP AC Motor – 220/440V, 3 Ph, 60 Hz, 1775 RPM, 260/130 Amps

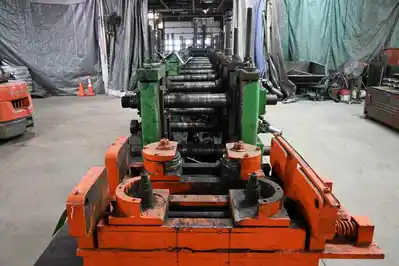

Entry Guide
Shaft Driven Gearbox Stand
OVERALL DIMENSIONS: 25′ x 5′ x 7′ 5″
APPROXIMATE WEIGHT: 19,000 Lbs (Rollformer), 15,000 Lbs (Gearbox Stand)
LOCATION: Universal Warehouse, Perrysburg, Ohio
EQUIPPED WITH: 100 HP AC Motor – 220/440V, 3 Ph, 60 Hz, 1775 RPM, 260/130 Amps Entry Guide Shaft Driven Gearbox Stand
