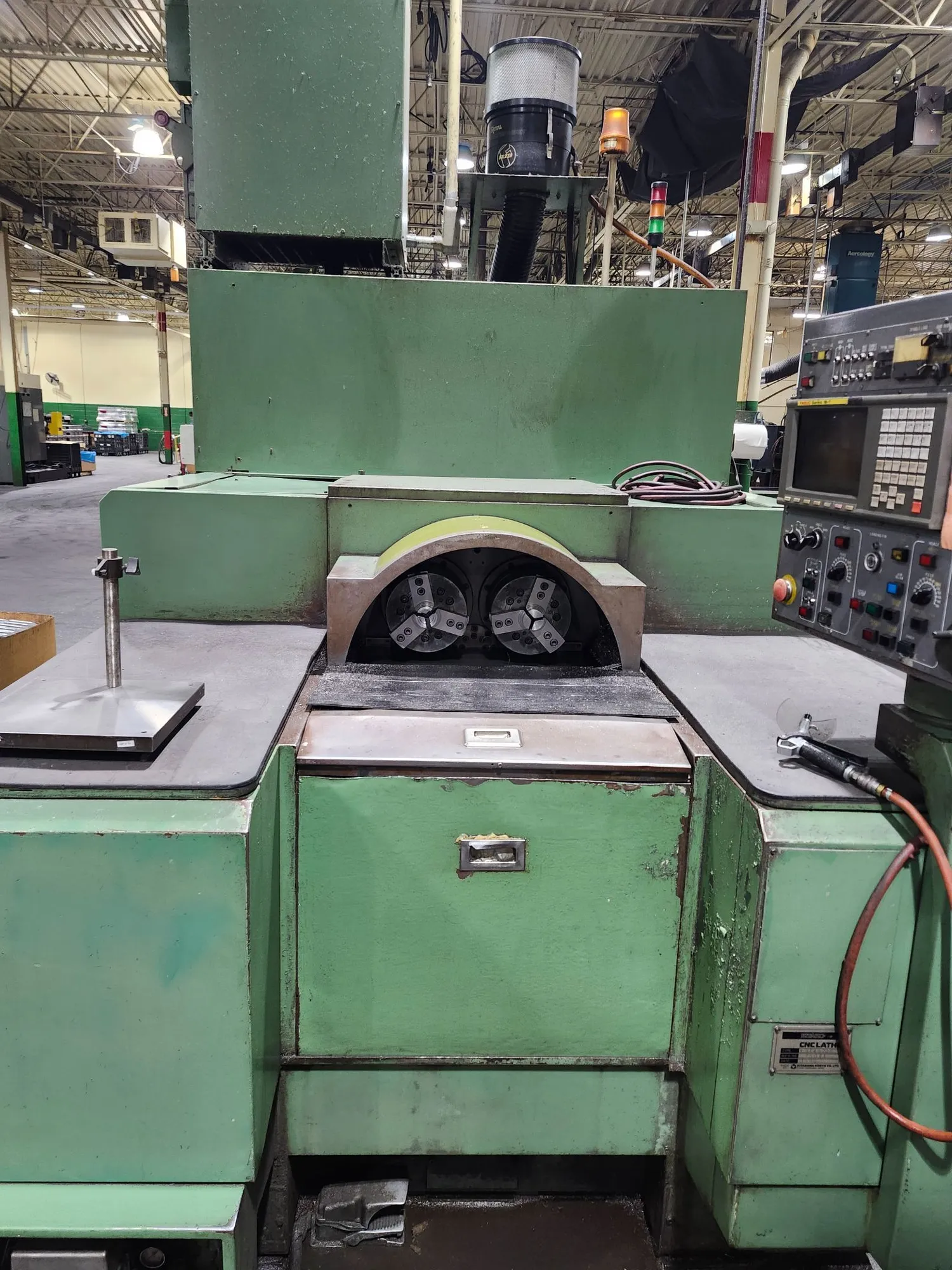

Kitako MT4-200 Multi Spindle CNC Turning Center with Fanuc 18i-T Control, 4 Spindles, Dual Turrets, 8" 3-Jaw Chucks, Chip Conveyor, Royal Filtermist, and Transformer
| Swing | 8.3" | 210.82 mm |
| Machining Length | 6.3" | 160.02 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 1.56" | 39.624 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 7.9" | 200.66 mm |
| Tailstock | 'No' | 'No' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (Fanuc 18i-T) | CNC (Fanuc 18i-T) |
| Dimensions | 106" x 78" x 85" | 106" x 78" x 85" |
| Weight | 17,500 LBS | 17,500 LBS |
No. of Spindles.......................4
Max Swing.............................8.3"
Max Turning Length....................6.3"
Max Turning Diameter Left Turret......7.9"
Max Turning Diameter Right Turret.....7.9"
X1 Axis Travel (Left Turret)..........6.69"
X2 Axis Travel (Right Turret).........6.69"
Z1 Axis Travel (Left Turret)..........9.84"
Z2 Axis Travel (Right Turret).........9.84"
C Axis Indexing.......................0.001°
Spindle Motor.........................20 HP
Spindle Nose..........................A2-6
Spindle Bore..........................1.97"
Max Bar Capacity Main Spindle.........1.56"
Spindle Speed.........................4,000 RPM
Rapid Traverse X1, X2 Axis............945 IPM
Rapid Traverse Z1, Z2 Axis............787 IPM
Left Turret Capacity..................8 Stations
Right Turret Capacity.................8 Stations
Machine Dimensions....................106" x 78" x 85"
Machine Weight........................17,500 LBS
Fanuc 18i-T CNC Control
4-Spindles with 8" Chucks
Dual Turret
Chip Conveyor
Royal Filtermist Mist Collection
Transformer
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
