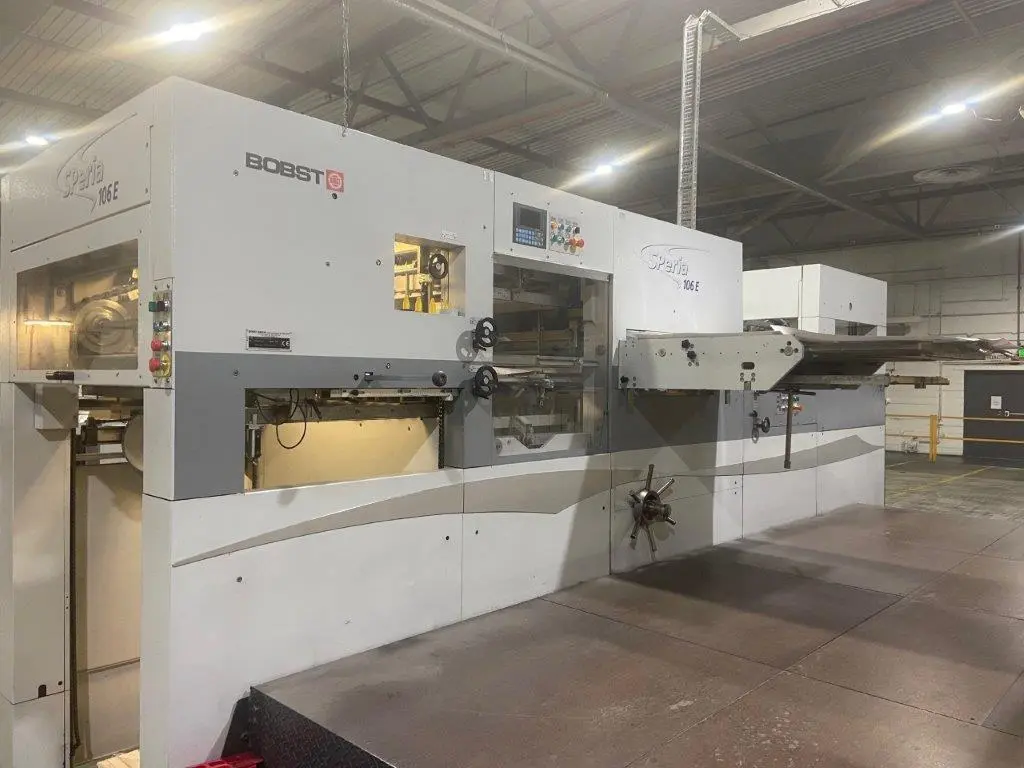

USED BOBST Die Cutters – 102, 104, 105, 106 & Large-Format Packaging Systems
Overview
General availability of Bobst automatic die cutters for folding carton, packaging, commercial print, and corrugated applications, including popular models such as SP 102, SP 104/104E, SP 105, SP 106, and larger-format Bobst die cutting systems. These machines are known worldwide for their accuracy, speed, durability, and ability to handle a wide range of paperboard and packaging substrates.
Typical configurations include optical register systems, quick-lock chase changers, stripping and blanking sections, CUBE controls, optical or mechanical side-lay systems, chase loaders, Bernoulli sheet-handling systems, and tooling packages.
Bobst die cutters remain the gold standard in the packaging industry for medium- to high-speed carton production.
Specs
BOBST – AUTOMATIC DIE CUTTING SYSTEMS
Models: SP 102, SP 104, SP 105, SP 106, Large-Format SP-Series
Application: Folding carton, packaging, commercial print, corrugated
TYPICAL SPECIFICATIONS (VARIES BY MODEL)
-----------------------------------------------------
Max Sheet Size: ~720 x 1020 mm (SP102 series)
~740 x 1040 mm (SP104)
~760 x 1050 mm (SP105)
~760 x 1060 mm (SP106 / Panthera 106)
Min Sheet Size: ~350 x 400 mm (model dependent)
Speed Range:
- ~7,500 – 9,500 sheets/hour depending on model & year
Cutting Force:
- Approx. 200–260 tons (model dependent)
Substrate Range:
- Paperboard: 70 g/m² and up
- Solid board: up to ~1000 g/m²
- Corrugated board: up to ~2 mm
STANDARD FEATURES
-----------------------------------------------------
Optical lateral register system
Centerline system for fast makeready
Quick-lock chase systems
Chase changer & chase loader
Micrometric cutting-pressure adjustment
Bernoulli sheet-handling
CUBE control/automation package
Non-stop feeder & non-stop delivery (on many units)
STRIPPING / BLANKING
-----------------------------------------------------
Stripping unit with quick-lock frames
Blanking section (depending on configuration)
Tooling sets for stripping & blanking
APPLICATIONS
-----------------------------------------------------
Folding cartons
Consumer packaging
Pharmaceutical cartons
Cosmetic packaging
Commercial print die cutting
Corrugated / microflute packaging components
NOTES:
Specifications vary by model and year—confirm substrate thickness, tooling,
stripping/blanking configuration, and automation features per machine.
Equipped With
• Models: SP 102, SP 104, SP 105, SP 106, large-format SP-series
• Automatic platen die cutting system
• Optical lateral register / optical side-lay
• Quick-lock cutting chases
• Chase changers / chase loaders
• Centerline tooling alignment
• Compensating plate with micrometric adjustment
• Stripping and blanking units with quick-lock frames
• Bernoulli sheet-handling system
• CUBE control/automation systems
• Non-stop feeder and non-stop delivery (on many lines)
• Tooling packages for cutting, stripping, blanking
• Suitable for paperboard, cartonboard, and corrugated materials
