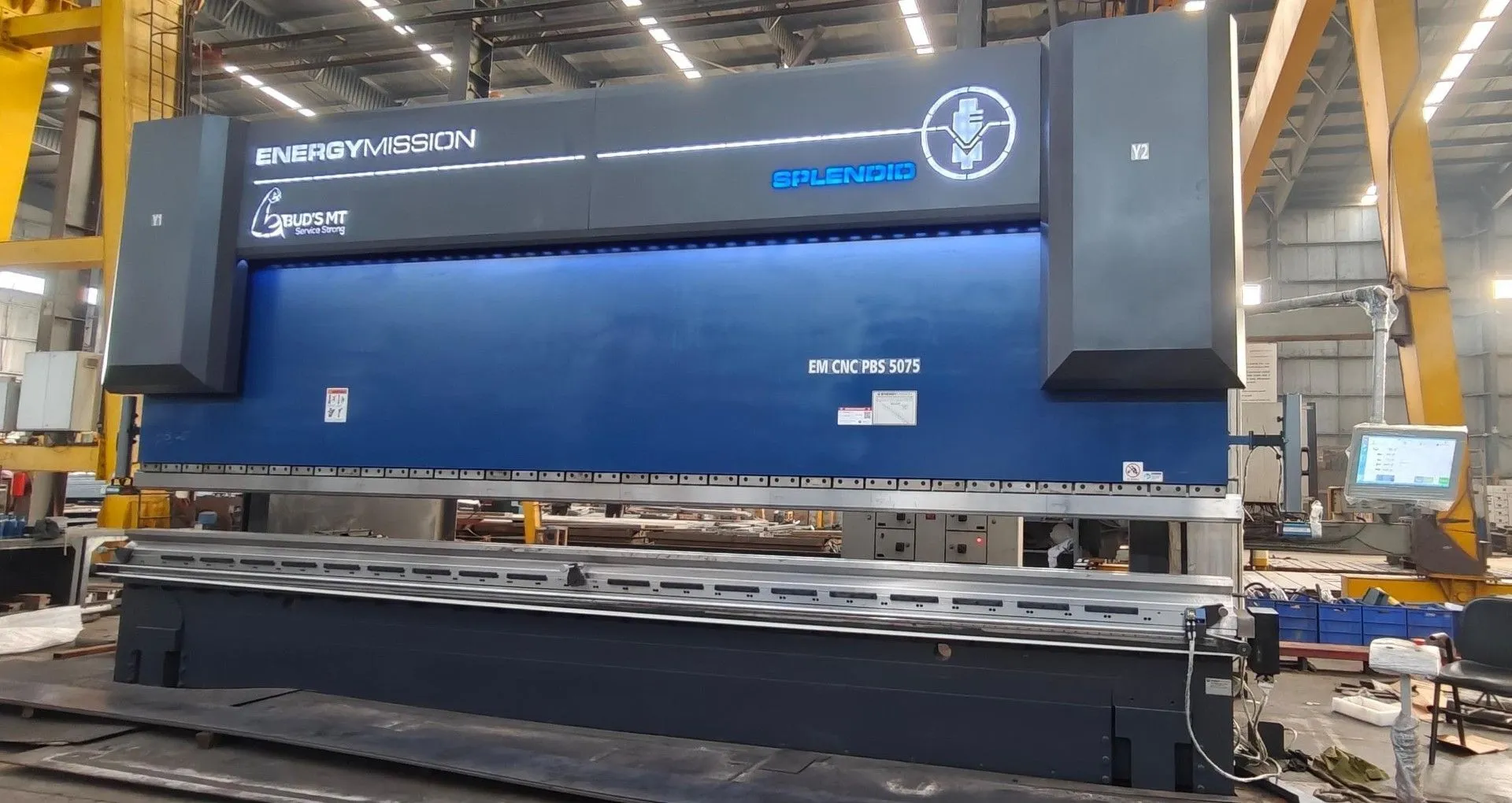

NEW ENERGY MISSION PBS 5075

Bending Force 550 US tons
Bending Length 25’
Clear Pass 21'
Open Daylight 23.62"
Ram Stroke 14.76"
Table Size 10" x 25'
Throat Depth 21.65”
Close Height 8.85"
X-Axis Travel 23.62"
Dimensions 26'L x 11'W x 14'H +PIT

Servo Drive Motor for Hydraulic Power Pack Included
Front Cylinder Design Included
Selection of Auto, Inch & Single Cycle Auto thru screen Included
Servo Hydraulics from Atos/Hawe for Y1-Y2 control Included
Linear guided type press brake scale for Y1-Y2 axis position measurement Included
AC servo drive for X axis control Included
X-Axis Servo Back Gauge Included
Back gauge assembly includued ball screw drive unit, rotary encoder & LM guides Included
Extra Upper Tooling Beam allowing Customer to us other tooling and Clamps Included
Sliding sheet support (2 Nos Mounted on L.M. Guides Included
Manual Crowing
