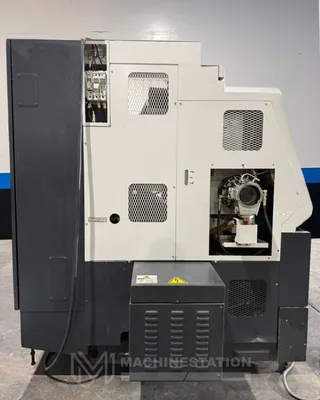

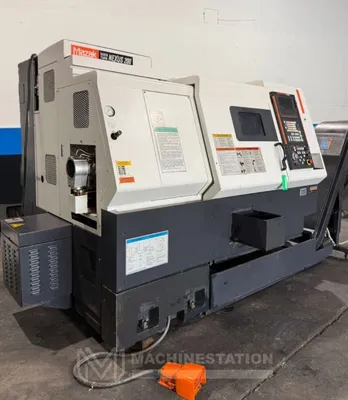

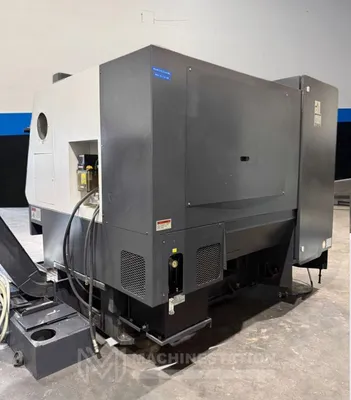

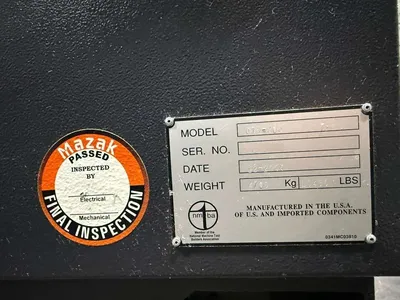

USED 2005 MAZAK QUICK TURN NEXUS 200
Overview
Specifications
| Swing | 24.02" | 610.11 mm |
|---|---|---|
| Machining Length | 20.16" | 512.06 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol 640T Nexus CNC Control) | CNC (Mazatrol 640T Nexus CNC Control) |
| Dimensions | 137″ X 80″ X 80″ High Approx. | 137″ X 80″ X 80″ High Approx. |
| Weight | 11,000 lbs. Approx. | 11,000 lbs. Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

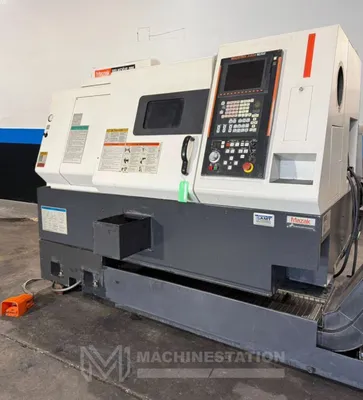

Mazatrol 640T Nexus CNC Control
Rigid Tapping
Automatic Lubrication System
Coolant System
Capacity:
Max Turning Diameter : 13.78″
Max Turning Length : 20.16″
Max Swing Over Bed: 24.02″
Max Bar Capacity : 2.60″
Travels:
X Axis Travel : 7.50″
Z Axis Travel : 21.13″
Feedrate:
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1299 IPM
Spindle:
Spindle Bore: 3.0″
Spindle Nose: A2-6
Spindle Speed: 5,000 RPM
Spindle Power: 35 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.2 Seconds
Tailstock:
Tailstock Taper: MT-5
Tailstock Quill Diameter : 4.33″
Tailstock Quill Travel : 3.93″
General:

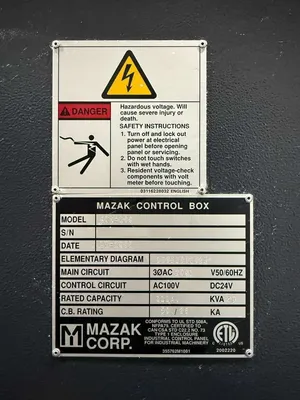

Power Source: 40 kva / 208v / 50/60 Hz / 3-Phase
Overall Dimensions: 137″ X 80″ X 80″ High Approx.
Weight: 11,000 lbs. Approx.
Equipped With

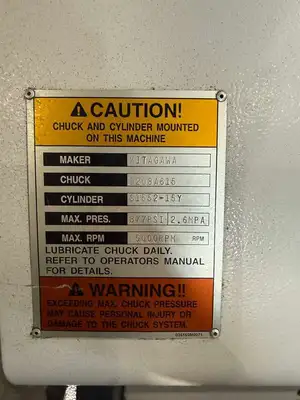

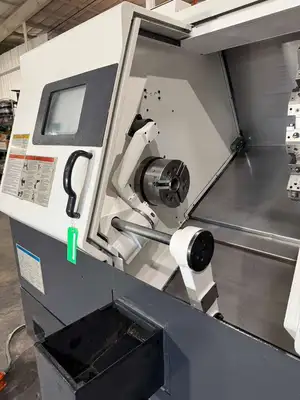

8″ 3- Jaw Kitagawa B208 Chuck
12 Stations Automatic Turret
Automatic Tool Presetter
Parts Catcher
Tailstock
Foot Operated Control for Chuck

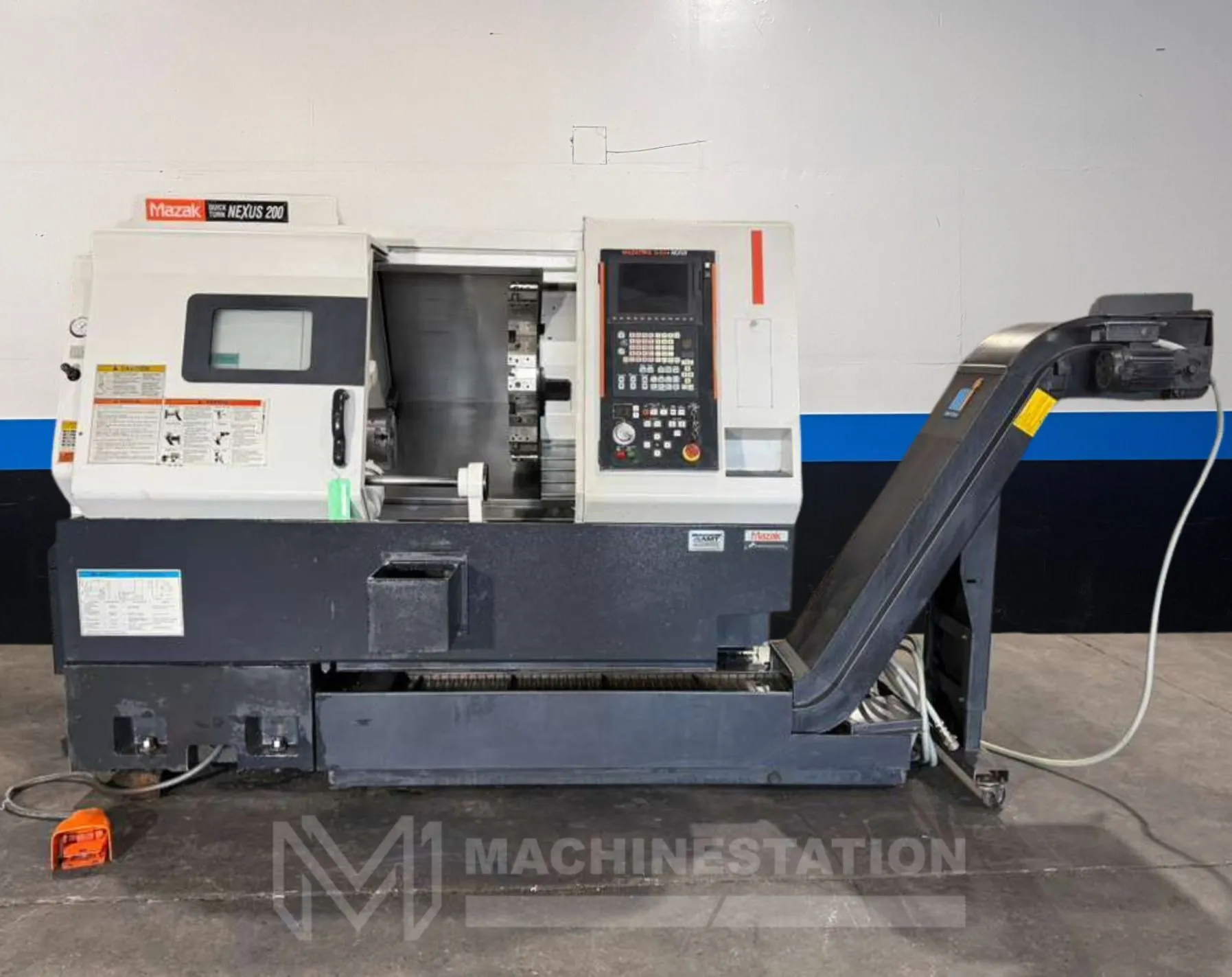

Chip Conveyor
(5) Boring Tool Holders (Mounted on Turret as Shown in the images)
