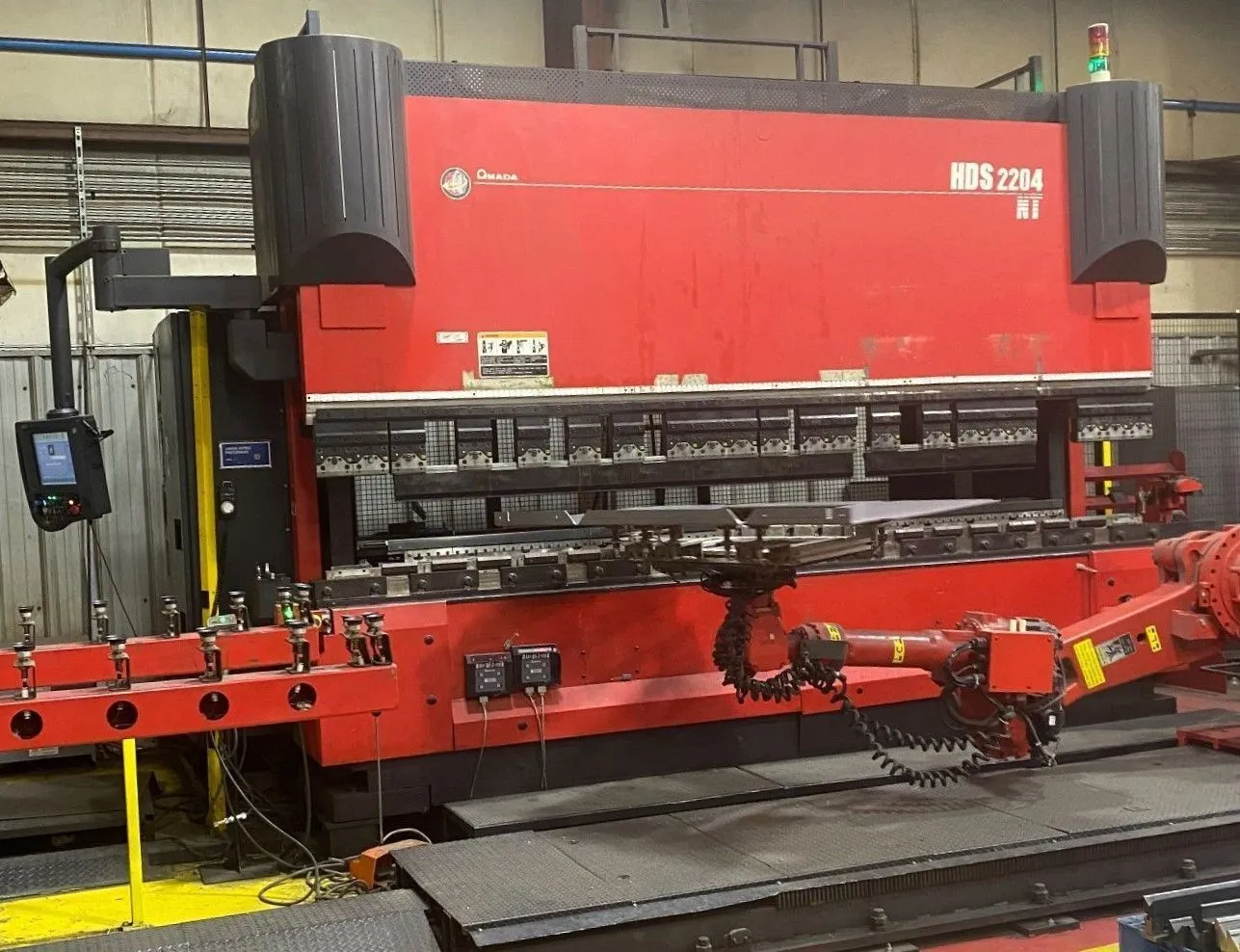

USED 2012 AMADA HDS2204NTW
Overview
240 Ton X 14', Flush Floor, Bend up to 1" Material, Robotic Loader, Available Astro 165W NT Robotic Bending System, Will Bend 1" Material, Will Bend Cold Roll and Hot Roll Steel
Specs
Amada HDS2204NTW CNC Hydraulic Press Brake (2012)
Capacity 243 Ton
Overall Length of Bed 14'
Distance Between Housings 148"
Stroke 9.84"
Open Height 26"
Machine Length (C) 224.8"
Machine Length (D) 126.57"
Approach Speed 7.87 IPS
Bending Speed 0.78 IPS
Power Requirement 99 Amps @ 200 Volts
Hydraulic Oil Capacity 33.4 Gallons
Dimensions 13' x 7' x 128" x 53550 lbs
Astro 165W Structure (A=Travel Axis) Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity 364 Lbs (Includes Hands)
Max. Parts Size (Astro) 59˝ x 118˝ (157˝ on HDS 2204 NT)
Min. Parts Size (Astro) 5.9˝ x 5.9˝
Thickness (Astro) 0.024˝– (0.236˝ with Special Hands)
Power Requirement (Astro) 6 KVA
Positioning Accuracy (Astro) ±0.0027˝ (Robot), ±0.0078˝ (Axis)
Robot Weight(Astro) 3,400 Lbs
Flush Floor
Equipped With
Control Amada AMNC Control
Astro 165W NT Robotic Bending System S/n 16500019
Astro 165W NT Structure (A=Travel Axis) Vertical 6-Axis Multi-Joint Type + Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity 364 Lbs (Includes Hands)
Max. Parts Size (Astro) 59˝ x 118˝ (157˝ on HDS 2204 NT)
Min. Parts Size (Astro) 5.9˝ x 5.9˝
Thickness (Astro) 0.024˝– (0.236˝ with Special Hands)
Power Requirement (Astro) 6 KVA
Positioning Accuracy (Astro) ±0.0027˝ (Robot), ±0.0078˝ (Axis)
Robot Weight(Astro) 3,400 Lbs
Will Bend 1" Material
Will Bend Cold Roll and Hot Roll Steel
Flush Floor
