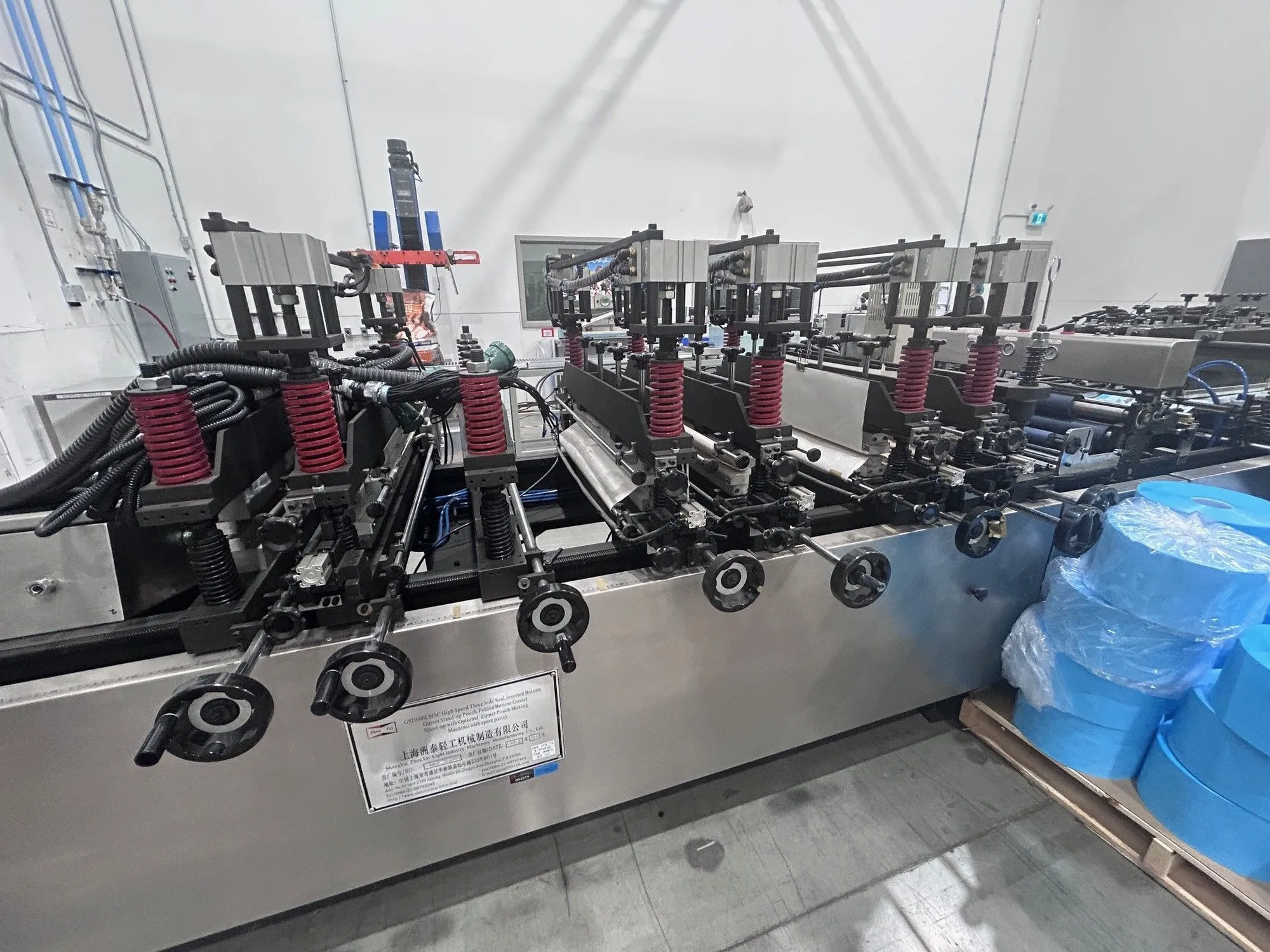

USED 2016 ZHOU TAI GSD 600 LMSC pouch machine
Overview
Description
2016 ZHOU TAI GSD 600 LMSC, a used high-speed pouch machine, perfect for producing 3-side seal stand-up pouches with an inserted bottom gusset. Optional zipper feature included.
Specifications
Zhou Tai
GSD 600 (third generation) LMSC high speed 3 side seal inserted bottom gusset stand up pouch with folded bottom gusset and optional zipper pouch making machine
380v 3 ph 60 hz
see attached spec sheet for all technical details.
max pouch length 300 mm
maax pouch width 600 mm
line speed 45m/min
cycle speed:
3 side seal: up to 200 cpm
Stand up pouch: up to 150 cpm
Stand up pouch (folded) with zipper: upto 120 cpm
main servo 3.5KW
total power 58 KW
machine weight: 9000 kg
approximate footprint 13.5m long x 2.5m wide x 1.9m high
Unwind:
800mm diameter
web width 1250mm
3" Cores
unwind gusseter by Silstar August 2025
