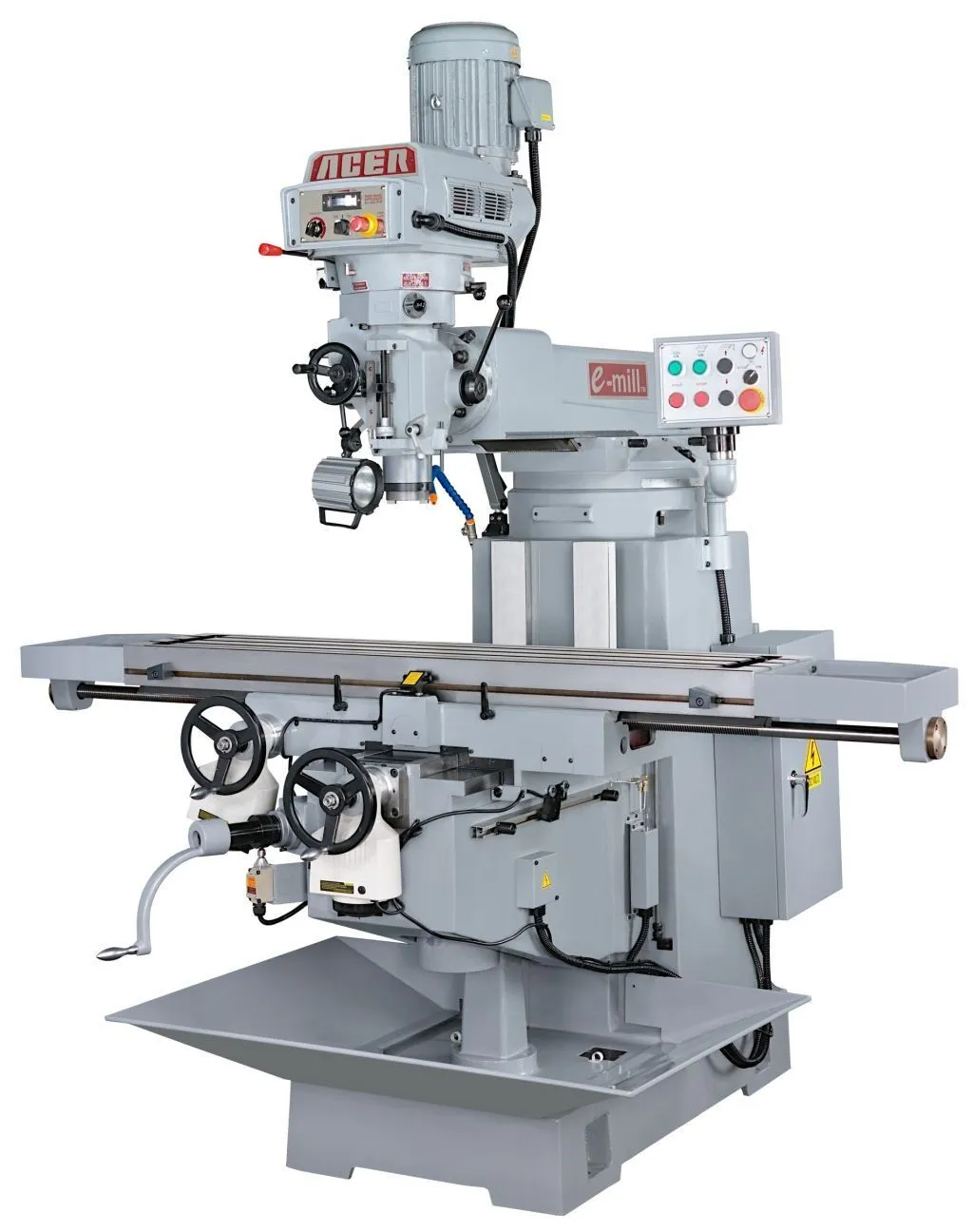

NEW ACER E-MILL 3VK

Specifications:
Table:
• Working surface..........50" x 10"
• Longitudinal travel..........34"
• Cross travel..........16"
• Vertical knee travel..........16"
• Ram travel..........20"
• T-slot number, size..........3, 5/8"
Head:
• Main motor..........3 HP
• Head moves right to left..........90°
• Head tilts front to back..........45°
Spindle:
• Spindle drive..........Variable
• Spindle speed..........60 ~ 4,500
• Spindle taper..........R-8
Quill:
• Power quill feeds (In / Rev.)..........0.0015", 0.003", 0.006"
• Quill diameter (Chromed).........3.375"
• Quill travel..........5"
• Weight approximated..........3,050 lbs

Features:
• 3 HP spindle inverter motor.
• Fan cooling system dissipates heat efficiently.
• Hand-scraped contact surfaces between turret and column.
• MEEHANITE casting.
• Top brand “FUJI” or equivalent A.C. frequency inverter drive.
• Turn-in the hand handle.
• Protective automotive paint ensures life-long appearance.
• Dish-in coolant base.
• 3 HP variable speed from 60 to 4,500 RPM.
• One piece quill pinion & shaft.
• Extra oiler lubricates the quill in its housing.
• Precision hardened & ground knee axis to HRC 52.
• Table surface is HRC 52.
• All lead screws are ground finished.
• Dovetail ways of X and Y axes are hardened and ground.
• Chrome plated chip guards.

Optional accessories:
• Newall DRO (2-axis, 16" x 36" travel, 0.0002" res. scale)
• Longitudinal/cross/knee power feed
• "Servo" longitudinal feed (M-9121-140/M-9108-150X)
• "Servo" cross feed (M-9521-140/M-9521-150)
• "Servo" knee feed (M-9811-200)
• Installation fee: crossfeed
• Installation fee: knee feed
• 12" rotary table (vertical & horizontal)
• Coolant system (not installed)
• Installation fee for coolant system
• Chip pan (52" x 35" x 6"; 55 lbs)
• Clamping kits (52 pieces)
• R-8 collets (1/8" - 3/4"; 11 pcs/set)
• 6" angle lock milling vise
• Horizontal milling attachment
• Maxi-torque auto-air power draw bar (not installed)
• Installation fee for auto-air power draw bar
• N.S.T. #30 spindle taper (replace R-8 spindle)
• Riser block (4"/6"/8")
• Riser block installation fee
• Upgrade frequency inverter (3 phase, 380V - 520V)
• Upgrade to UL conformity electric cabinet
• Halogen or LED-L95 work light
