NEW 2013 VICTOR TAICHUNG VTURN 40/220
Overview
Description

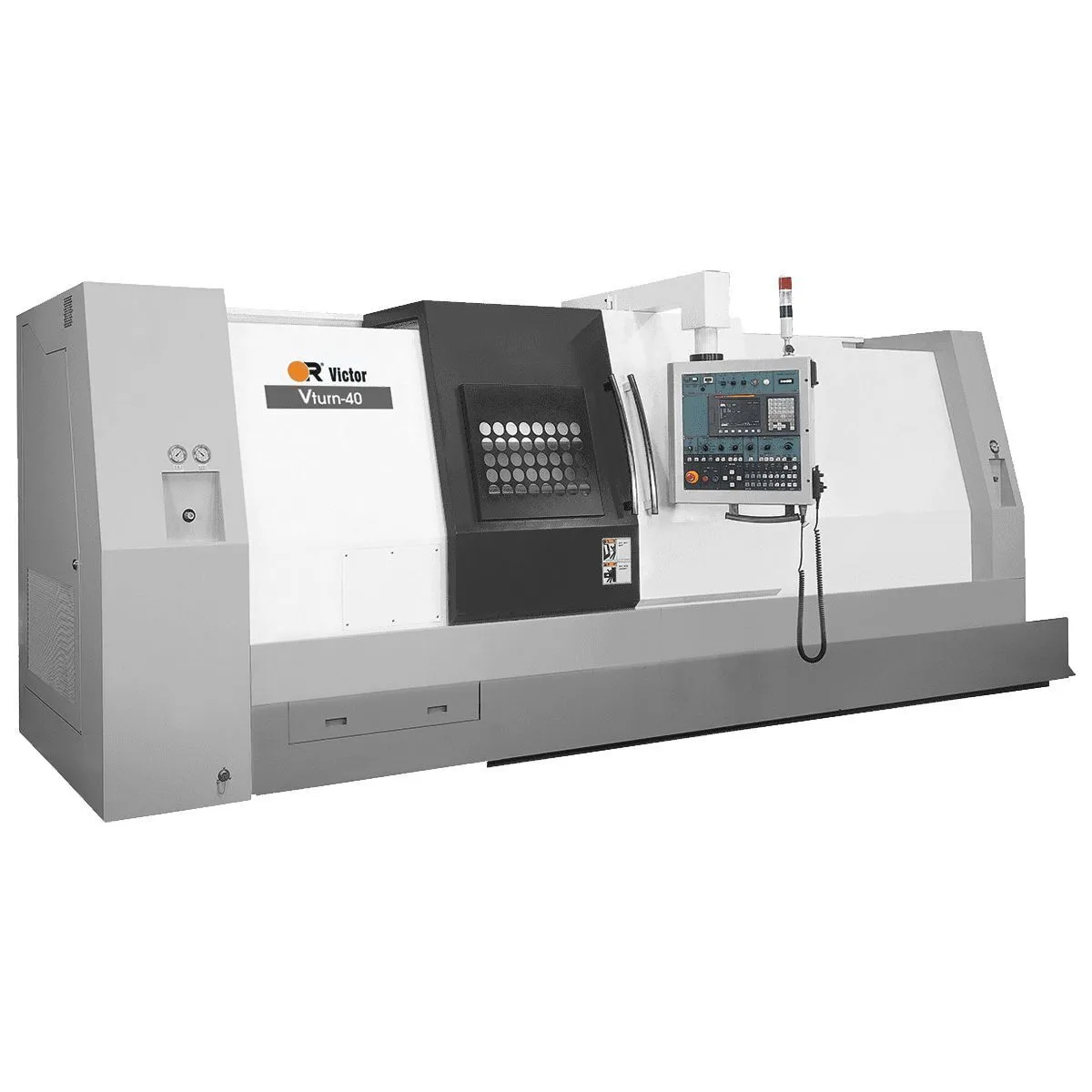

2013 VICTOR Taichung Model VTURN 40/220 CNC LATHE
The Victor Vturn-40/220 is a robust CNC lathe known for heavy cutting, featuring a large 620mm max turning diameter, 2275mm turning length, an A2-11 spindle nose, 105mm spindle bore (or 90mm), 15" hydraulic chuck, Fanuc control, and powerful 30/37/45kW spindle motor for high torque. Key specs include a 10-station turret, 91mm bar capacity, 45-degree slant bed for rigidity, and heavy-duty box slideways for stability, suitable for demanding turning applications.
Specifications
| Swing | 30.7" | 779.78 mm |
|---|---|---|
| Machining Length | 89.57" | 2,275.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 3.58" | 90.932 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 24.4" | 619.76 mm |
| Control | CNC (FANUC) | CNC (FANUC) |
| Weight | 34,,170 lbs | 34,,170 lbs |
Key Specifications:
Max Turning Diameter: 620 mm (24.4")
Max Turning Length: 2275 mm (89.56")
Swing Over Bed/Carriage: 780mm / 620mm (30.7" / 24.4")
Spindle Nose: A2-11
Spindle Bore: 105 mm (or 90mm)
Bar Capacity: 91 mm (3.58")
Spindle Motor: 30/37/45 kW (Cont/30min/15min)
Max Spindle Speed: 2500 RPM
Control System: Fanuc ( 0i-TC)
Turret: 10-Station
Tool shank size mm 32
Max. boring bar dia. mm 50
Exchange time (T-T) sec 1
Tailstock: Quill dia. 150mm, Quill taper MT5
Bed: 45-degree slant bed for rigidity
Additional Features:
Chuck: 15" hydraulic chuck standard
Axes: X/Z travel with large ball screws (36mm x P8/50mm x P16)
Feed Motors: 4kW (X-axis) / 7kW (Z-axis)
Rapid Traverse: 20 m/min (X/Z)
Dimensions: m 7.1 x 2.7 x 2.2
Weight: Approx. 15,500 kg (34,170 lbs)
Equipped With
Heavy cutting lathe with spindle nose A2-11 for turning length from 1250mm to 4250mm.
Bar capacity 91mm, Spindle speed 2500rpm.
Single piece cast slant bed (45-degree) for minimum distance from ball screw to the tool tip
Spindle bore A2-11 with hydraulic chuck 15” (opt. 12”)
Genuine 45∘one piece slant bed for maximal structure rigidity
Large ballscrew diameter in Z-axis: 50mm Vturn-40/125 & Vturn-40/220, 63mm for Vturn-40/325, 70mm for Vturn-40/425
