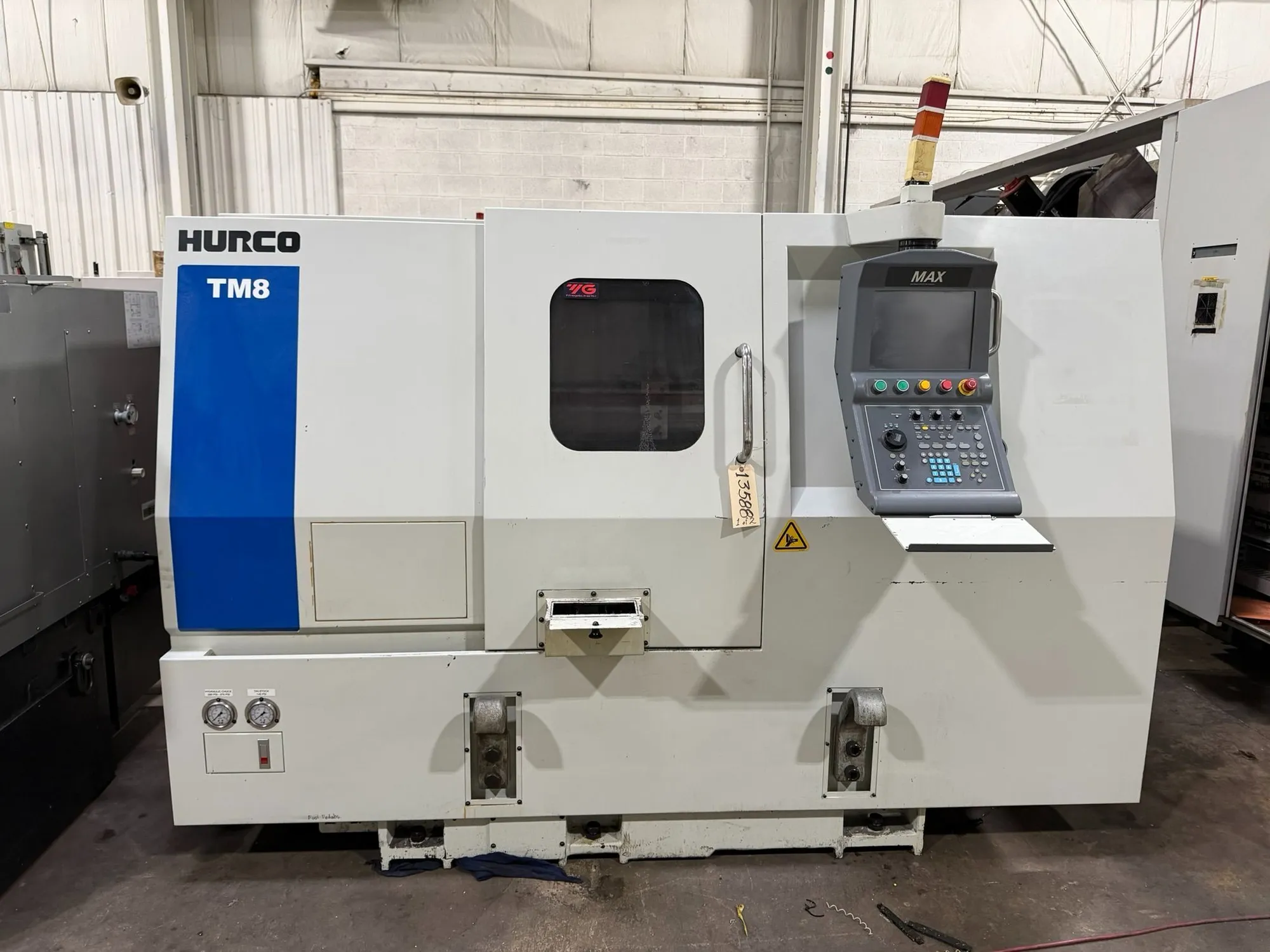

HURCO TM8 2-AXIS CNC LATHE TURNING CENTER, NEW 2012 8"3-JAW CHUCK,
10 POSITION TURRET, TAILSTOCK, CHIP CONVEYOR, WIN MAX CNC CONTROL
| Swing | 23.5" | 596.9 mm |
| Machining Length | 18.8" | 477.52 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 19 hp | 14.2 kW |
| Max RPM | 4,800 RPM | 4,800 RPM |
| Turning Dia | 12" | 304.8 mm |
| Tailstock | Yes | Yes |
X-axis travels 8″
Z-axis travels 20″
Max turning length 18.8″
Max turning diameter 12″
Swing over bed 21.6″
Swing over cross slide 11.8″
Distance between centers 27.9″
Chuck size 8”
Spindle bore 2.4”
Spindle speed 4,800 Rpm
Spindle motor 15 Hp
Bar capacity 2.0”
Turret positions 10
Electrics 230 V; 3 Ph; 60 Hz
Approx weight 8,500 Lbs.
Approx dimensions (l x w x h) 116″ x 91″ x 80″
WinMax CNC Control
Conversational Programming
Tailstock
10 Position Tool Turret
8” 3-jaw chuck
Chip conveyor
misc tool holders
