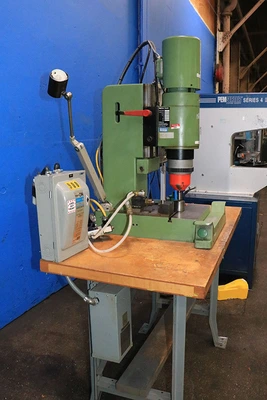

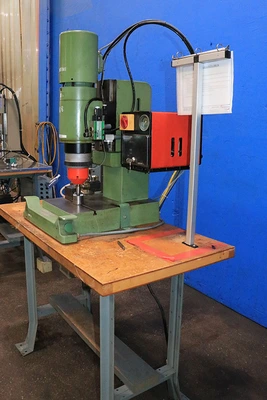

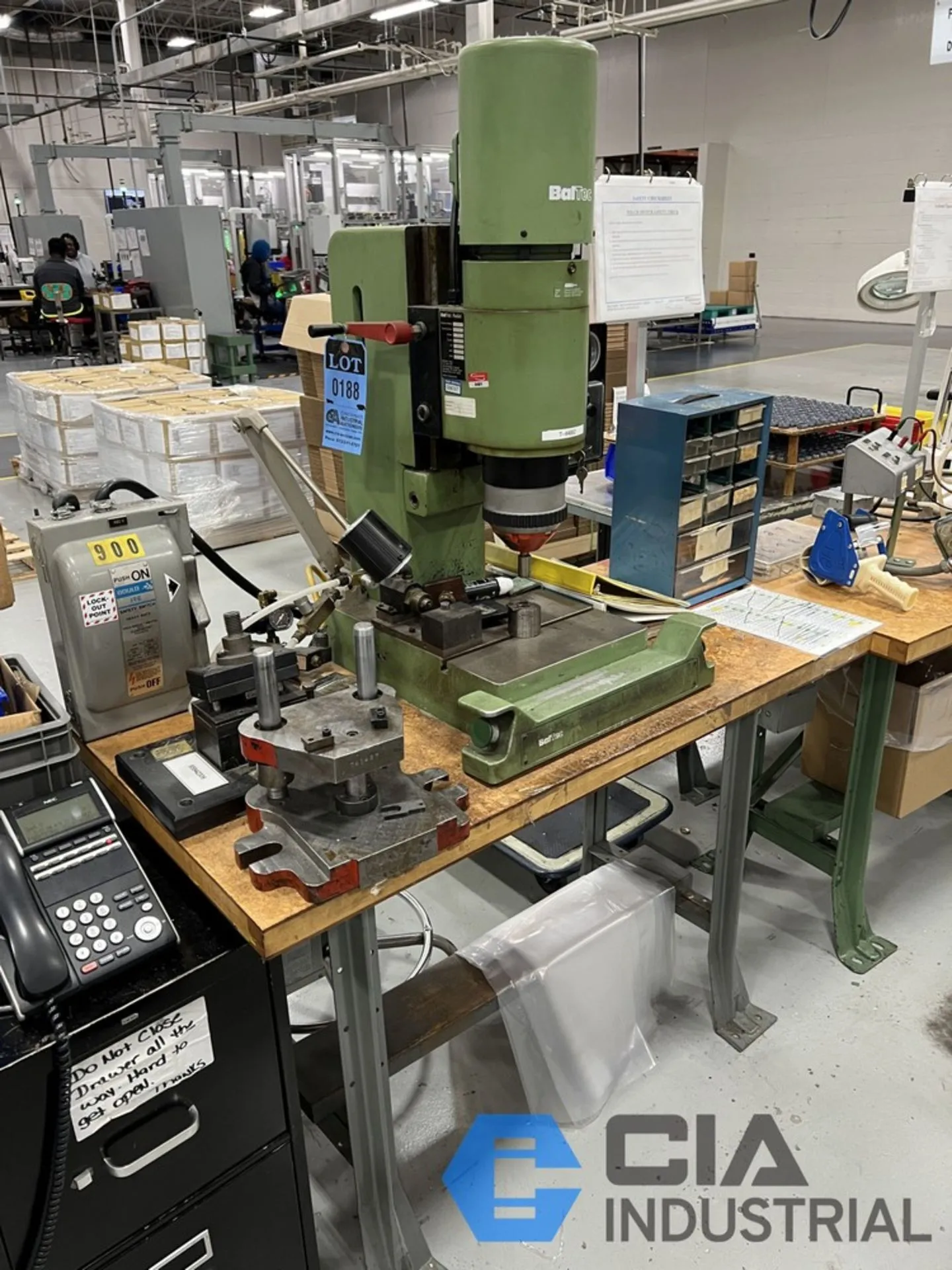

USED 1990 Baltec RN-280

0.5" Rivet Cap Baltec RN-280 RIVETER

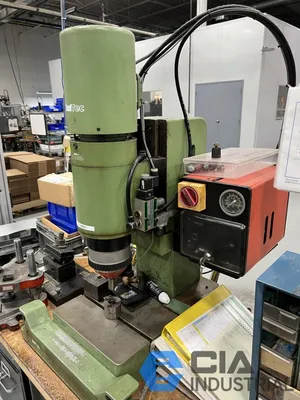

BALTEC RADIAL RIVETING MACHINE

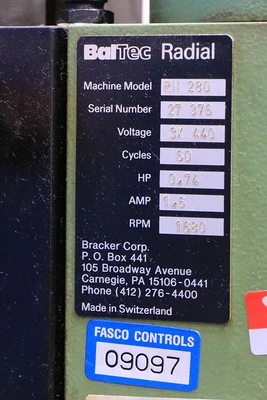

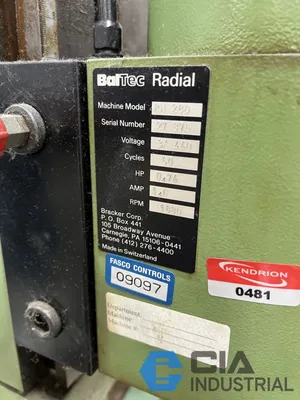

MODEL RN-280     S/N 27376     NEW 1990

SHANK DIAMETER ....................... 1 - 12 mm

RANGE (1010 STEEL) ................... .04 - .5"

MAXIMUM DOWNFEED FORCE ............... 3800 @ 88 psi

                                       PNEUMATIC

STROKE LENGTH RANGE .................. 5 - 40 mm

                                       .2" - 1.57"

TABLE SIZE ........................... 12-5/8" X 12"

MOTOR HP @ 1700 RPM .................. 3/4

OPERATING VOLTAGE .................... 3 x 440 V

CFM @ 80 psi, MAX STR, 10 SEC CYCLE .. 2.5"

DIMENSIONS: 23″(L-R) x 29″(F-B) x 33″(H)

MACHINE WEIGHT (NOT CRATED) .......... 375 LBS.

COMPLETE WITH:

-RIVETING CAP. FROM .040" TO .5" (STEEL RIVETS, APPROX.

52,000 PSI TENSILE STRENGTH)

-3-PHASE SPINDLE MOTOR, 3/4 HP / 440 VOLT

-MAXIMUM 85 PSI AIR PRESSURE

-MICROMETER SPINDLE STROKE ADJ. FROM .2 - 1.575"

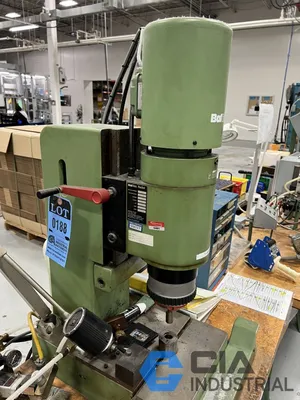

-RUGGED CAST IRON COLUMN, w/EASY COURSE ADJ. HANDLE

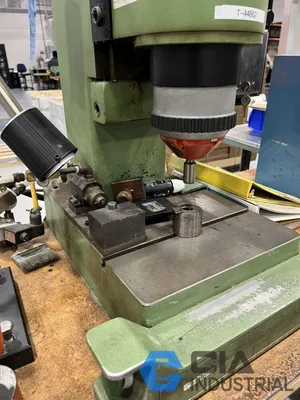

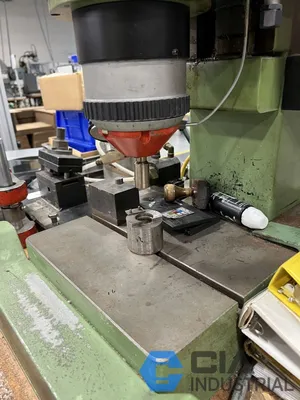

-PRECISION GROUND BASE w/T-SLOT AND PRECISION REAMED

CENTERING HOLE, ALLOWS FOR FAST FIXTURING CHANGES

-SEMI-PERMANENT GREASED SPINDLE DESIGN ELIMINATES

FREQUENTLY SCHEDULED MAINTENANCE.

-ADJUSTABLE STROKE SPEED CONTROL, ALLOWS FOR PRECISE

RIVETING CONTROL

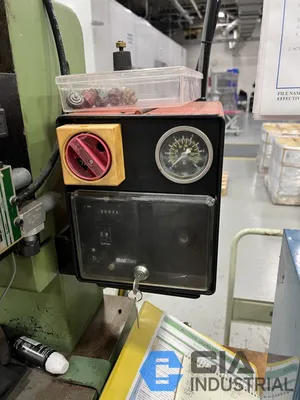

-RC20 CONTROLLER, THAT FEATURES:

 SMALL COMPACT DESIGN, ONLY 8" WIDE, 14" DEEP, 7" HIGH

 LARGE 7 CHARACTER LCD DISPLAY, EASY TO READ

 SOFT TOUCH KEY PAD, FOR EASE OF OPERATION

-MAIN ON / OFF SWITCH

-RESETABLE CYCLE COUNTER, ALLOWS FOR ACCURATE PRODUCTION COUNTS

-AUTOMATIC SELECTION MODES OF MANUAL OR SEMI-AUTOMATIC

MODES, UPON CONTROL START-UP

-MANUAL COUNTDOWN TIMER, GREATLY AIDS MACHINE SET UP

-NON-RESETABLE TOTAL HOUR ACCUMULATOR, HELPS TRACK TOTAL MACHINE USAGE FOR LONG RANGE MAINTENANCE

-MANUAL OR SEMI-AUTOMATIC OPERATING MODES

-RIVETING TIME CONTROL FROM .1 SECOND TO 5.9 SECONDS IN

INCREMENTS OF .1 SECOND.

-OPERATOR "LOCK OUT" FEATURE, MINIMIZES OPERATOR TAMPERING

-BUILT-IN DIAGNOSTIC AND ERROR MESSAGES

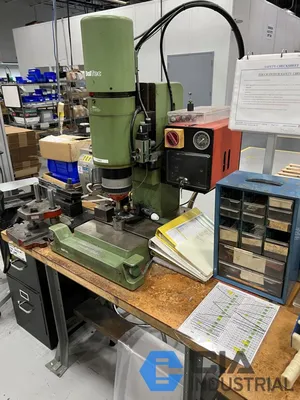

NICELY MAINTAINED MACHINE MOUNTED ON PRIVATE WORK STATION TABLE
