| Power Pack | 40 A | 40 A |
| Table Size-W | 23.5" | 596.9 mm |
| Table Size-L | 15.7" | 398.78 mm |
| X | 14" | 355.6 mm |
| Y | 10" | 254 mm |
| Z | 10" | 254 mm |

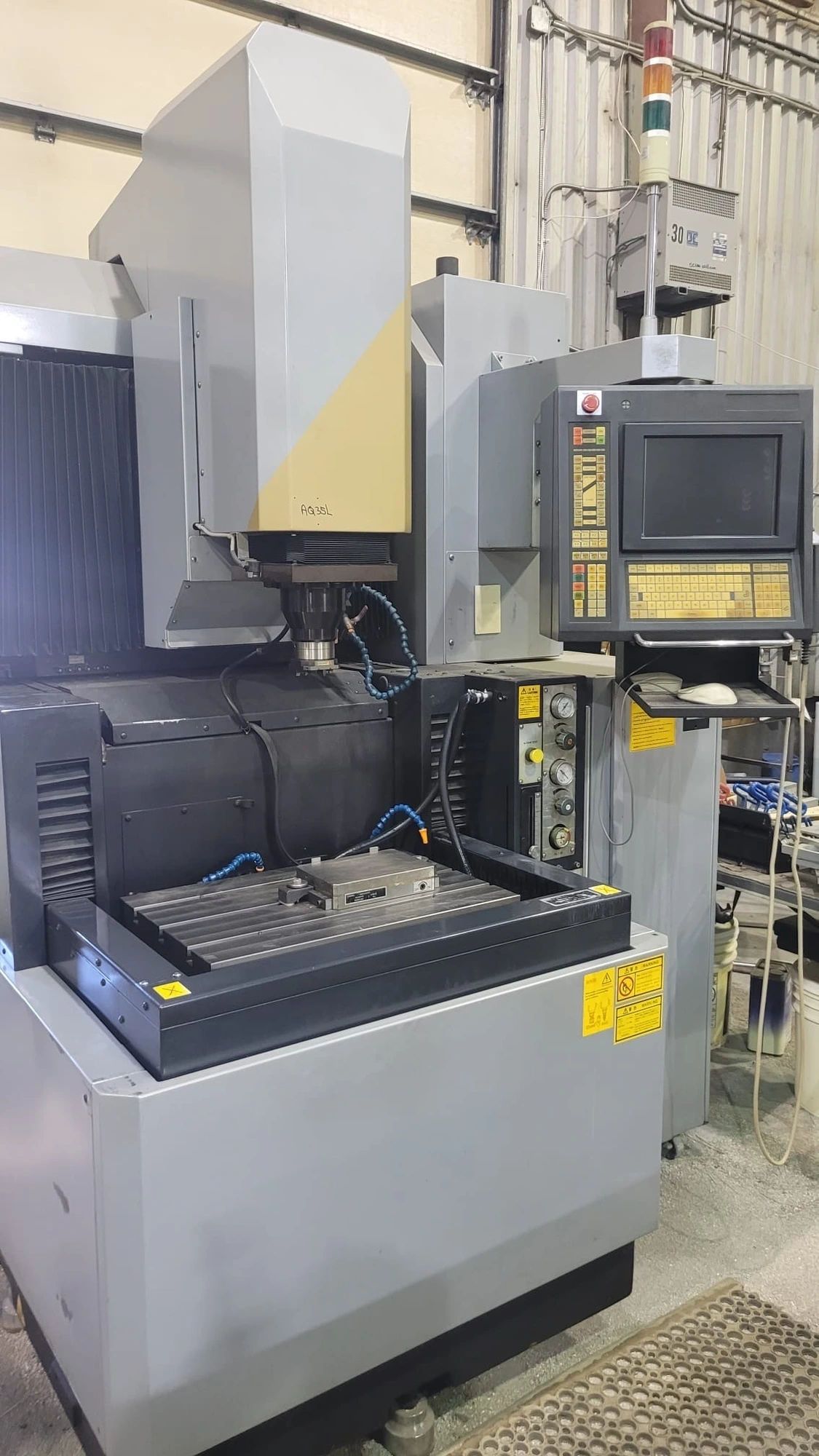

Sodick AQ35L CNC Sinker Type EDM Electrical Discharge Machine (2003)
Max. Workpiece Weight: 1210 lbs
Work Table: 23.55″ x 15.67″
Work Table Mounting: T-Slotted Table
Worktank Dimensions: 30″ x 22″ x 13″
Travels (X x Y x Z): 14.0″ x 10.0″ x 10.0″
Full C Axis: Yes
Chuck and Tooling Type: System 3R Macro
Tool Changer Type: Rack
Tool Changer Capacity: 5
Machine Weight: 11,030 lbs
Machine Size: 69″ x 101″ x 114″ tall
Sodick LQ1 Control
3 Axis Linear Drive
5 Pos Sodick ATC
Auto Drop Tank
