| Power Pack | 40 A | 40 A |
| Table Size-W | 15.74" | 399.8 mm |
| Table Size-L | 23.62" | 599.95 mm |
| X | 13.78" | 350.01 mm |
| Y | 9.84" | 249.94 mm |
| Z | 10.63" | 270 mm |

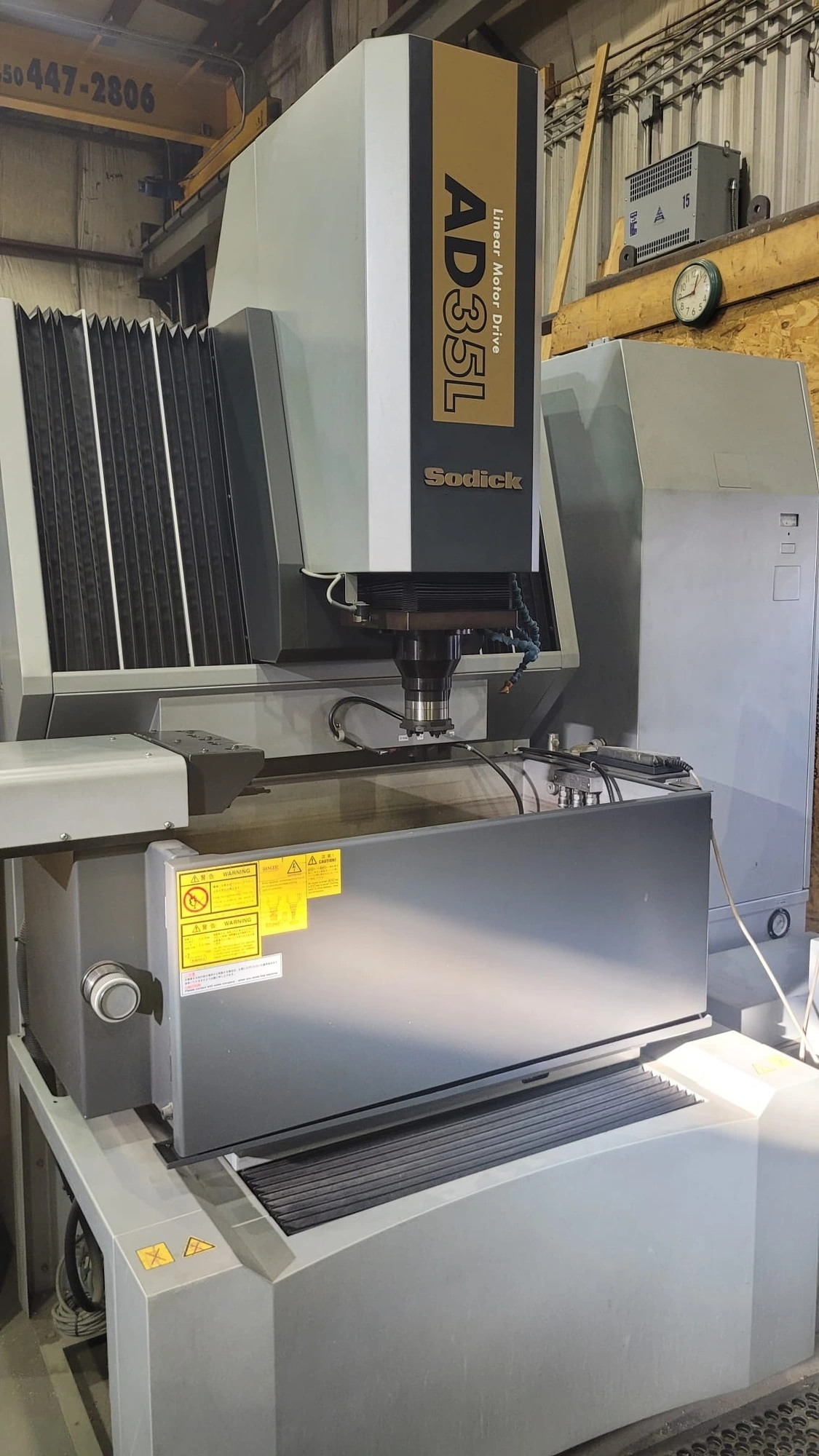

Sodick AD35L CNC Sinker Type EDM Electrical Discharge Machine (2014)
X-Axis Travel
13.78"
Y-Axis Travel
9.84"
Z-Axis Travel
10.63"
Control
Sodick LN2
Tool Changer
4 Position Shuttle
Power Source
40 AMP
Chuck
3R
Power Requirement
200-220/3/60
Worktable Size
23.62" x 15.74"
Worktank Size
38.39" x 21.85" x 13.78"
Fluid Level Min-Max
6.69" - 11.81"
Maximum Workpiece Weight
1,212 Lbs.
Maximum Electrode Weight
110 Lbs.
Work Tank Capacity
47.55 Gallons
Distance From Floor to Table Top
31.89"
Dielectric External Dimensions
32" x 67" x 80"
Machine Dimensions
75" x 77" x 93"
Machine Weight
7,200 Lbs.
