| size | 15" x 11" x 10" | 15" x 11" x 10" |
| X | 15" | 381 mm |
| Y | 11" | 279.4 mm |
| Z | 10" | 254 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | No | No |

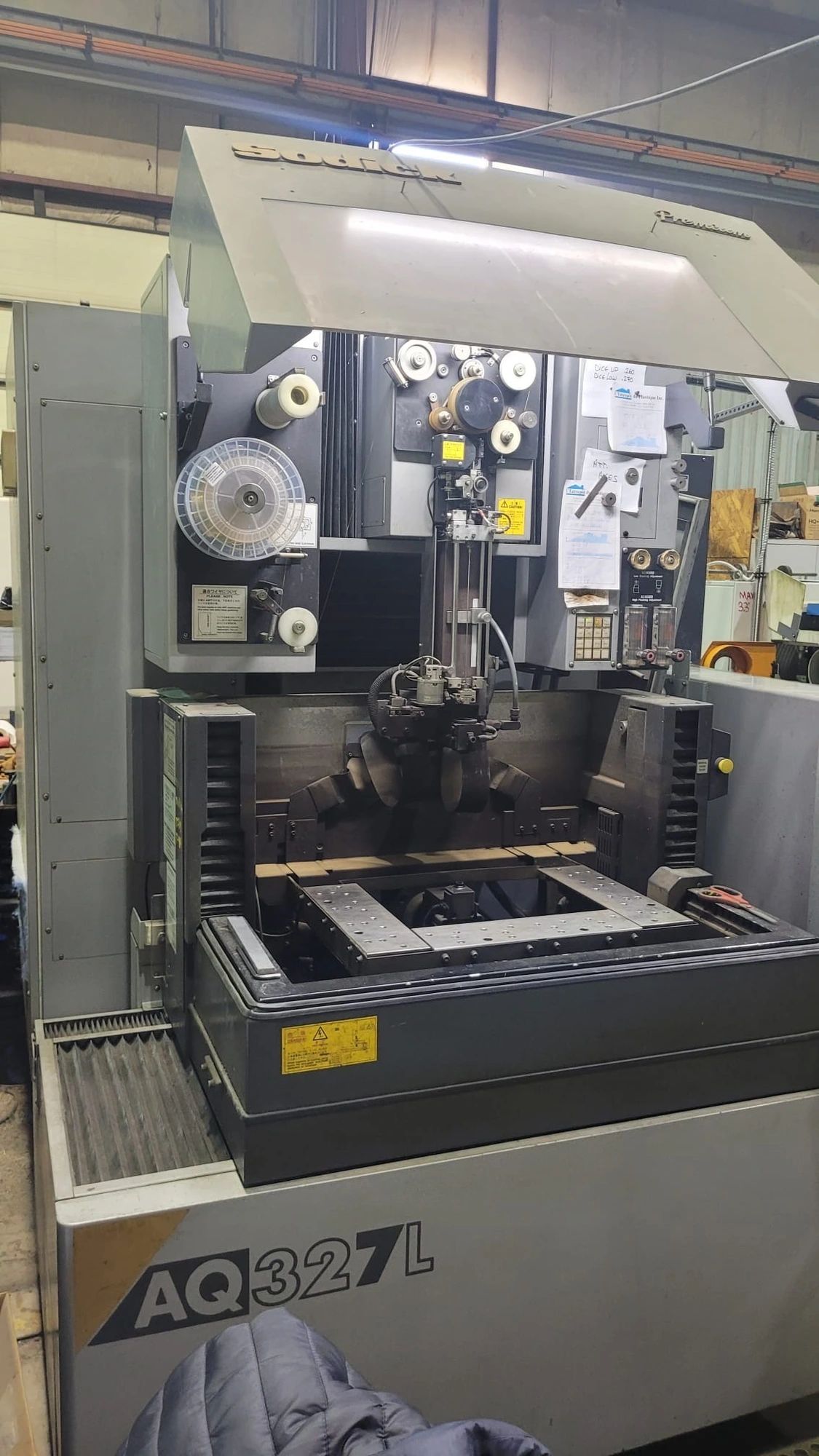

Sodick AQ327L CNC Wire Type EDM Electrical Discharge Machine (2005)
Control: Sodick LQ1W Gold CNC Control
Max Workpiece Size: 22.4" x 16.5" x 9"
Travels (X,Y,Z): 14.57" x 10.63" x 9.84"
UV Travels: 4.72" x 4.72"
Max Workpiece Weight: 1100 Lbs.
Wire Diameter: .006" - .012"
Wire Speed: 16.54" /Second Max
Taper Cut: +/-25 Degrees at 4"
Power Supply Amps: 40 Amps
Inside Tank Dimensions: 34"x 25.4"
Dielectric Fluid Capacity: 600 Litres
