Hole Popper
| Hole-Dia. (Min) | 0.1 mm | 0.0039" |
| Hole-Dia. (Max) | 3 mm | 0.1181" |
| Work-W | 8.25" | 209.55 mm |
| Work-L | 18" | 457.2 mm |
| X | 11.7" | 297.18 mm |
| Y | 7.8" | 198.12 mm |
| Z | 13.7" | 347.98 mm |

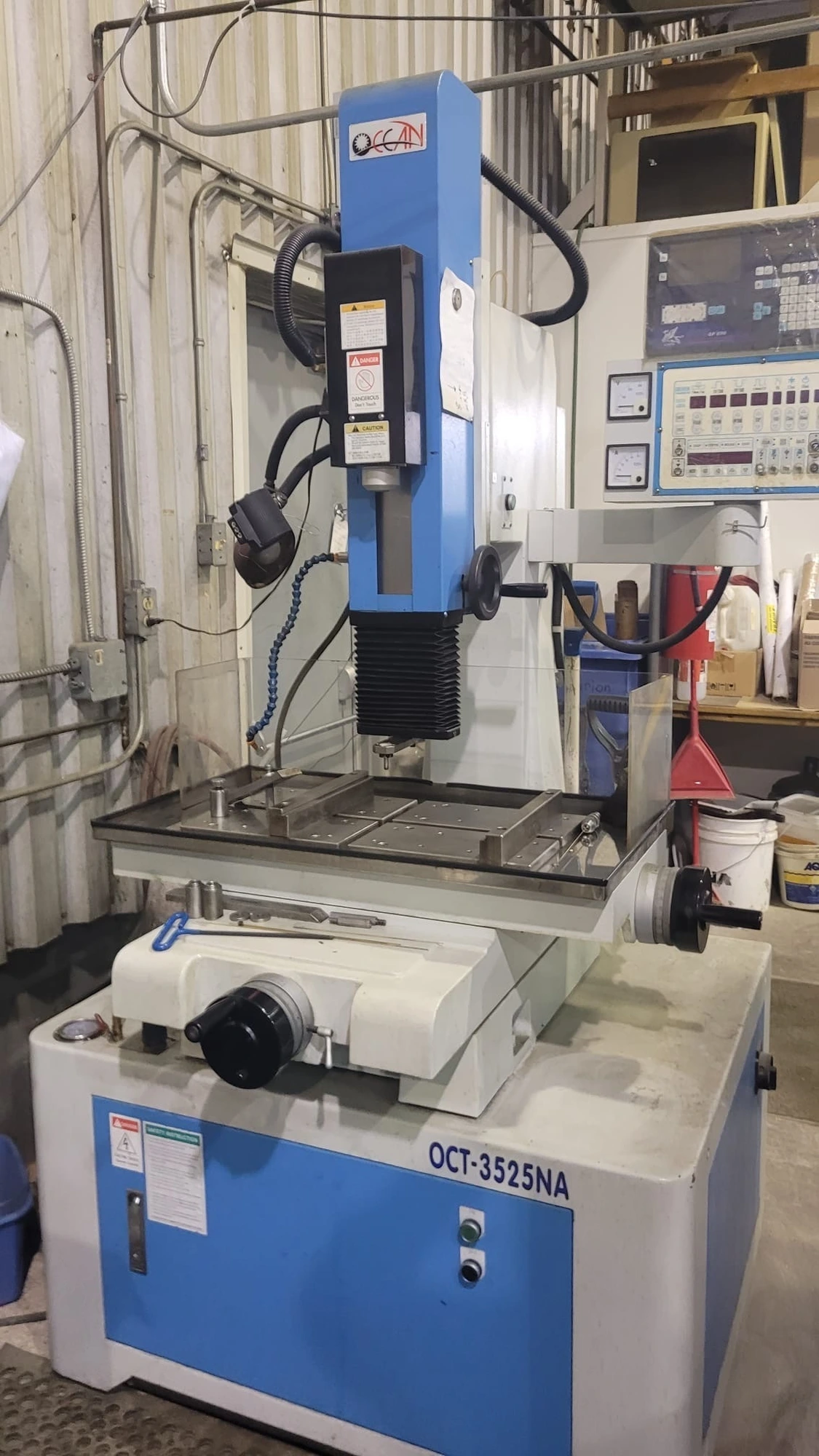

Ocean Technologies OCT-3525NA CNC EDM Electrical Discharge Machine (2010)
Model OCT-3525NA
Table travel (X,Y axes) 350 x 250 mm
Work table size 600 x 300 mm
Z axis travel 350 mm
W axis travel 200 mm
The maximum height of workpiece 330 mm
Max. workpiece weight 250 kgs
Power input
According to local voltage
Maximum average current 32 Amps
Power capacity 3.8 KVA
Electrode diameter 0.1~3.0 mm
Machine net weight 800 kgs
Depth / Width / Height 1100 x 1200 x 2100 mm
