Dake Model 5-150A 150-ton ElecDraulic H-Frame Press, used. Electric operation with 2 HP motor, 220/440V, 3-phase. Features a movable workhead, safety overload valve, and adjustable height. Ram travels 16". 66"x42" base, 95" tall.

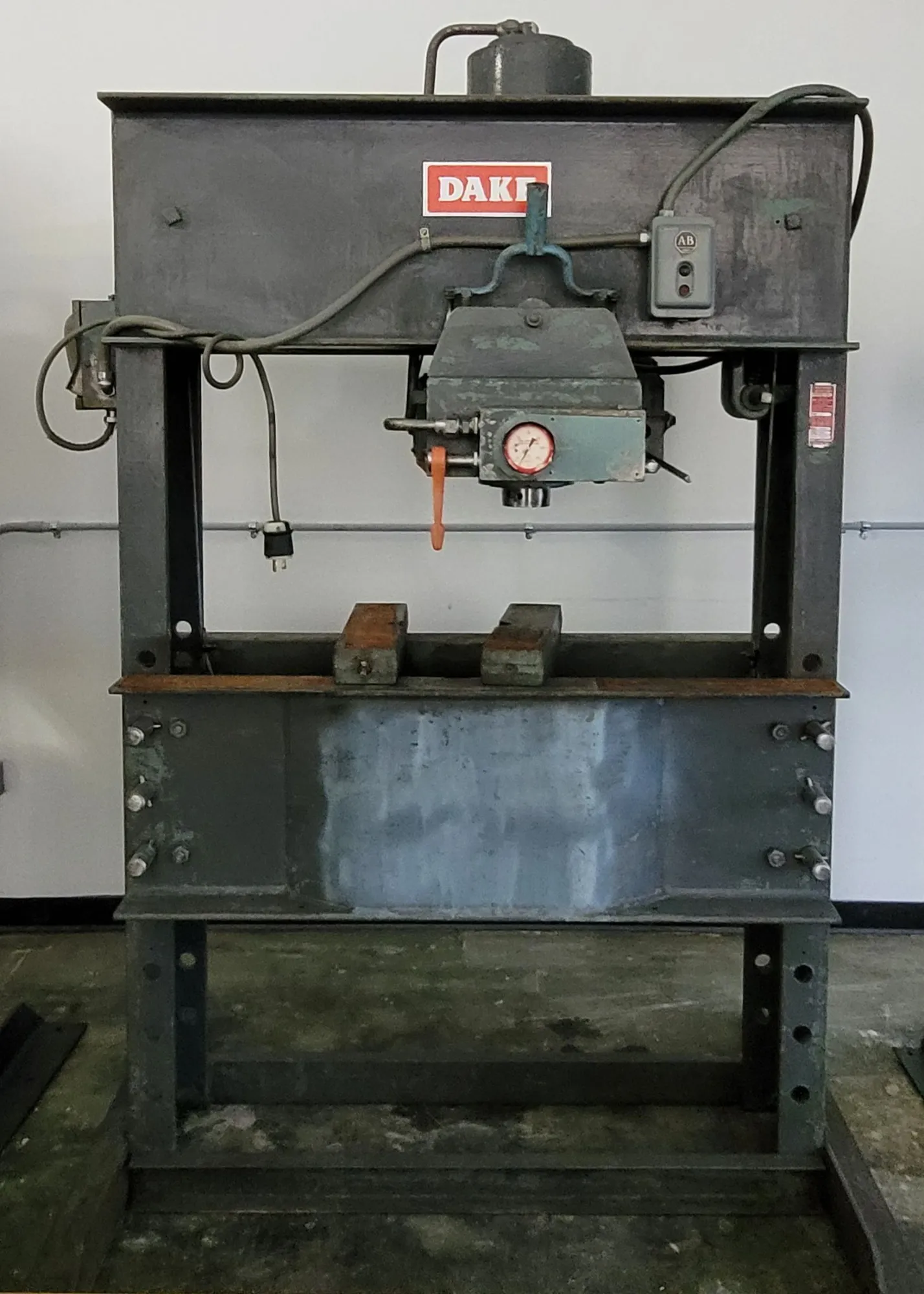

Dake Model 5-150A 150 ton ElecDraulic H-Frame Press
Key Specifications:
Capacity: 150 Tons
Operation: Electric (Elec-draulic I)
Power: 220/440V, 3-Phase, 2 HP Motor
Width Between Uprights: 48"
Width Between Table Channels: 12-1/4"
Max. Ram to Table: 30" (Adjustable)
Min. Ram to Table: 10"
Ram Travel (Stroke): 16"
Ram Advance Speed: ~16 IPM (Inches Per Minute)
Pressing Speed: ~2-3/4 IPM
Workhead Travel: 24-3/4" (Horizontal)
Weight: ~3,000 lbs
Base Dimensions (Footprint): 66" x 42"
Overall Height: ~95"
Features:
Movable, roller-mounted workhead for flexibility.
Self-locking hoist for easy table height adjustment.
Safety overload valve.
Pressure gauge and stroke indicator.
