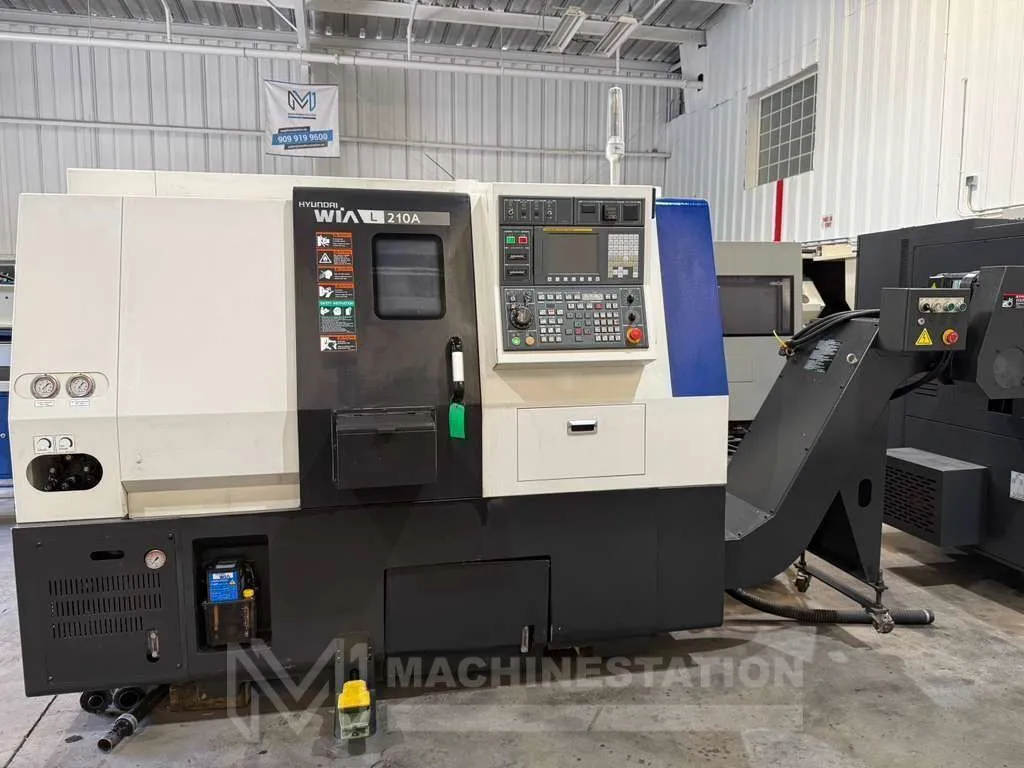

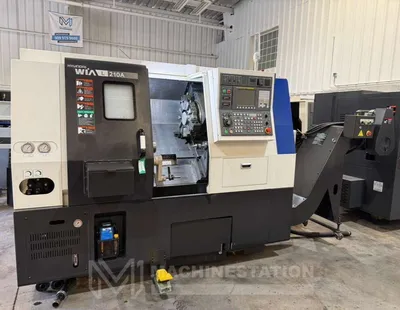

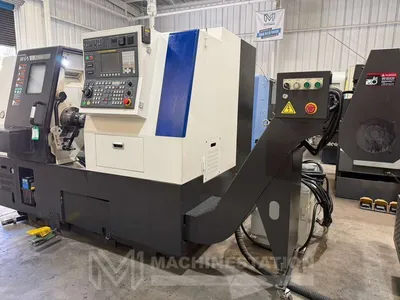

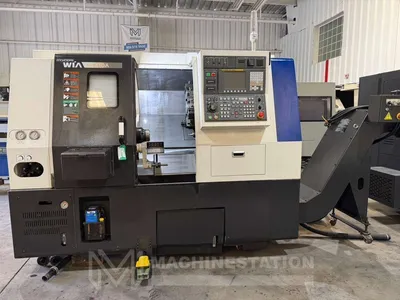

USED 2014 HYUNDAI WIA L210A
Overview
Specifications
| Swing | 21.7" | 551.18 mm |
|---|---|---|
| Machining Length | 16.1" | 408.94 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 13.8" | 350.52 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Hyundai WIA Fanuc i Series CNC Control) | CNC (Hyundai WIA Fanuc i Series CNC Control) |
| Dimensions | 94.7" x 65" x 73.6" High | 94.7" x 65" x 73.6" High |
| Weight | 9039 lbs | 9039 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

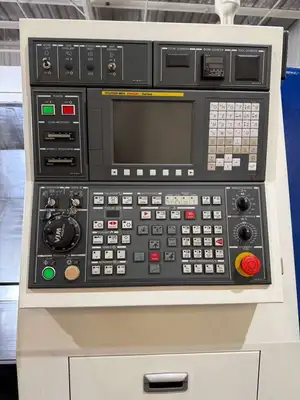

Hyundai WIA Fanuc i Series CNC Control
Linear Ways Construction
Coolant System
Note: Tool holders mounted on the turret are not included with the machine.
Capacity:
Max Turning Diameter: 13.8″
Max Turning Length: 16.1″
Swing Over Bed: 21.7″
Swing Over Carriage: 13.8″
Max Bar Capacity: 2.6″
Travels:
X Axis Travel: 8.3″
Z Axis Travel: 17″
Rapid Traverse X Axis: 1,417 IPM
Rapid Traverse Z Axis: 1,417 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.0″
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP

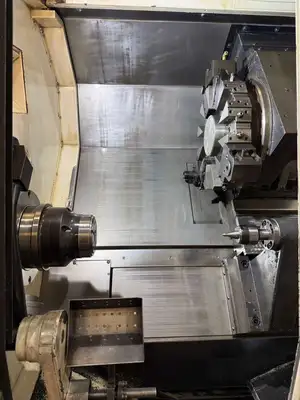

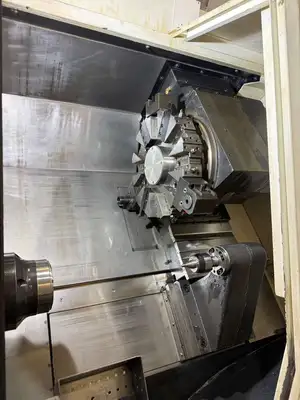

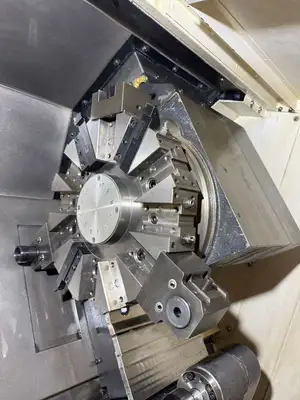

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.12 Second
Tool Size: 1″ OD / 1.3″ ID

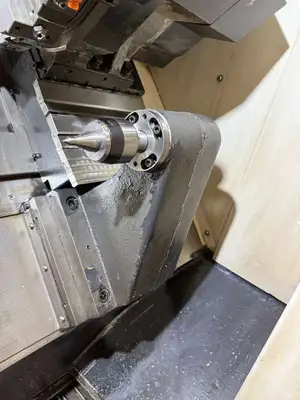

Tailstock:
Tailstock Taper: MT4
Tailstock Quill Diameter: 2.2″
Tailstock Travel: 15.7″
General:

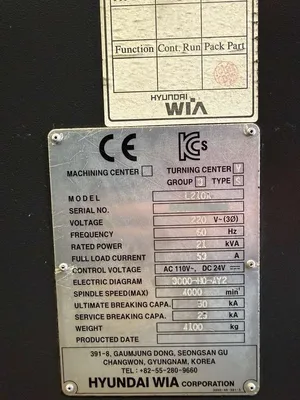

Power: 21 kVA, 220v / 3-Phase / 60 Hz
Overall Dimensions: 94.7″ x 65″ x 73.6″ High
Weight: 9,039 lbs
Equipped With

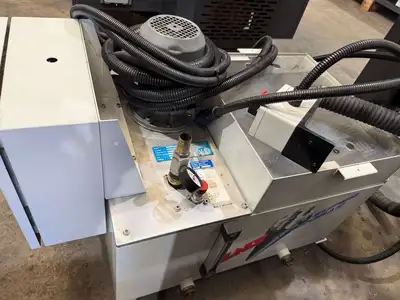

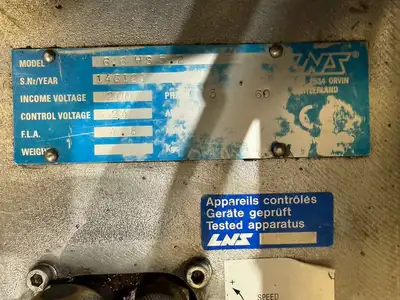

LNS Super Hydrobar Bar Feeder
Royal Quick Grip 65 Collet Chuck (8″ Chuck Capable)
12 Station Automatic Turret
Tool Presetter
Parts Catcher
Programmable Tailstock
Chip Conveyor
Foot Switch
