2003 Mazak VCN 410B Vertical Machining Center is a reliable CNC with 6114 Total Cut Hours. Features a high-speed 12,000 RPM spindle, 30" x 16.14" x 20" travel, and 30-tool ATC. Comes with a Mazatrol 640M Nexus control for precision and rapid traverse rates.
| X | 30" | 762 mm |
| Y | 16.14" | 409.96 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Pallet-W | 16.14" | 409.96 mm |
| Pallet-L | 43.31" | 1,100.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol 640M Nexus) | CNC (Mazatrol 640M Nexus) |

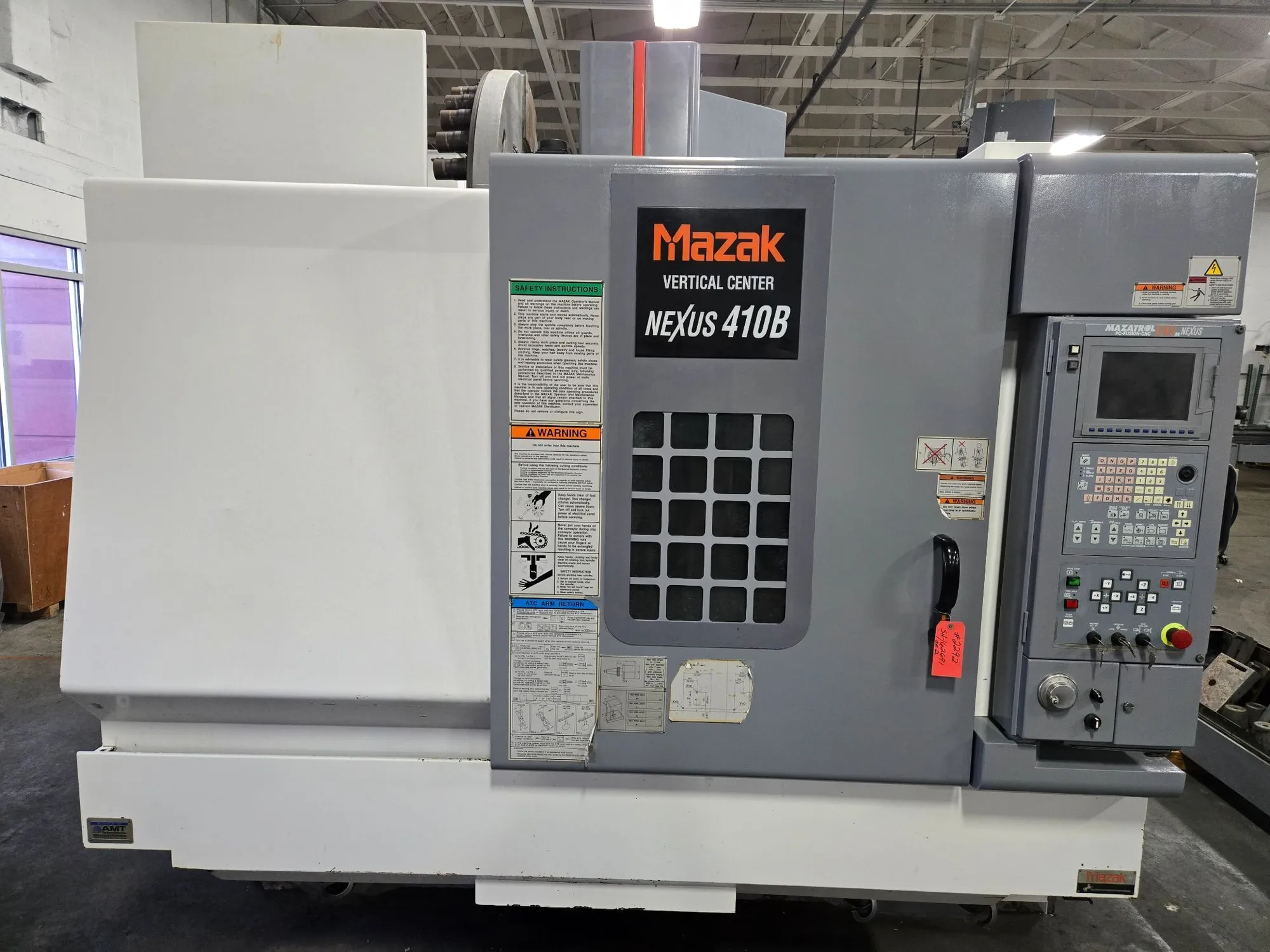

Mazak VCN 410B Vertical Machining Center w/Low Hours
Only 6114 Total Cut Hours
Key Specifications:
Control: Mazatrol 640M Nexus
Spindle:
Max Speed: 12,000 RPM
Spindle Drive: 20 HP (10 HP Continuous / 20 HP 10-min)
Axis Travel (X/Y/Z): 30" / 16.14" / 20"
Table:
Size: 43.31" x 16.14"
Capacity: 1,102 lbs
Tool Changer: 30-Position Automatic Tool Changer (ATC)
Rapid Traverse: 1,417 IPM (X, Y, Z)
Tooling: BT-40 Tool Shank
Auxiliary Equipment (Common): Chip Conveyor, Coolant System (often through-spindle capable), Renishaw Probes
Features & Performance:
High-Speed Machining: The 12,000 RPM spindle and rapid traverse rates are ideal for high-speed milling.
Productivity: The 30-tool ATC minimizes downtime, while large table capacity allows for complex parts.
Control System: The Mazatrol 640M Nexus offers intuitive programming for complex parts.
Robust Build: Designed for stability and durability in demanding manufacturing environments.
Machine Dimensions: 100"W x 101"D x 110"H
Conveyor Dimensions: 50"W x 145"L x 64"H
