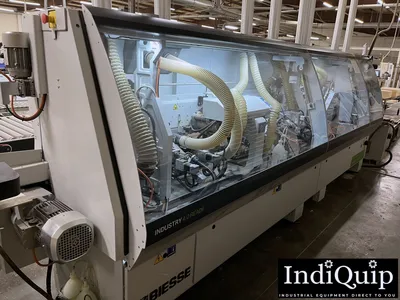

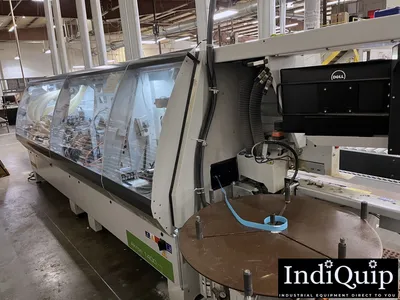

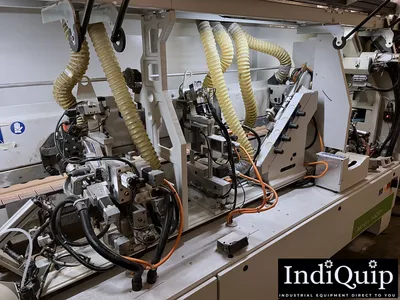

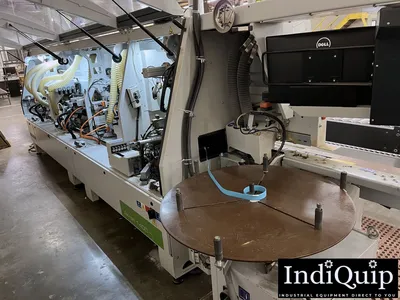

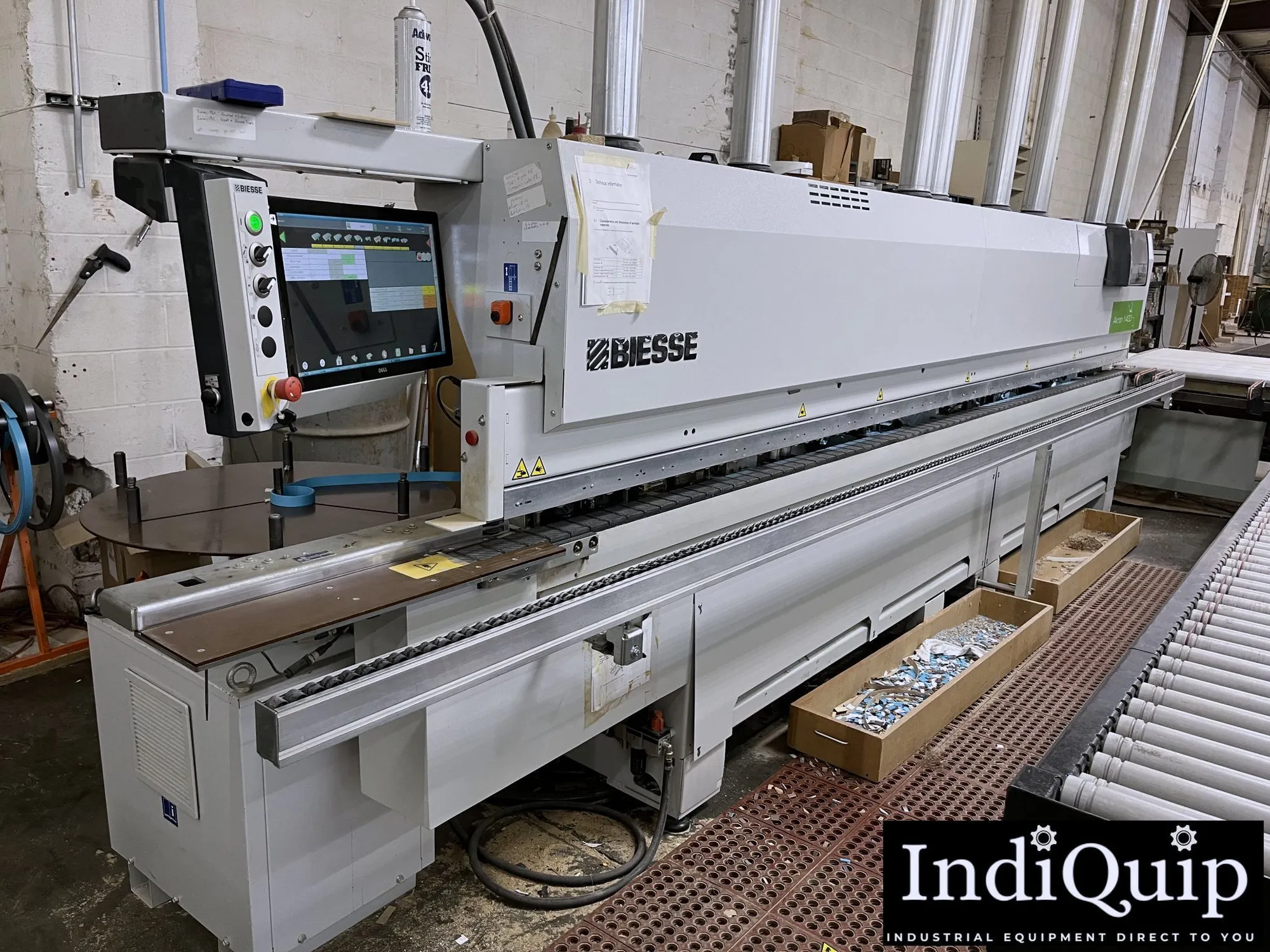

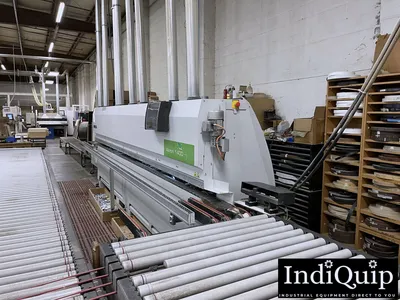

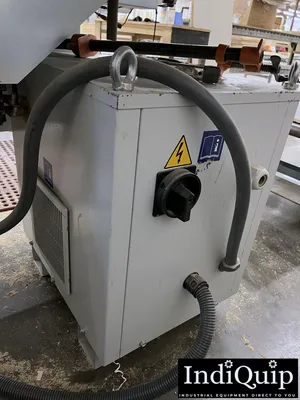

USED 2018 BIESSE AKRON 1445 A

Biesse Akron 1445-A edgebander with pre-milling, NC-controlled setup, corner rounding, glue scrapers, buffing, and hot-air finishing. Industrial automatic edgebanding system.

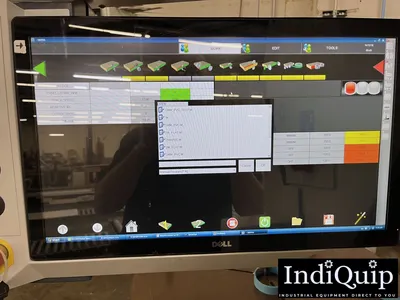

Control: SMART TOUCH 10" Numerical Control (1024 × 600 touchscreen)
Panel Thickness Capacity: 8–60 mm (0.31" – 2.36")
Edge Thickness (Coils): 0.3–3 mm
Edge Thickness (Solid Strips): 5–20 mm
Feed Speed: 12 / 15 / 18 m/min (39 / 49 / 59 ft/min)
Minimum Panel Length: approx. 6–8 in
Minimum Panel Width: approx. 2.3–3.1 in
Electrical Requirements: 480V, 3-phase, 60 Hz
Installed Power: 15 kW
Air Requirements: 6 bar (87 psi)
Dust Extraction (per unit): 500 m³/h recommended

Pre-Milling Unit: Dual counter-rotating diamond cutters
Gluing System VC-S11: Hot-melt glue pot, automatic temperature control, glue roller + spreading roller, coil guillotine (up to 3 mm), pre-melter connection
Pressure Section: Multiple rollers with NC-controlled positioning
End Trimming Unit (RPT): Two independent HF motors, pneumatic adjustment, chip extraction
Fine Trimming Unit RT02: (2) 12,000 RPM high-frequency motors, vertical and horizontal copiers, pneumatic exclusion
Corner Rounding Unit AR02E: Two-motor multifunction unit, radius up to 3 mm, oscillating ball-screw movement, pneumatic exclusion
Profile Scraper Unit RC02
Glue Scraper Unit RC02

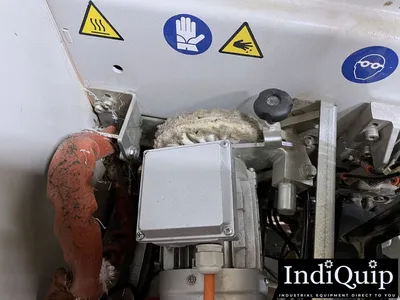

Brushing Unit SP02: Dual motors up to 2,800 RPM
Hot Air Blower Unit PH-501
Release Agent / Cleaning Unit LT02
NC Axis Package (Included):
– NC axis on infeed fence
– NC axis on pressure rollers
– NC axis on fine trimming unit
– NC axis on corner rounding unit
– NC axis on scraping unit
