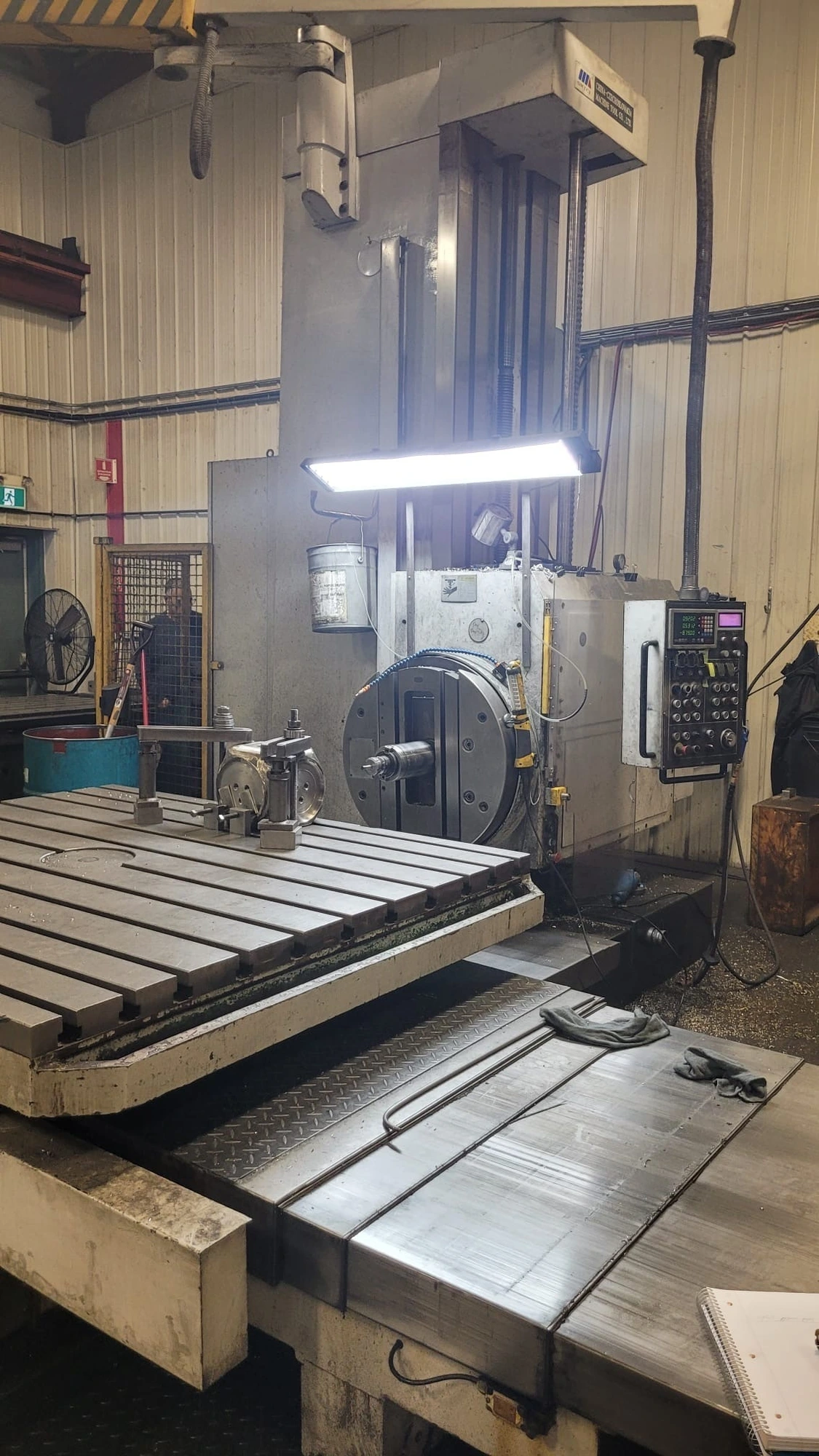

USED 2011 SMTCL TPX6111B/2
Overview
5.12" Spindle Diameter
Specs
SMTCL TPX6113B/2 5.12" Table Type Horizontal Boring Mill
Max. loading of worktable 1800×1600(mm) / 70.87" x 62.99"
Spindle diameter 130mm / 5.12"
Spindle taper (7:24) NO. 50
Spindle speed 8-800r/min
Spindle power 15/18.5kw
Max. spindle torque 2950Nm
Facing head speed range 2.5-125r/min
X axis travel 2000mm / 78.74"
Y axis travel 1600mm / 62.99"
Z axis travel 1500mm / 59"
W axis travel 900mm / 35"
X/Y/Z axis feed speed 5-5000mm/min
W axis feed speed 5-5000mm/min
X/Y/Z axis rapid feed speed 10m/min
W axis rapid feed speed 5m/min
Tool shank type BT50
Retention knob standard JB3381. 2-83(50#)
X/Y/Z/W axis positioning accuracy 0.03mm
Four point positioning of worktable N/A
Machine size(LxWxH) 7030x4665x3800(mm)
Machine weight(Kg) 28000
Equipped With
Facing Head
3 Axis Digital Readout
Built in Rotary Table
