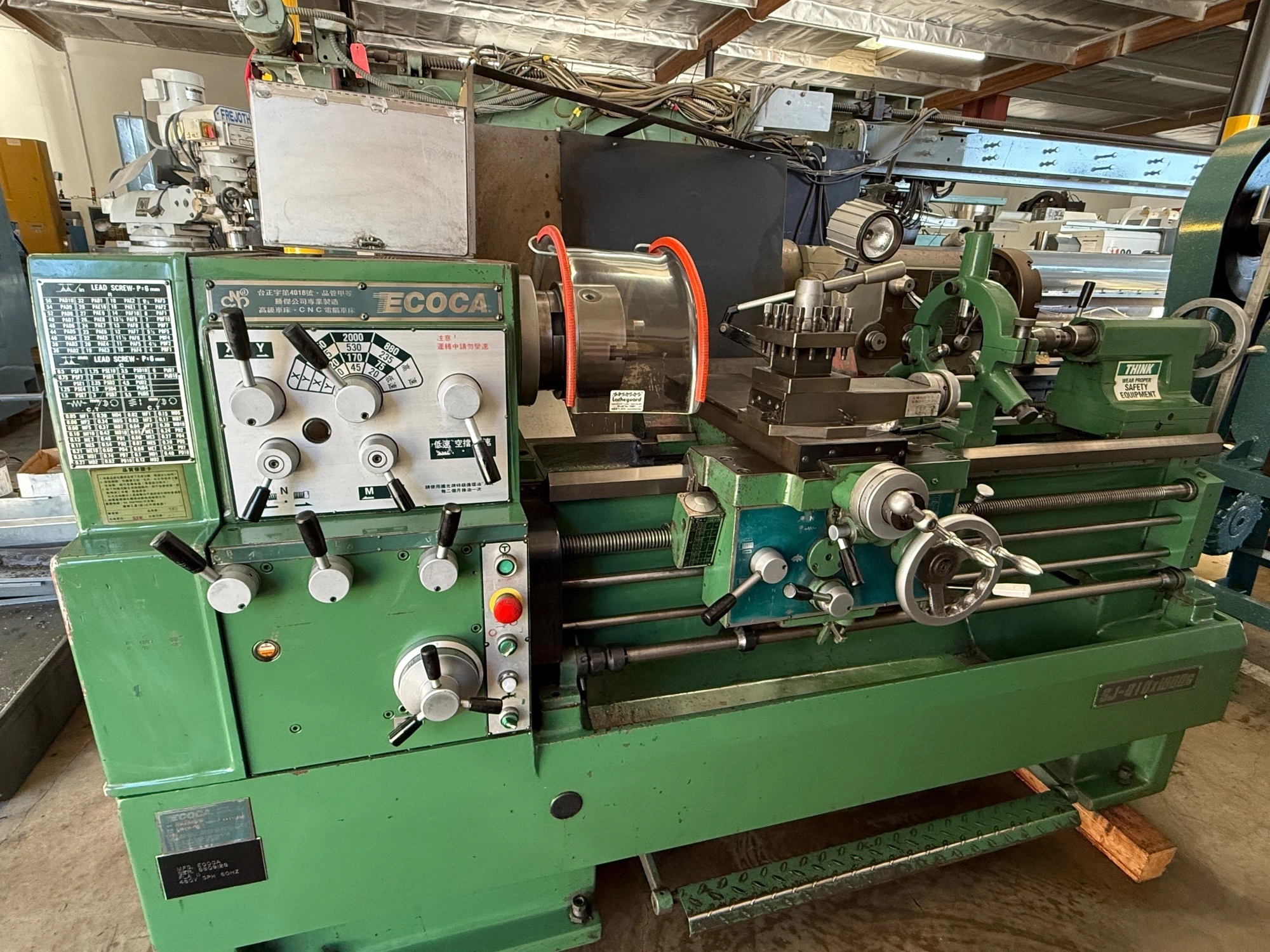

USED 2003 ECOCA SJ-410X1000G

ECOCA SJ-410/1000G Engine Lathe, used condition. Features 16" swing, 40" centers. Ideal for precision machining tasks, combining efficiency and reliability.

ECOCA SJ-410/1000G Engine Lathe #8068 #2

SPECIFICATIONS:
Working Area:
Swing Over Bed: 16"
Swing In Gap: 23"
Distance Between Centers: 40 in
Swing Over Slide: 10"

Travels
Travel X-axis: 8.3"
Travel Z-axis: 6"
Swing range of top slide: ± 45°

Headstock
Speed Range, high: 50 rpm - 3000 rpm
Speed Range, low: 30 rpm - 550 rpm
Spindle Bore: 2.28" ( 58 mm )
Spindle Mount: Camlock D1-6
Spindle Taper: 6 MT

Threading
Threading, metric: (39) 02-14 mm
Threading, diametric: (21) 8-44 DP
Threading, module: 0.3 mm - 3.5 mm
Threading, imperial: (45) 2-72 TPI

Tailstock
Tailstock Quill Diameter: 2 "
Tailstock Taper: 4 MT

Drive Capacity
Motor Rating Main Drive: 7.4 HP

Measures and Weights
Overall dimensions (length x width x height): 77" x 40" x 52"
Weight: 2,640 lbs.

EQUIPPED WITH:
Steady Rest
3-Jaw Chuck
Work Lamp
Chuck Guard
