Tarnow TUJ 48 X 2500 Engine Lathe, 21" swing, 98.5" centers, 16 spindle speeds (22.4-1120 RPM). Features gap bed, clutched head, 2" spindle bore, taper attachment, 3 jaw chuck, and 2-speed motor. Wired 220V/3PH. Ideal for diverse tasks.
| Swing | 21" | 533.4 mm |
| Centers | 98.5" | 2,501.9 mm |
| Spindle Bore | 2" | 50.8 mm |
| Power | 9 hp | 6.7 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Swing Over Cross Slide | 13.25" | 336.55 mm |

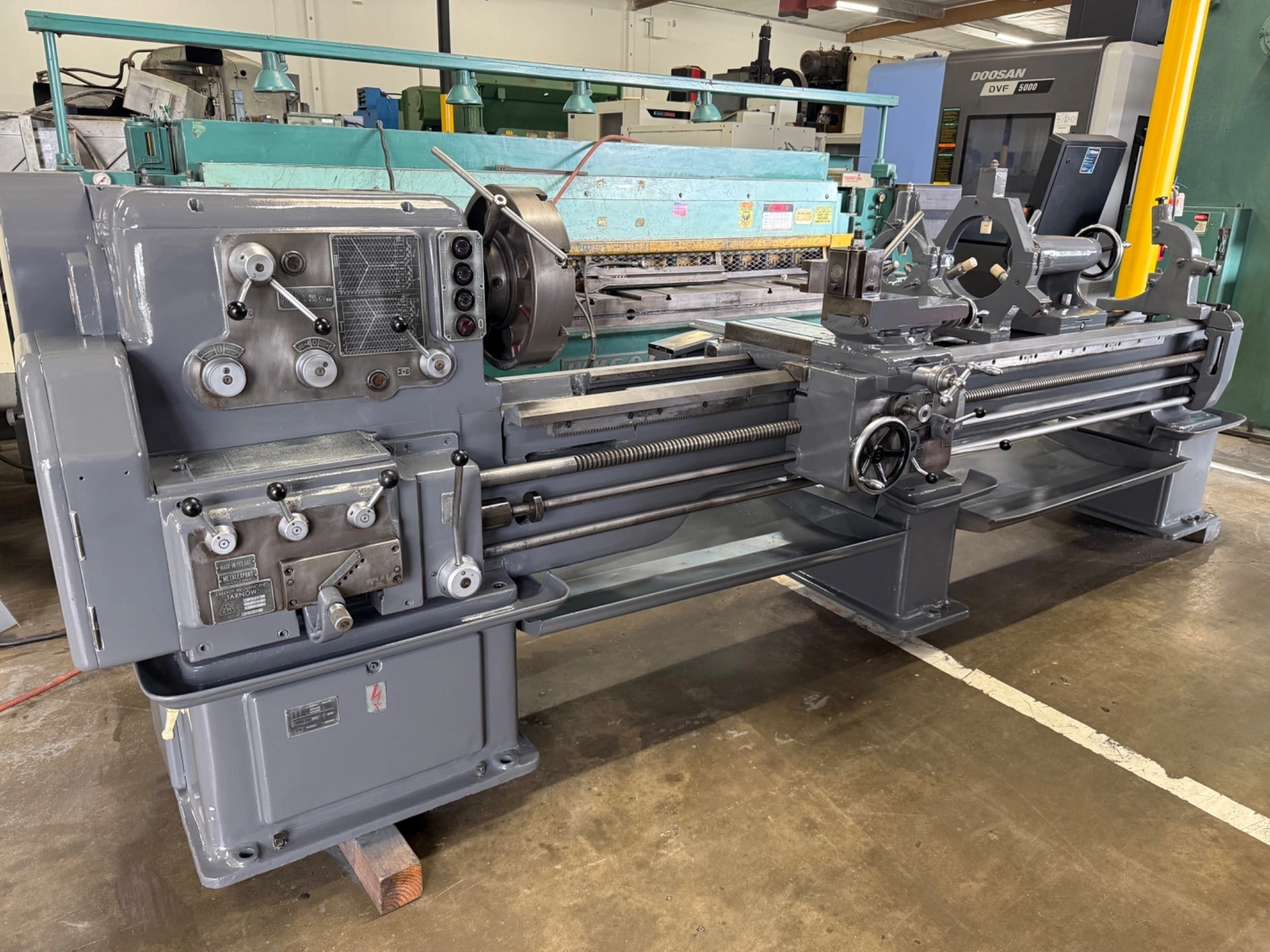

TARNOW TUJ 48 X 2500 Engine Lathe #8067 #2
SPECIFICATIONS:
21" SWING
98.5" CENTERS
13-1/4" SWING OVER CROSS
16 SPINDLE SPEEDS 22.4-1120 RPM
35 INCH THREAD CHANGES 1-28 TPI
38 METRIC THREAD CHANGES .4-28 MM
22 FEED CHANGES .0036- IPR
EQUIPPED WITH:
GAP BED
D1-6 CAMLOCK SPINDLE
CLUTCHED HEAD
2" SPINDLE BORE
3 JAW CHUCK
TAPER ATTACHMENT
6 3/4" SQUARE 4 WAY TOOLPOST
2 SPEED MOTOR 9/5.4 HP
WIRED 220 VOLTS/3PH
