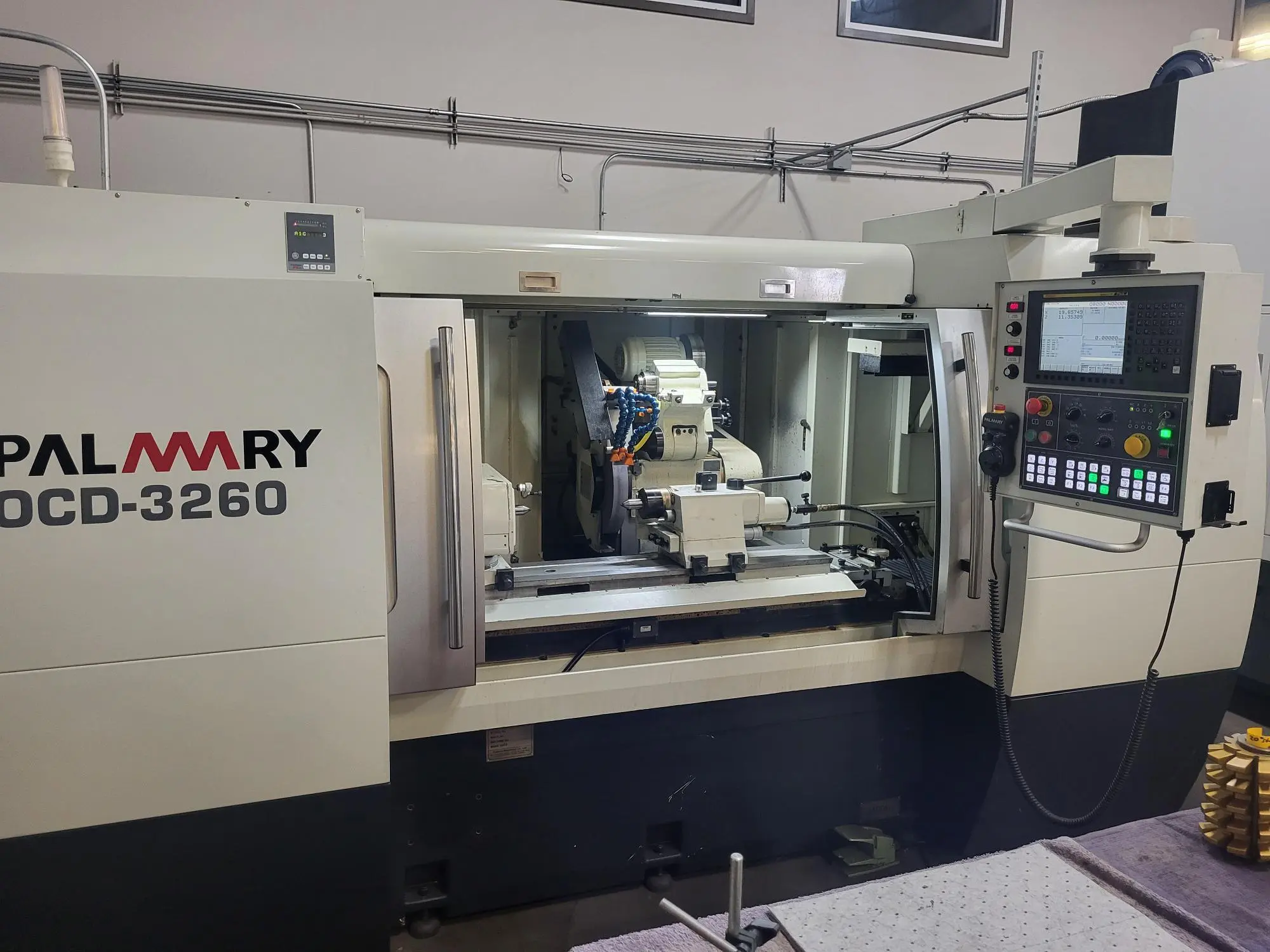

USED 2020 PALMARY OCD-3260

2020 Palmary OCD 3260 CNC Cylindrical Grinder with Fanuc Oi-TF Control, Hydraulic Tailstock, Touch Probe, ID Attachment, 300mm Grinding Diameter x 600mm Between Centers

Swing over Table....................320mm
Distance Between Centers............600mm
Max. External Grinding Diamater.....300mm
Max Load Between Centers............150 kgs
Grinding Wheel......................0405 x 50~75 x 0127 (0152.4) mm
Grinding Wheel Linear Velocity......45 m/s
Wheelhead Rapid Feedrate............10 m/min
Wheelhead Min. Input Increment......0.0001 mm
Wheelhead Internal Grinding.........Manual Elevation
Table Rapid Feedrate................10 m/min
Table Min. Input Increment..........0.0001 mm
Table Swiveling Angle...............0°~12°
Workhead Swiveling Angle............-30°~+90
Workhead Center.....................MT. No. 4
Workhead Speed......................5-800 RPM
Workhead Max. Load of Spindle.......35 kgs (Max length:150 mm) (Tool Holder Included)
Tailstock Center....................MT. No.4
Tailstock Stroke....................25mm
Wheel Spindle.......................3.7kw
Work Spindle........................0.8 kW AC Servomotor
Wheelhead Feed......................1.2 kW (AC Servomotor)
Table Feed..........................1.8 kW (AC Servomotor)
Machine Weight......................3800 kgs

Fanuc Oi-TF CNC Control
Cam Locked Type Drive Dog
Gap Control
Magnetic Coolant Separator - 80 L/min. Paper Filter System - 80 L/min.
Auto Door
Hydraulic Tailstock
Touch Probe
ID Grinding Attachment - Hinged Type

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
