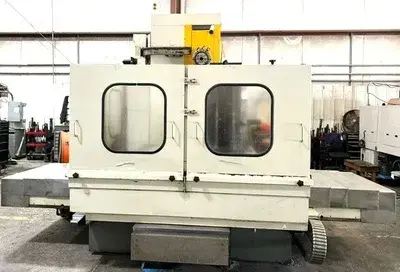

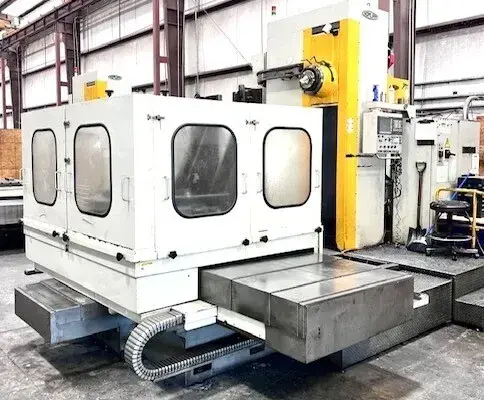

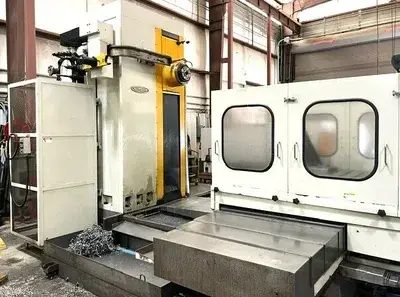

2015 NOMURA 4.3" CNC Horiz Table Type Boring Mill, FANUC 31i-MA, Full B Axis, X-78.7", Y-55.1", Z-51.2"
Full B-Axis Built-in RotaryTable Size: 63" x 55", Max Table Load: 15,432 pounds, X Axis Travel: 78.7"
Y Axis Travel: 55.1", Z Axis Travel: 51.2", W-Axis Travel (Quill): 19.7"
| Spindle Size | 4.3" | 109.22 mm |
| X-Horiz Tvl of Table | 78.7" | 1,999 mm |
| Y-Vert Tvl of Head | 55.1" | 1,399.5 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 1.5 RPM | 1.5 RPM |
| Table-W | 63" | 1,600.2 mm |
| Table-L | 55" | 1,397 mm |
| Spindle Tvl. | 19.7" | 500.38 mm |

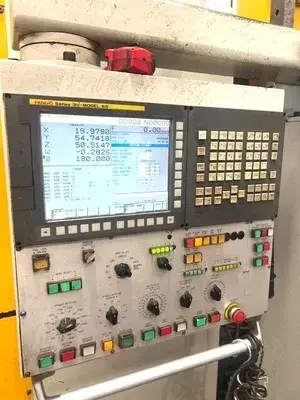

| Control | CNC (FANUC 31I-MA) | CNC (FANUC 31I-MA) |
| Weight | 66,150 | 66,150 |
Main Specifications:
Table Size: 63" x 55"
Max Table Load: 15,432 pounds
X Axis Travel: 78.7"
Y Axis Travel: 55.1"
Z Axis Travel: 51.2"
W-Axis Travel (Quill): 19.7"
B-Axis (Pallet Indexing): 0.001° Rapid Traverse Rate (X/Y/Z): 394 ipm
Cutting Feedrates: 78.7 ipm
Spindle Taper: CAT 50
Spindle Speed: 1,500 rpm
Spindle Motor: 25 hp
Tool Changer Capacity: 60
Weight: 66,150 pounds
60 Tool ATC
Under Power
