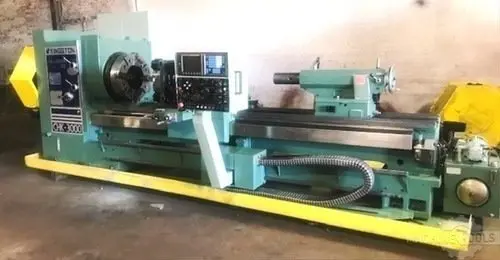

2010 KINGSTON Model CHK-3000 Big Bore Engine Lathe. w/Manual Teach, 24" Chuck w/ 12" Hole Thru
The CHK and HG models are the heavyweight champs of Kingston's line. Available in 12.5” and 14.7” spindle bores, respectively, the HK and HG thrive under the most demanding of work conditions. The HK (available in 30” or 34” swing) consistently leads the industry in heavy-duty oil country applications—with the shorter 30” swing being the most popular for its lower center of gravity and maximum stability during heavy cutting—while the larger HG is available in swing sizes up to 40”. These models are equipped with a powerful 20 HP Mitsubishi inverter-driven main motor (6P) and a hydraulic braking system, with a semi-automatic air threading attachment (complete with taper) as a popular option. Kingston's commitment to building powerful, big bore, heavy duty machines is legendary; the HK and HG are Kingston’s maximal efforts.
| Swing | 30" | 762 mm |
| Machining Length | 120" | 3,048 mm |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 12.6" | 320.04 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 300 RPM | 300 RPM |
| Turning Dia | 22" | 558.8 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (FANUC OT_Manual Guide) | CNC (FANUC OT_Manual Guide) |
| Dimensions | 226" x 74" x 75" | 226" x 74" x 75" |
| Weight | 18,000 Lbs. | 18,000 Lbs. |
Standard Features

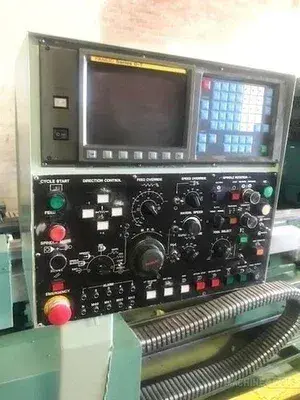

Fanuc OT-CNC Control With Manual Guide Program
Main Specifications
Capacity 30" x 120"
Swing Over Bed 30"
Distance Between Centers 120"
Swing Over Cross Slide 20-1/2"
Hole Thru Spindle 12-1/2"
Spindle Nose A2-20
Spindle Speeds 5 to 300 RPM
Taper of Spindle Bore & Center 3/4" Taper per Foot
Bed Width 22"
Compound Slide Travel 9.45"
Spindle Taper MT #6
Cross Slide Travel 21.25"
Tailstock Quill Travel 11-3/4"
Tailstock Quill Diameter 5.125"
Inch Threads (50) 1 - 28 TPI
Metric Threads (41) 1 - 28 MM
Modular Pitches 0.5 to 7 m
Diametrical Threads 4 to 56 D.P.
Horsepower 20 H.P.
Dimensions (W x D x H) 226" x 74" x 75"
Weight 18,000 Lbs.
EQUIPPED WITH:
Fanuc OT CNC Control

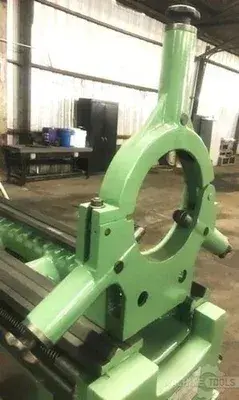

Dual 24" - 4 Jaw Chucks Steady Rest
Taper Attachment
4 Way Rapid Traverse2-Speed Drive Tailstock Quill
2 - Chip Pans
12.5" Hole Thru Spindle Digital Readout Steady Rests
Hydraulic Brake System
4-Way Rapid Traverse
T-Slot on Tool Slide
Hardened and Ground Bed and Cross Slide Ways
2-Speed Drive Tailstock Quill Coolant System with Pump and Piping
Pull Drawer Chip (Coolant) Pan
Rear Chuck Adapter Installed
Front & Rear Chuck Guards
