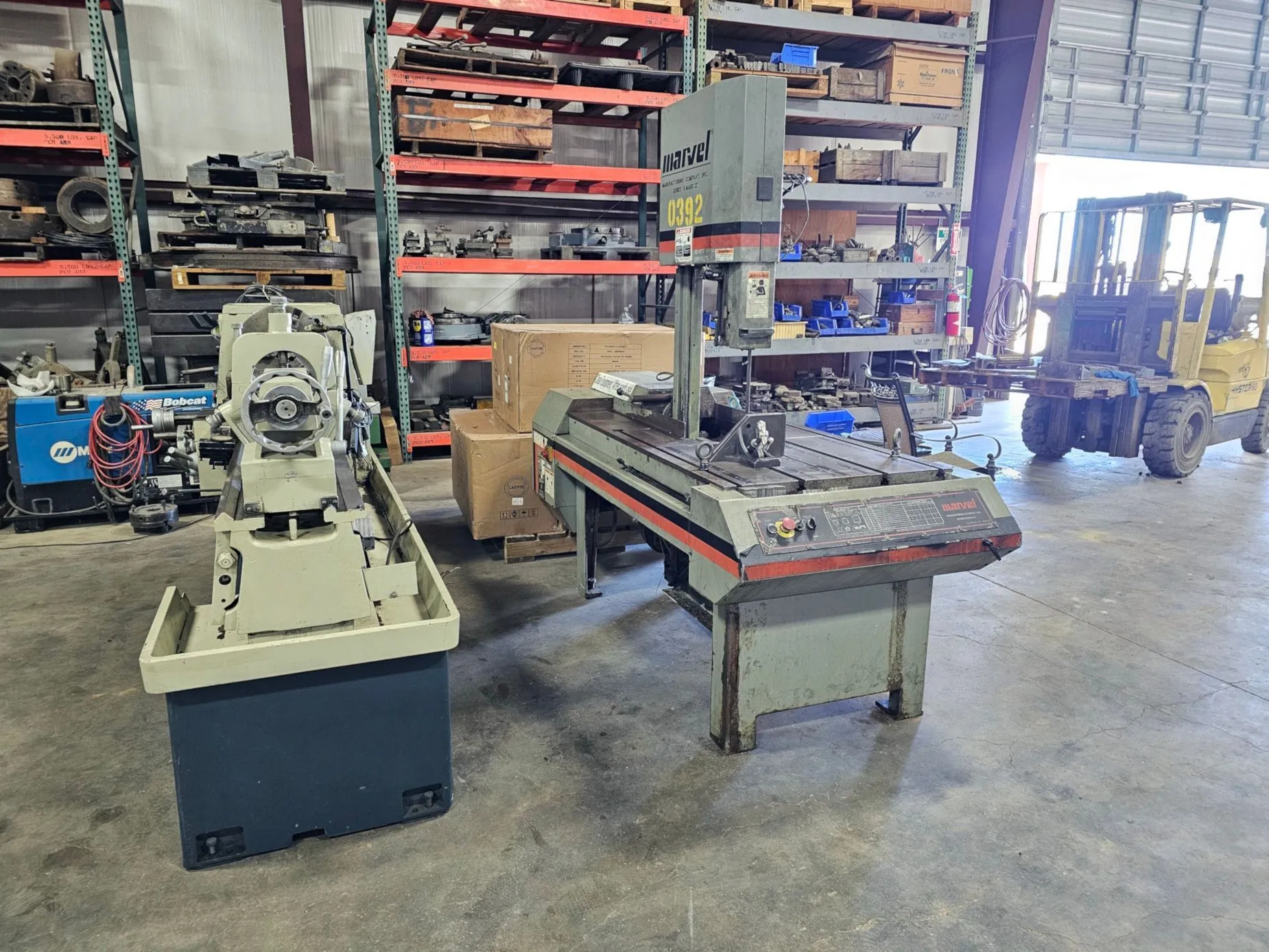

USED 2007 MARVEL Series Mark ll

18″ x 22″ Used Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II

Description:
18″ x 22″ Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II
Specifications:
Throat Cap:..................................................18″
Work Height:.................................................22″
Capacity @ 90°:..............................................18″ X 22″
@ 45°(Right):................................................18″ X 14.5″
@ 45° (Left):................................................18″ x 13″
@ 60° (Right):...............................................18″ 9.7″
@ 60° (Left):................................................18″ X 7.3″
T-Slotted Work Table:........................................24-1/4″ 33″
Table Height:................................................38″
Blade Width:.................................................1.25″
Blade Length:................................................184″
Blade Tension:...............................................40,000 PSI
Speed Range:(Variable with Inverter Drive)...................50 – 450 FPM
Feed Range:..................................................0 – 250 lbs.
Wheel Diameter:..............................................19″
Power:.......................................................2 hp
Presently Wired To...........................................440 Volt 3 Phase
Dimensions:..................................................102″ X 72″ X 90″
Weight:......................................................2,867 Lbs. Approx.
Quick-Action Vise:...........................................12″ x 18″ x 6″
Coolant Pans.................................................Yes (Not Pictured)
Note:
Machine Will be cleaned and cycled.
