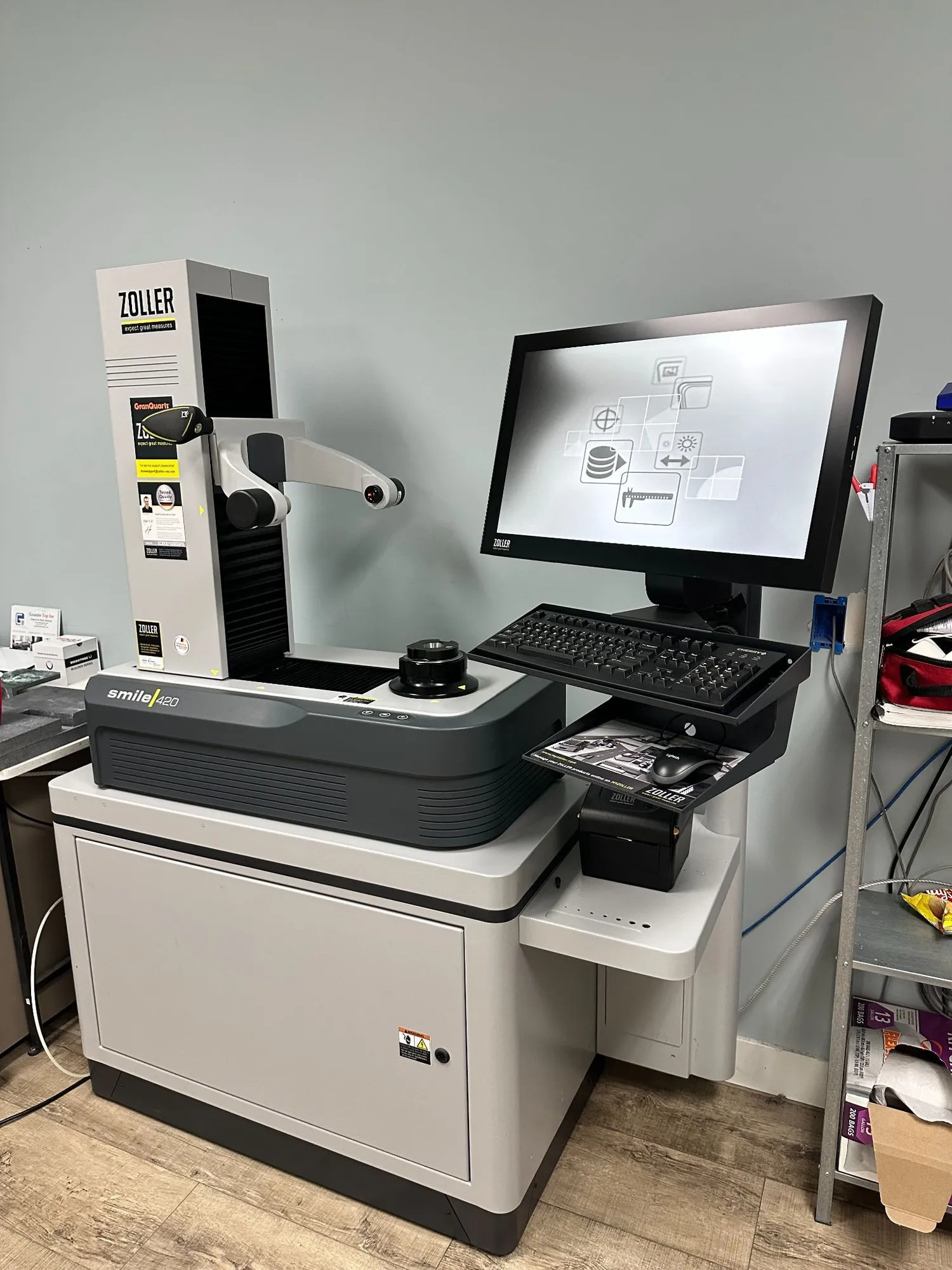

USED 2023 ZOELLER Smile 420

High-accuracy optical measurement system with transmitted-light camera (CCD monochrome).

Measuring capacity:
Max tool diameter: 420 mm

Max tool length (Z): 420 / 600 / 800 mm

X-range: 210 mm

Precision:
Resolution: 1 µm

Concentricity: 2 µm

Nominal value setting accuracy: 2 µm

Axis & Control:
Up to 3 axes (X / Z / C)

Operation options:
Manual via ZOLLER eQ single-hand device

Manual fine adjustment (optional)

Full CNC control of Z/X/C (optional)

Optional C-axis motorization available

Condition & Notes:
Machine under power and available for inspection

Excellent working condition, OEM-maintained and calibrated

Seller upgrading to other systems; space needed

Sold as-is / where-is; rigging & shipping can be quoted

Location: Washington, United States
