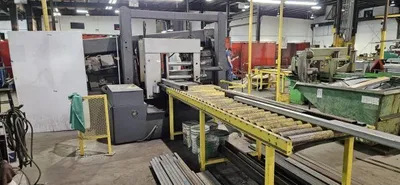

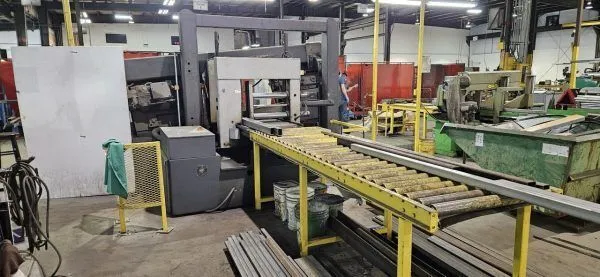

2014 HYD-MECH H-22 Straight Cut Automatic Horizontal Bans Saw, Capacity 22" x 30"
The H-22A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.
The HYD-MECH H-22A is an automatic, dual-post horizontal band saw with a cutting capacity of 22" x 22" at 90° and a 2" x 22' 6" blade. It is powered by a 10 HP blade drive motor, features a variable frequency drive (VFD) for blade speed control (\(40-300\) SFM), and can handle a maximum shuttle stroke of up to \(34\)".
| Rect-Cap (H) | 22" | 558.8 mm |
| Rect-Cap (W) | 22" | 558.8 mm |
| Rounds-Cap | 22" | 558.8 mm |
| Square-Cap | 22" | 558.8 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 2" | 50.8 mm |
| Blade Length | 270" | 6,858 mm |
| Dimensions | 141" x 88" x 92" (width x length x height) | 141" x 88" x 92" (width x length x height) |
| Weight | 13,000 LBS | 13,000 LBS |
Cutting Capacity Round: 22″
Cutting Capacity Square: 22″ × 22″
Cutting Capacity Rectangle: 22″ × 30″
Blade Dimensions: 2″ × 27′ 4″
Blade Drive Motor: 15 HP
Blade Speed: 50–350 FPM
Vise Stroke: 22″
Material Feed Stroke: 0–34″ (multi-indexing to any length)
Coolant System: Flood
Coolant Tank Capacity 30 Gallons
Table Height 31" (35" with canted head)
Hydraulic System Motor: 3 HP
Control Mitsubishi FX5U PLC color touch screen controller
Voltage 480 V standard; other options available
Hydraulic System Capacity: 17 gal
mACHINE dIMENSIONS: 141" x 88" x 92" (width x length x height)
Machine Weight: Approx. 12,500 lb
Equipped With:
Automatic Hydraulic Vises
Automatic Feed System
Variable Blade Speed
New replacement cost $86,000
