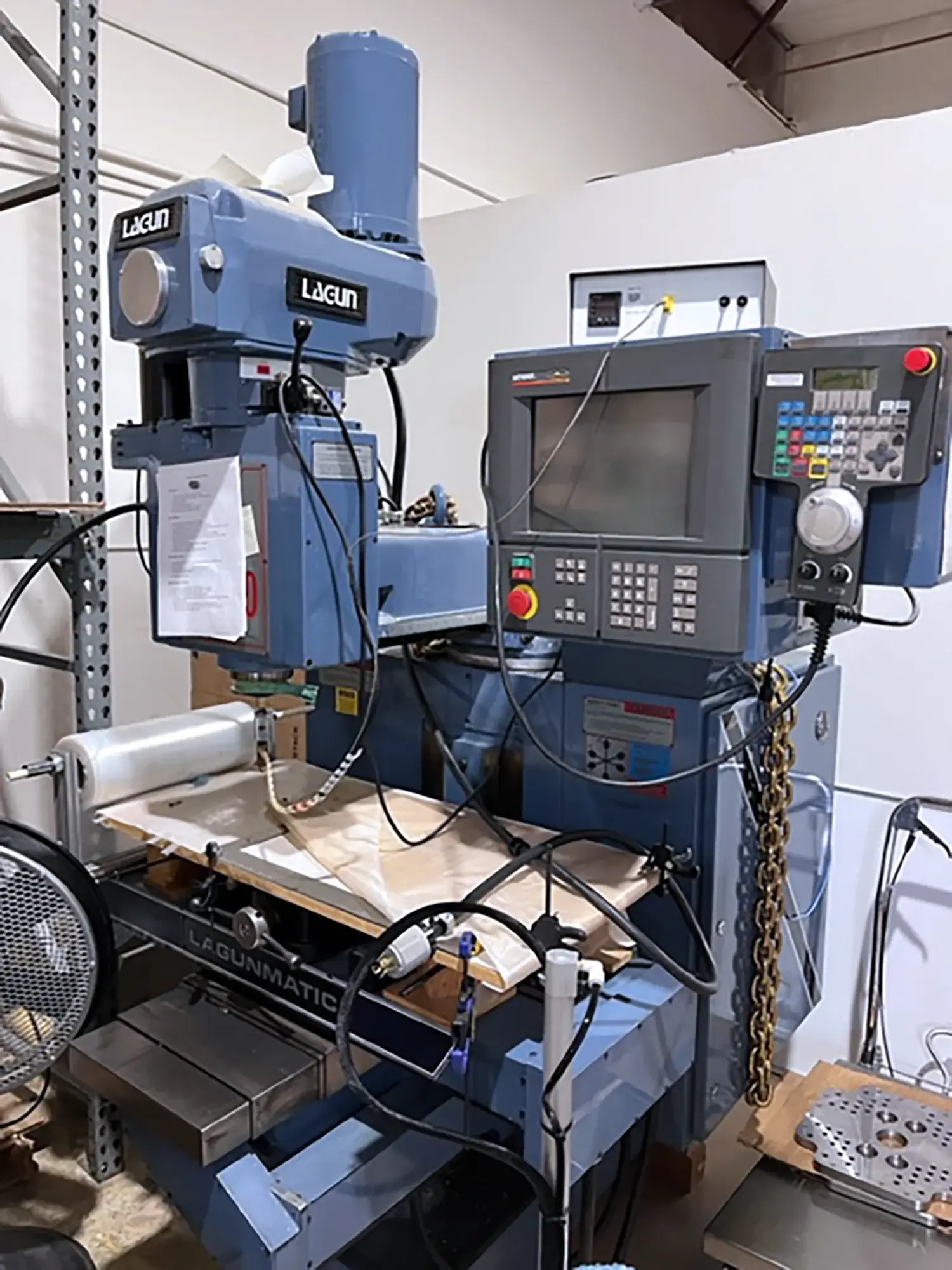

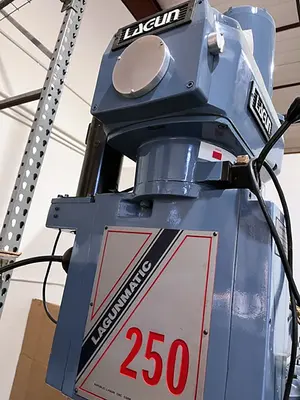

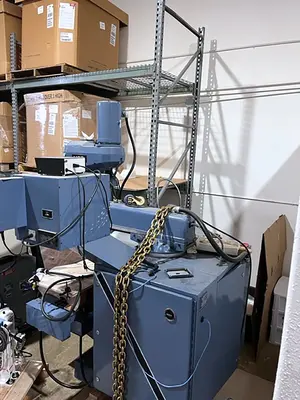

USED 1996 LAGUN Lagunmatic 250

Used 1996 Lagun Lagunmatic 250. Machine Tool Bids offers plenty of Machines and other fabrication and CNC machines for great prices. Contact us if you have any questions about this Lagun Lagunmatic 250 or any of our machines.

Table Working Surface: 10" x 44"
Table Size: 16" x 48"
Table Load Capacity: 1000 lbs
Longitudinal Travel (X-Axis): 27"
Cross Travel (Y-Axis): 15"
Maximum Clearance Table Top to Spindle Nose: 18.25"
Spindle Taper: 40
Spindle Motor: 3 HP
Rapid Traverse Rate All Axes: 350 IPM
Approximate Machine Dimensions: 5" L x 4" W x 9" H
Approximate Machine Height: 99"
Approximate Machine Weight: 4,500 lbs
Electrical: 240V, 3PH,60HZ
Feed Rates, All Axes: 0.1 to 250 IPM
Spindle Speeds Range: 60-4250 RPM
Vertical Travel (Z-Axis) Spindle: 6.5"
Vertical Travel (Z-Axis) Knee (Manual): 16"

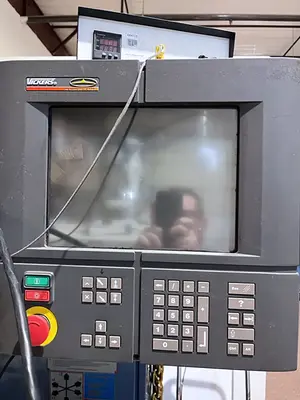

3-Axis Vickers CNC Control( G-Code)

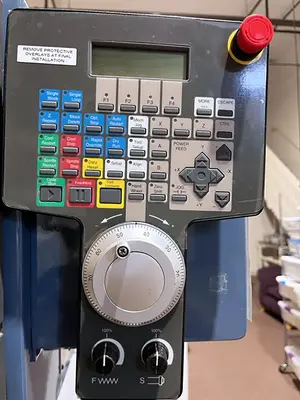

Remote Pendent
Bjur Lubrication system
