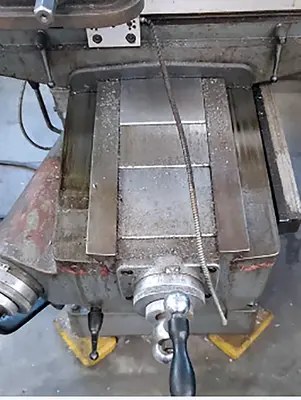

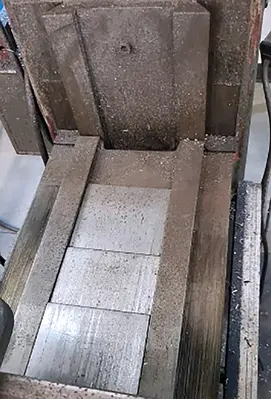

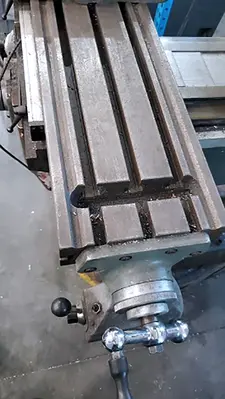

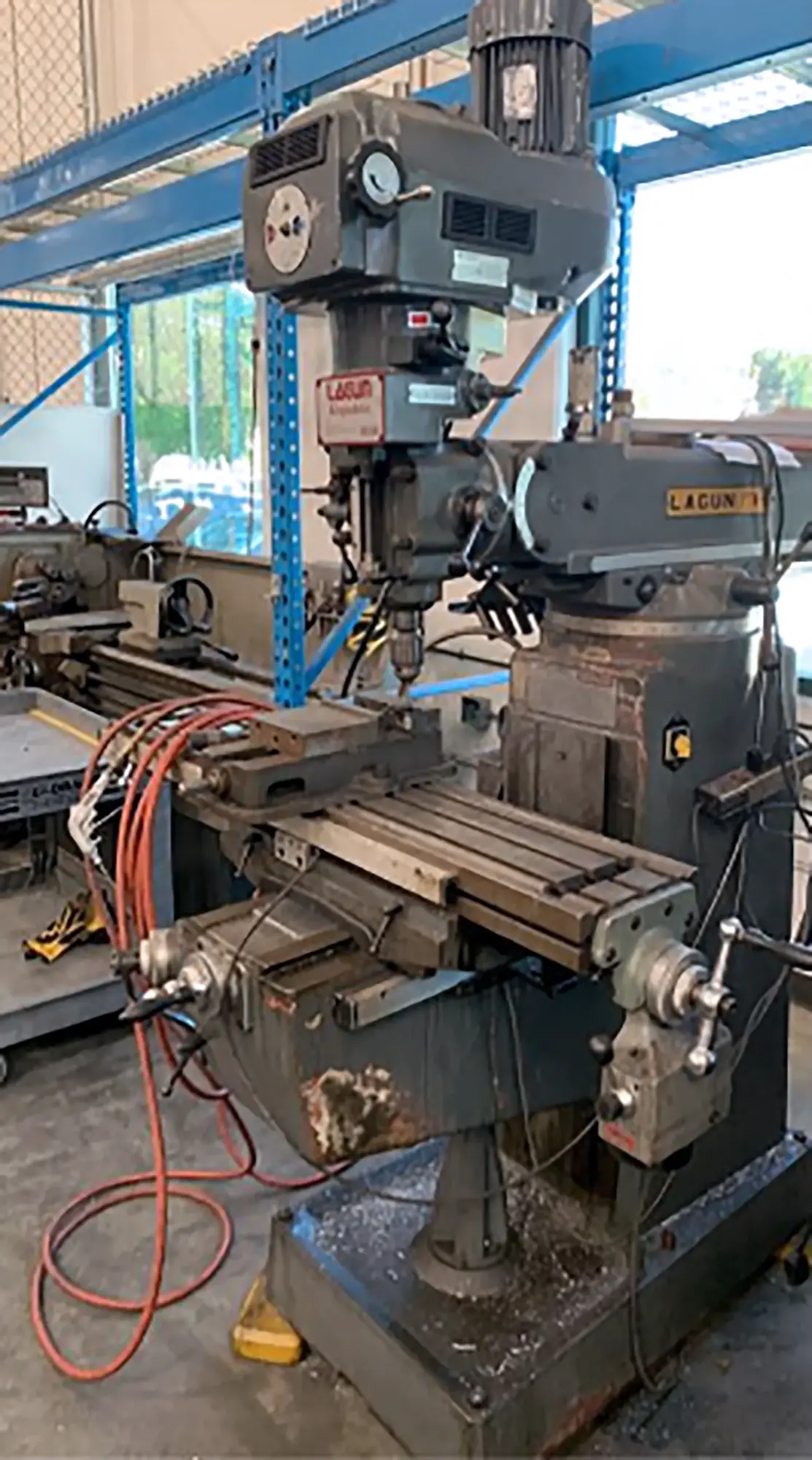

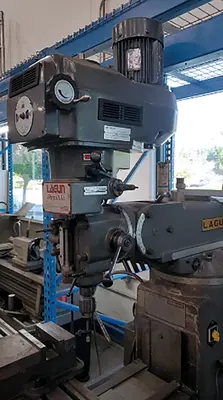

USED 1996 LAGUN FTV-2
Overview
Used Lagun FTV-2. This pre-owned Machine is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Lagun Machine we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs
2-Axis Newall Digital Read Outs
Powerfeed
Approximate Machine Weight: 2,425 LBS
Table Size: 9" x 48"
Max Weight of the Workpiece: 441 LBS
X-axis: 34.62" (longitudinal table travel power feed)
Y-Axis: 16" (cross saddle travel)
W-Axis: 16" (vertical knee travel)
Z-axis: 5"
Distance from Spindle Center to Column: 5" - 27"
Ram Adjustment: 22-3/16" Manual
Head Swivel: ±90º (left to right)
Head tilt (Left-to-Right): ±45º
Spindle Taper: R-8
Spindle Speeds: 55 - 4,250 RPM
Power Quill Feed: 0.0015, 0.003, & 0.006 IPR
Quill Diameter: 3.37"
Spindle Horsepower: 3 HP
Electrics: 220/440/3/60 Operating Voltage 460
Full load current: 3 amps
Approximate Machine Dimensions: 57" x 65"
Approximate Machine Height: 83"
Equipped With
2-Axis Newall Digital Read Outs
Powerfeed
