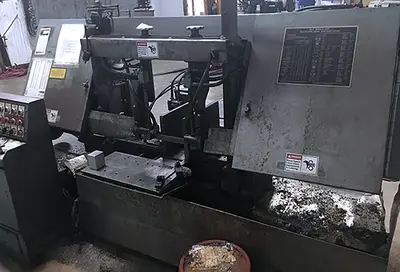

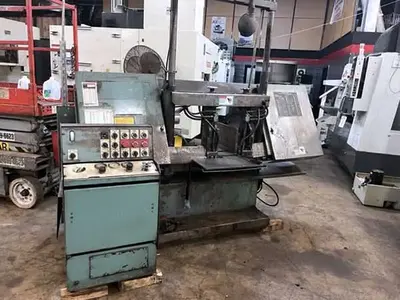

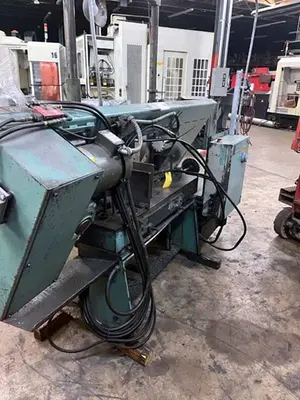

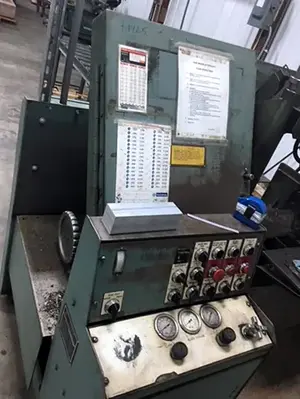

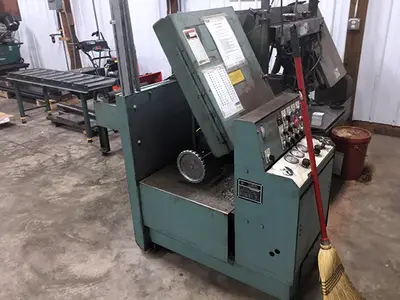

USED 1994 WF WELLS F1620
Overview
Description

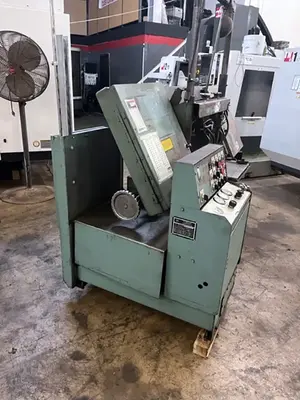

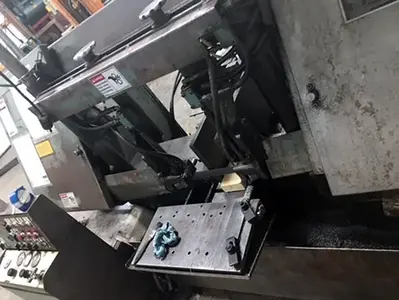

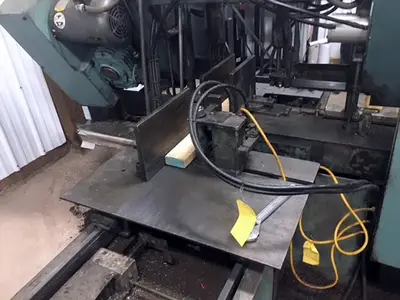

Used WF Wells F1620. This pre-owned Horizontal Bandsaw is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this WF Wells Horizontal Bandsaw we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specifications
Capacity: Rectangular at 90Deg 16" High x 20"Wide, Round 16" Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1 1/4” X .042" X 15"
Blade Guides: Roller Guides with Carbide Inserts

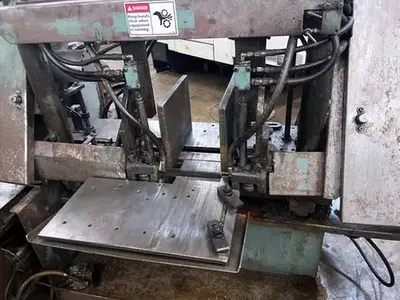

Vise: Hydraulic, Full Stroke, 15" High
Bandwheel Size: 20"
Blade Tension: Hydraulic

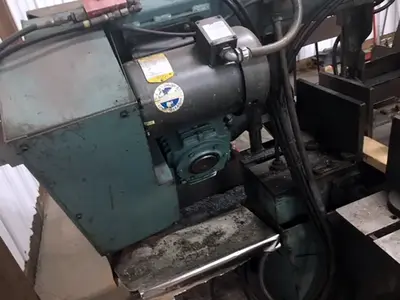

Blade Drive: 7 1/2 HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35"
Shuttle Indexes: Unlimited
Projection Accuracy: +/-.002"
Remnant End: 4"
Shipping Weight Approx: 4,000 lbs
Electric: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 104" Length x 101" Width x 88" Height
Equipped With

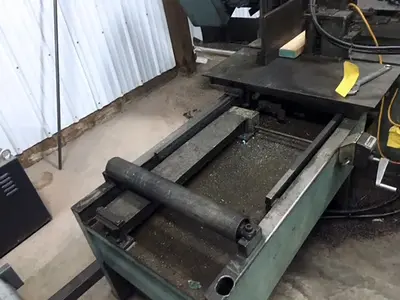

Conveyor
Blades
Coolant pan
Transformer
Bed and Vise Wear Strips
Automatic Kerf Compensation
Blade Break/Stall Switch
