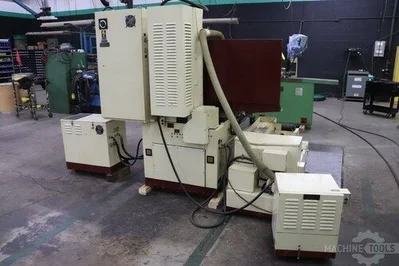

USED 1987 CHEVALIER FSG-1020AD

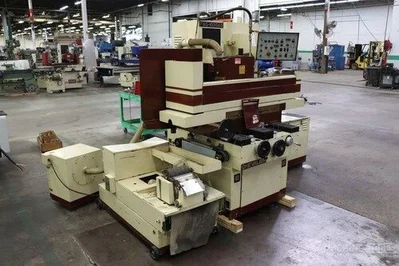

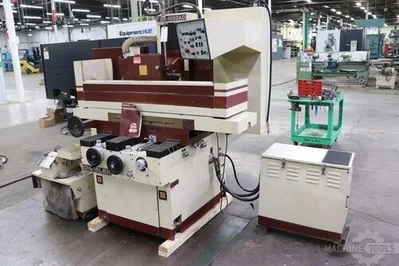

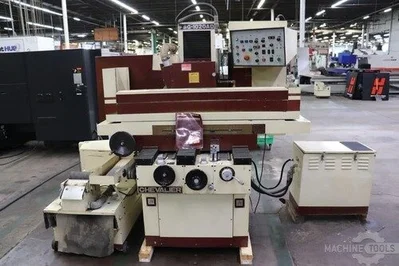

Chevalier FSG-1020AD 3-Axis Automatic 10" x 20" Hydraulic Surface Grinder

General Info

Stock #: 210250076
Location: Decatur, Ga
Brand: Chevalier
Model: FSG-1020AD

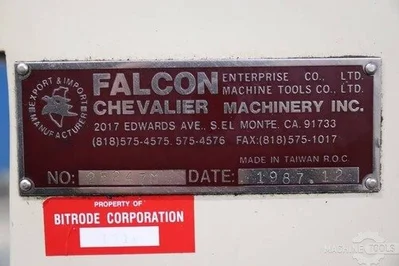

Serial #: 25247M
Year: 1987
Approx. Shipping Weight: 5,000 Lbs.
Approx. Shipping Dimensions: 11' L x 5' W x 7' H
Skidding Fee: Skidding Unavailable

Specifications

Maximum Grinding Length: 20"
Maximum Grinding Width: 10"
Maximum Distance Between Spindle Center to Table Surface: 21"
Longitudinal Travel, Manual: 24-3/8"
Longitudinal Travel, Hydraulic: 22-7/8"
Longitudinal Table Speed (Infinitely Variable): 16 to 82 FPM
Crossfeed Travel, Manual: 11-3/4"
Crossfeed Rapid Travel Speed: 12.5 FPM
Crossfeed Micro Feed (per graduation): 0.00005"
Crossfeed Micro Feed (per revolution): 0.005"
Wheelhead Infeed Auto. Infeed: 0.000050" to 0.002"
Wheelhead Infeed Rapid Travel: 8 IPM
Wheelhead Micro Feed: 0.000050" / 0.0001"
Wheelhead Infeed (per graduation): 0.0005"
Wheelhead Infeed (per revolution): 0.05"
Spindle Motor: 3HP
Electrical: 480V 3PH

Equipped With

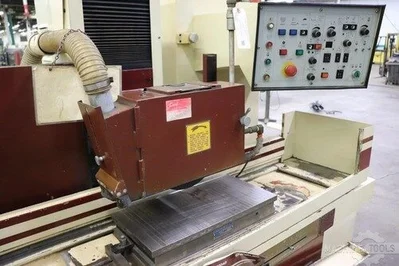

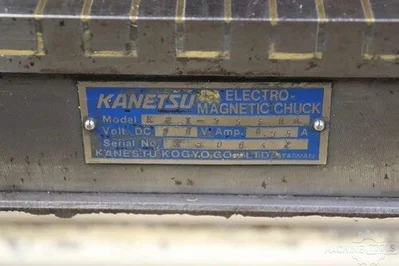

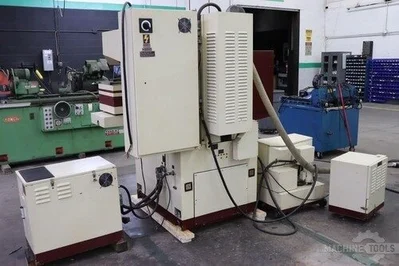

Kanetsu Electro Magnetic Chuck, Dust Collection System, Coolant System

Additional Info
The Chevalier Surface Grinder can be demoed upon request. Check out the video on the listing to see it in operation.
