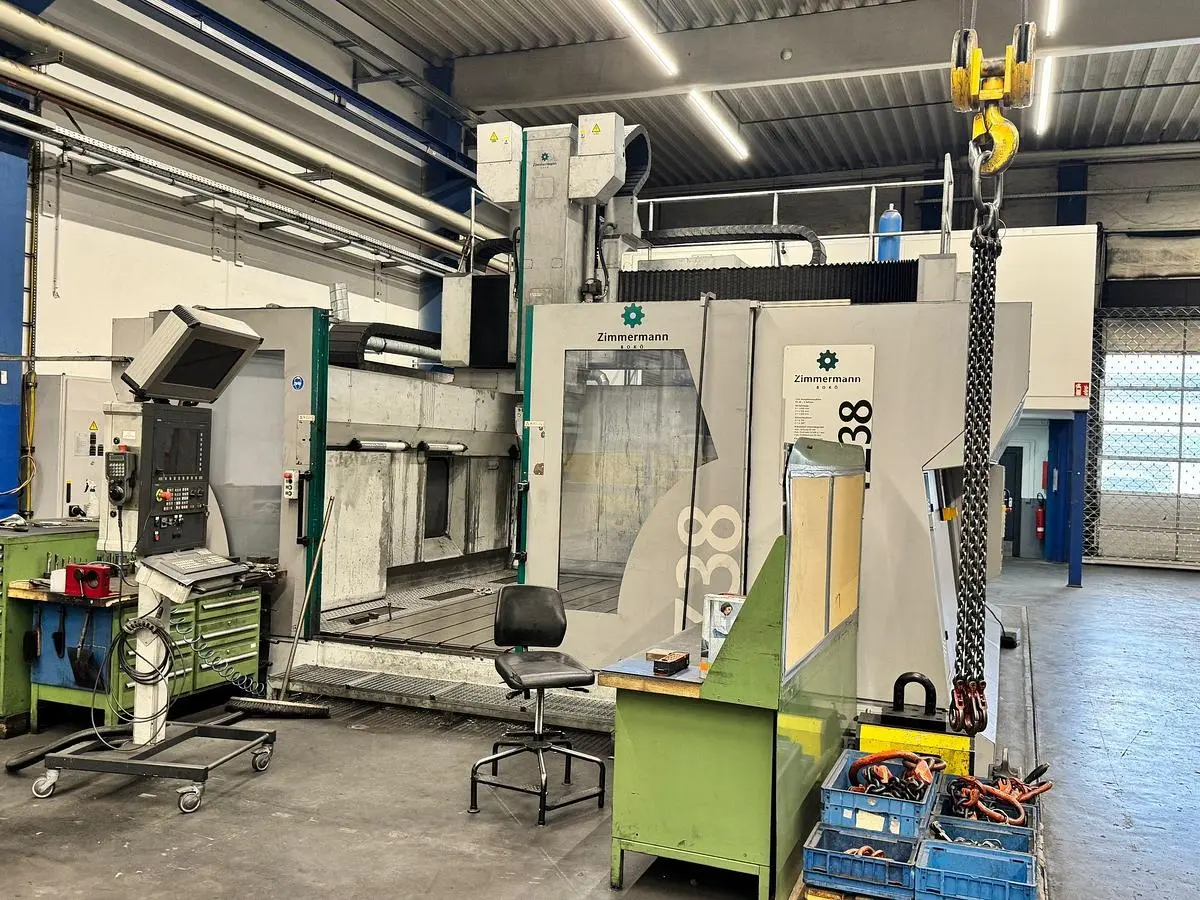

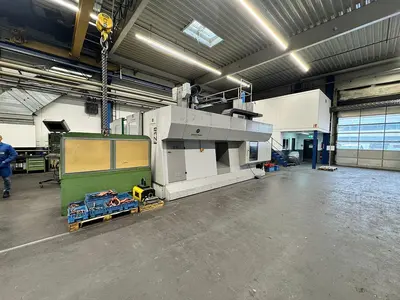

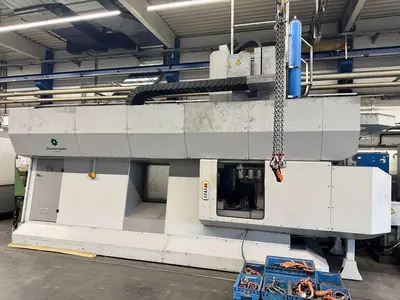

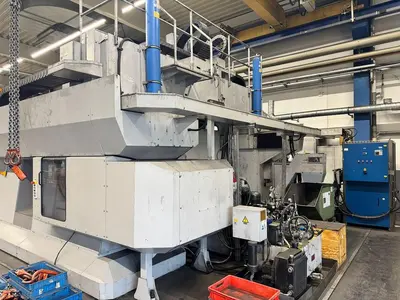

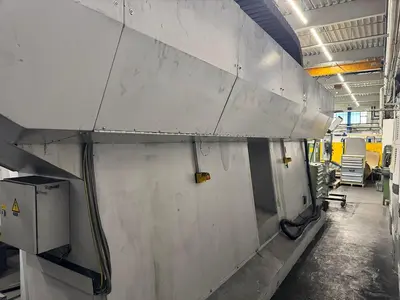

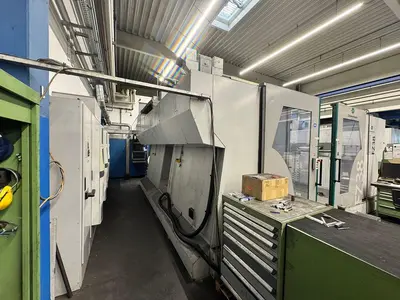

USED 2006 ZIMMERMANN FZ 38
Overview
Fully Rebuilt & Retrofitted in 2022 by the OEM Zimmermann

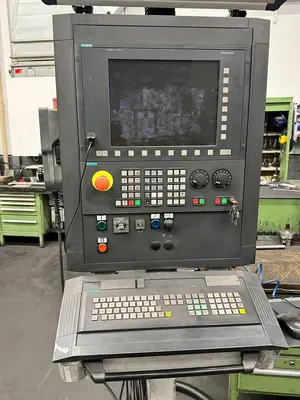

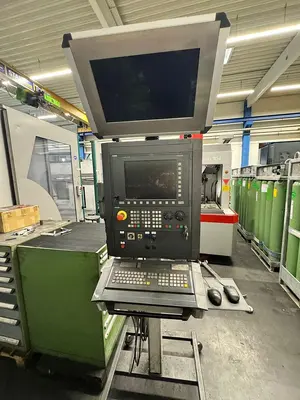

Siemens SINUMERIK CNC Control

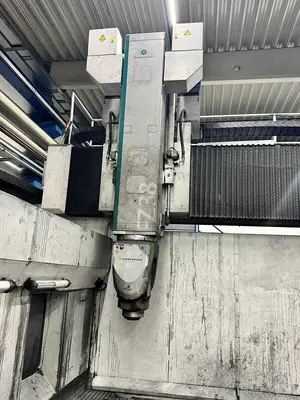

2 Spindles:
24,000 rpm - 50 kW - 95 Nm - Max Tool Diameter 80 mm
10,000 rpm - 44 kW - 200 Nm - Max Tool Diameter 125 mm
Linear axes certification 5/m
Specs
Manufacturer: Zimmermann
Model: FZ 38
Year: 2006
Condition: Used
Stock Number: 5654271
Spindle speeds: 24,000 / 10,000 rpm
X axis travel: 3,000 mm
Y axis travel: 2,500 mm
Z axis travel: 1,250 mm
Spindle taper: HSK 100
A axis: ±100°
C axis: ±360°
Spindle power: 50 / 44 kW
Spindle torque: 95 / 200 Nm
Linear axis feeds: 60 m/min
Linear axis acceleration: 5 m/s²
Machine weight: 60,000 kg
Operating voltage: 400 V
Frequency: 50 Hz
Nominal current: 220 kW
