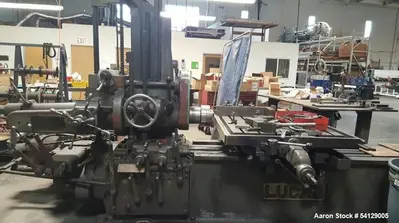

Used Lucas Horizontal Precision 41 Boring Mill | 4" Spindle | #6 Morse Taper | 60" X-Axis Travel | Rotary Table Included

Used Lucas Horizontal Precision 41 Boring Mill | 4" Spindle | #6 Morse Taper | 60" X-Axis Travel | Rotary Table Included. 24" spindle feed W-axis. 48" vertical Y-axis travel. 57" Z-axis saddle travel with the backrest installed, 77" saddle travel w/o backrest. 60" cross travel with 36" x 74" table. Approx. 48" vertical head travel (Y-axis). Approx. 36?48? spindle travel (W-axis/Z-axis). Approx. 48?60? table cross travel (X-axis). Saddle/depth travel varies between 48?58?. 34?48? W x 62?68" table size. Scales on X, Y, Z. Manual Shifting for feeds, speeds, and backgear. 15-1550 Spindle RPM, Approx. 15 HP spindle motor, 3/60/220VAC. Rotary table included.

Used Equipment Facts About This Machine
🏭 Manufacturer Information

Manufacturer: Lucas

Model: Precision 41

Type: Horizontal Boring Mill

Condition: Used

⚙️ Product Description

This Used Lucas Precision 41 Horizontal Boring Mill is a versatile, heavy-duty machining center designed for precision boring, milling, drilling, and facing operations on large or complex workpieces.
The machine features a 4" diameter spindle with a #6 Morse taper, 24" W-axis spindle feed, and significant axis travel across X, Y, and Z—making it suitable for machining large castings, molds, housings, and tooling plates.
Equipped with manual shifting for feeds, speeds, and backgear, this Lucas model offers robust mechanical reliability with operator-controlled precision. The spindle delivers 15–1550 RPM powered by an approx. 15 HP motor.
Unit includes a rotary table, further expanding machining flexibility for multi-sided work. Scales on X, Y, and Z axes provide improved accuracy and repeatability.

📏 Specifications

Spindle & Head

Spindle Diameter: 4"

Taper: #6 Morse taper

Spindle Speeds: 15–1550 RPM

Spindle Motor: Approx. 15 HP

Spindle Feed (W-axis): 24"

Approx. Spindle Travel: 36"–48" (W/Z-axis combined)

Axis Travels

Vertical Travel (Y-axis): approx. 48"

Saddle/Depth Travel (varies): approx. 48"–58"

Z-axis Saddle Travel:

57" with backrest

77" without backrest

Cross Travel (X-axis): approx. 48"–60"

Table

Table Size: approx. 34"–48" W × 62"–68" L

Table Cross Travel: approx. 48"–60"

Rotary Table: Included

Table Dimensions Called Out: 36" × 74"

Additional Features

Axis scales on X, Y, Z

Manual shifting for feeds, speeds, and backgear

Heavy-duty horizontal machining design

Electrical

Power: 3/60/220 VAC

🧩 Applications

Precision boring & facing

Large workpiece milling

Industrial machining operations

Mold and die components

Heavy equipment parts

Castings and housings

Tooling fabrication

Multi-side machining with rotary table

Job shops & heavy machining facilities

Aerospace, automotive, and industrial manufacturing

⚗️ What This Might Be Used For

High-accuracy cavity and bore machining

Heavy material removal on large parts

Multi-axis machining with rotary indexing

Rework and repair of industrial components

Machining large welded structures

🧱 Materials Commonly Machined

Steel & carbon steel

Stainless steel

Aluminum

Alloy steels

Cast iron

Tool steels

Large fabricated metal assemblies
