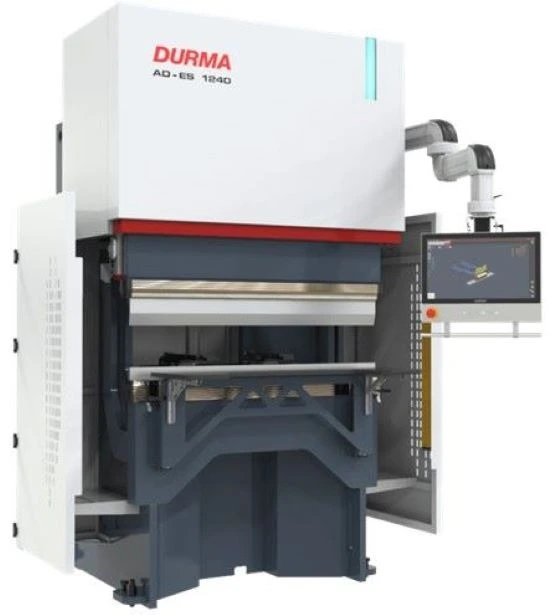

NEW DURMA AD-ES 1240

DURMA (NEW) MODEL AD-ES 1240 ELECTRICAL PRESS
BRAKE

44.1 US TONS
4' 1" BENDING LENGTH
4' 5" BETWEEN COLUMNS
39.3" TABLE HEIGHT
7.8" STROKE
17.3" DAYLIGHT
4.52"/SECOND RAPID SPEED
0.39 - 0.79"/SECOND WORKING SPEED
4.52"/SECOND RETURN SPEED
0.0004" RAM REPEATABILITY
25.5" BACKGAUGE (X-AXIS) WORKING DISTANCE

DELEM DA-66T CNC CONTROL
- 2D GRAPHIC TOUCH SCREEN PROGRAMMING MODE
- 3D VISUALIZATION IN SIMULATION PRODUCTION
- 17.5" HIGH RESOLUTION COLOR TFT
- DELEM MODUSYS COMPATIBILITY
- USB PERIPHERAL INTERFACING
- USER SPECIFIC APPLICATION SUPPORT WITHIN
THE CONTROLLERS MULTITASKING ENVIRONMENT
- SENSOR BENDING AND CORRECTION INTERFACE

STANDARD FEATURES
- 4 AXIS CNC Y1, Y2, X, R
- FIESSLER BLVT LIGHT CURTAIN SAFETY SYSTEM
- SERVO DRIVEN BACKGAUGE SYSTEM (X-AXIS)
LINEAR GUIDE AND BALLSCREW DESIGN
- 2 BACKGAUGE FINGER BLOCKS
- QUICK-RELEASE CLAMPING SYSTEM
- 2 SLIDING FRONT SUPPORT ARMS WITH T-SLOT,
TILTING STOP AND FULL LENGTH LINEAR GUIDE

OPTIONS INCLUDED ON STOCK MACHINE
- DURMA NEW STANDARD HYDRAULIC TOP CLAMP
- DURMA NEW STANDARD HYDRAULIC BOTTOM CLAMP
- HYDRAULIC POWERPACK FOR CLAMPING SYSTEMS
- ROLLERI TPR200.86.R1 TOP TOOL
- ROLLERI TMR100.12.86 BOTTOM TOOL
- 4-AXIS BACKGAUGE X = 25.5" X, R, Z1, Z2
- WORKING TABLE IN LIEU OF SUPPORT ARMS

HYDRAULIC OIL REQUIRED
