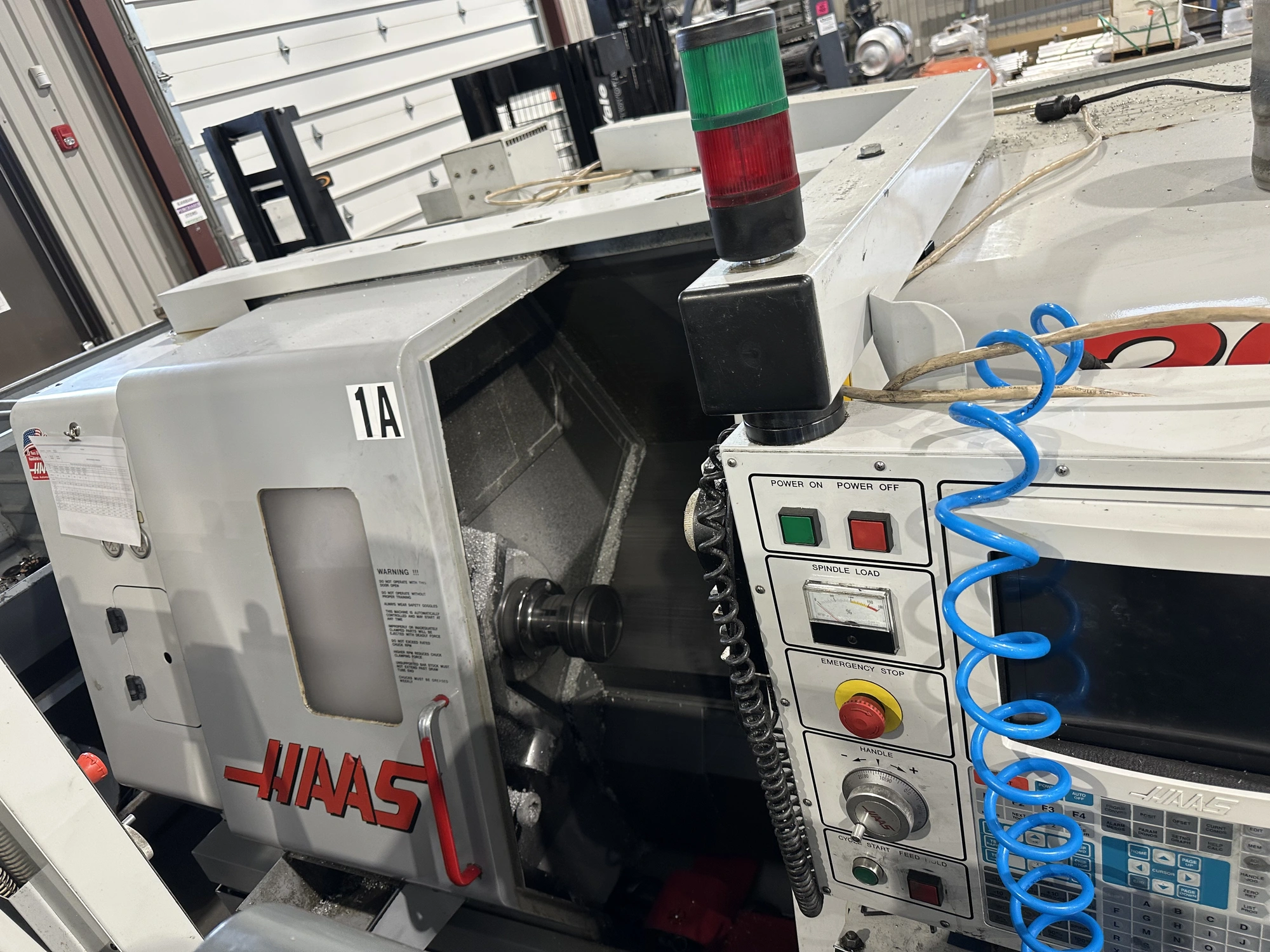

Haas SL-20T CNC Turning Center, New in 1999
| Swing | 23" | 584.2 mm |
| Machining Length | 20" | 508 mm |
| # Axis | 3 | 3 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 10.3" | 261.62 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 129" x 88" x 72" | 129" x 88" x 72" |
| Weight | 9000 lbs. | 9000 lbs. |
General Specifications:
Bar Capacity: 2"
Chuck Size: 8"
X-Axis Travel 8.45"
Z-Axis Travel 20"
Distance Between Centers: 24"
Diameter Bar Capacity: 2"
Machining Length: 20"
Swing Over Bed / Carriage: 20" / 9.5"
Turning Diameter: 10.3"
Rapid Traverse Rates: 710 IPM
Spindle Bore: 3"
Spindle Motor: 20 HP
Spindle Nose: A2-6
Spindle Speed: 4000 RPM
Spindle Torque: 154 ft. lbs.
Tailstock Taper: MT#4
Tool Positions: 10
Machine Dimensions: 129" x 88" x 72"
Machine Weight: 9000 lbs.
Haas CNC Control
Tailstock
