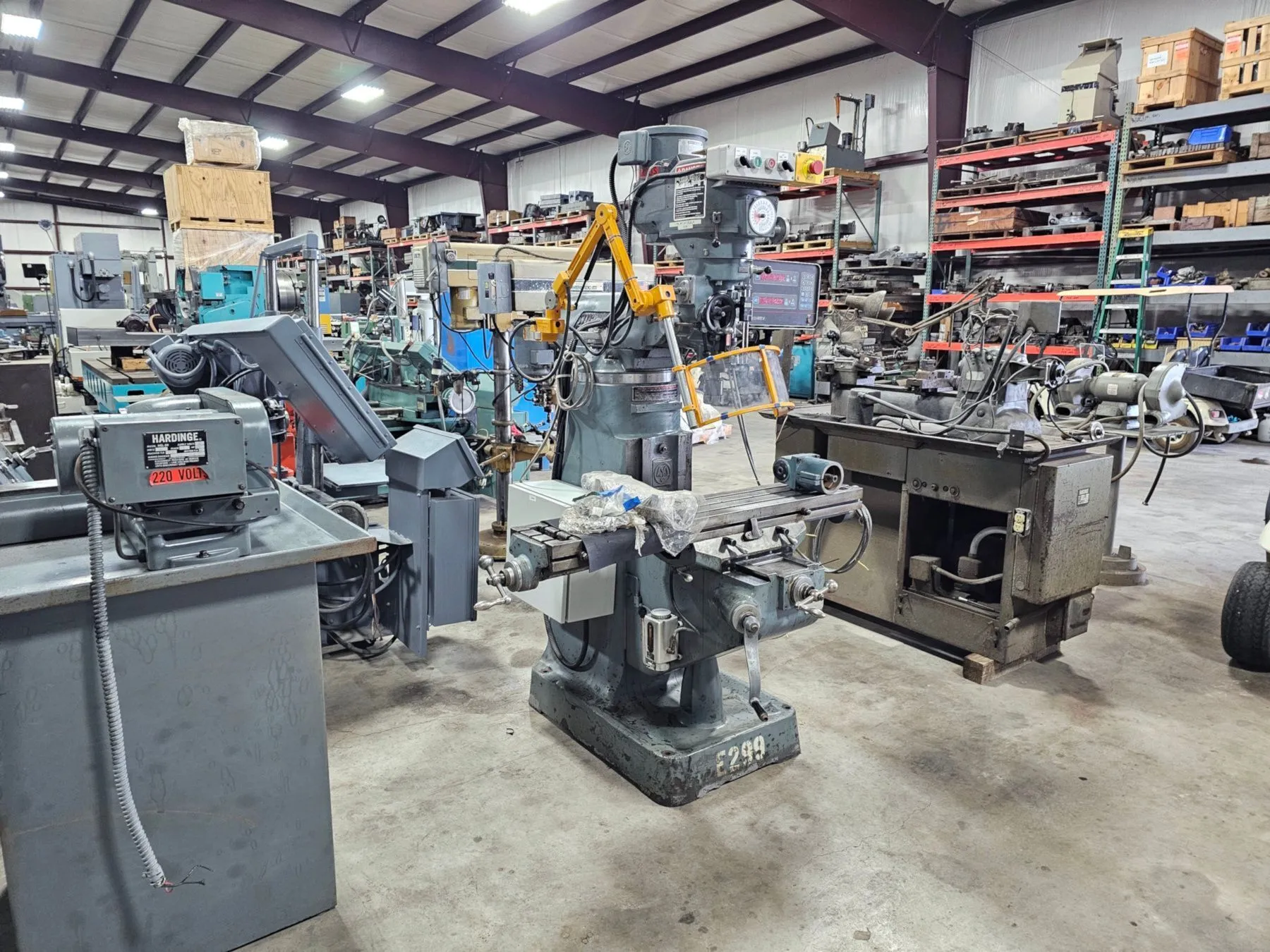

USED ALLIANT RT2

9" X 42" Used Alliant RT2
Table Size..........................................9" X 42"
Table-W.............................................9"
Table-L.............................................42"
Travel-Long.........................................31"
Travel-Cross........................................12"
Table Load..........................................750 Lbs.
Table Height Above Floor............................47-1/4"
Spindle Taper.......................................R- 8
Spindle Speeds Variable.............................60 To 4,200 Rpm's
Spindle Feeds.......................................0.001 To .003 I.P.R.
T-Slot Centers......................................3 @ 2.5"
T-Slott Size........................................0.625"
Spindle Quill Travel................................5"
Spindle Tilt........................................+/- 45 Degrees
Spindle Swivel......................................+/- 45 Degrees
Spindle To Table Min / Max..........................6-3/4" / 18-3/4"
Spindle Diameter....................................1-7/8"
Quill Diameter......................................3-3/8"
Knee Travel.........................................16"
Milling Capacity (Mild Steel).......................3/4"
Boring Range (Mild Steel)...........................6"
Main Motor..........................................3 Hp.
Floor Space.........................................R To L 60" X F To B 72"
Machine Height......................................84"
Weight..............................................2,500 Lbs.
Right Angle Head....................................Yes
Misc. Collets.......................................Yes
Servo Table Power Feed..............................Yes
Digital Scale On Quill..............................Yes
Accu-rite Two Axis D.R.O............................Yes

Note: Updated Electrics. Machine has been cleaned and cycled.

Optional Equipment: Prices Subject To Change
Description Price
Power Draw Bar For R-8 Spindle....................................$990.00
Install Air Draw Bar..............................................$150.00
Power Feeds:
Servo Dynamo Power Table Feed
SERVO Dynamo 150 Table Feed - Longitudinal........................$895.00
SERVO Dynamo 150 Table Feed - Cross...............................$895.00
SERVO Dynamo 150 Table Feed - Knee................................$990.00
SERVO 150 Inch Pound Table Feed - Longitudinal....................$990.00
SERVO 150 Inch Pound Table Feed - Cross...........................$1,080.00
SERVO 200 Inch Pound Table Feed – Knee “ 200 Series”..............$1,890.00
Table Feed Installation...........................................$225.00
Cross Feed Installation...........................................$275.00
Knee Feed Installation............................................$425.00
D.R.O. System:
Newall 2 Axis Table, Cross Installed..............................$3,550.00
Newall 3 Axis Table, Cross And Knee Installed.....................$4,190.00
Mitutoyo Digimatic Quill Scale With Bracket Installed.............$950.00

New Webb 3 Hp. Variable Speed Head Installed......................$5,750.00
Webb Milling Machine's And Heads Have Been Manufactured
In The Same Plant For Over 40 Years.
