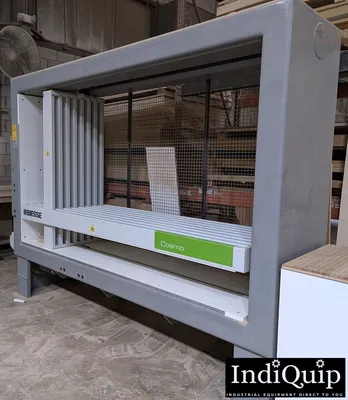

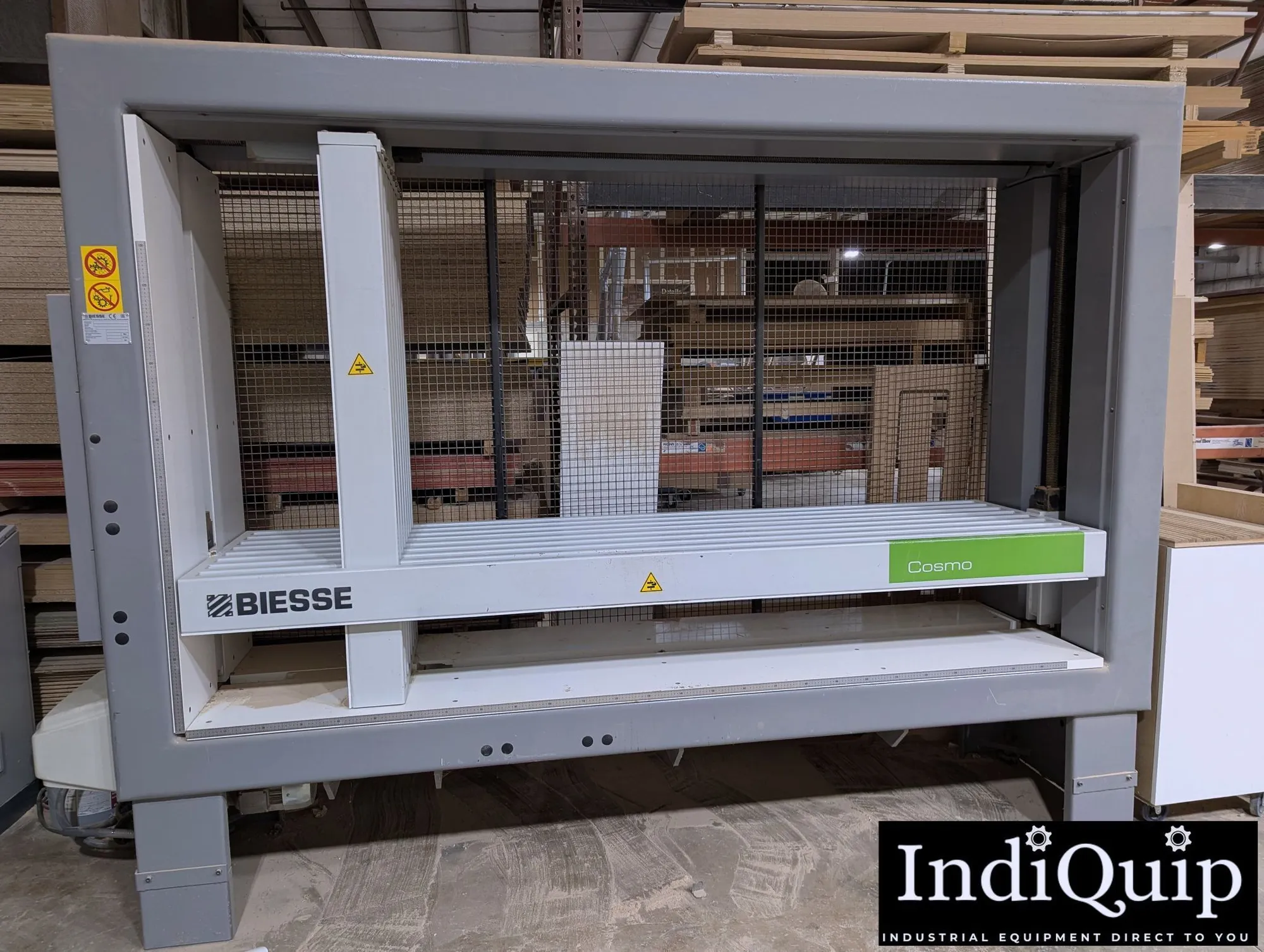

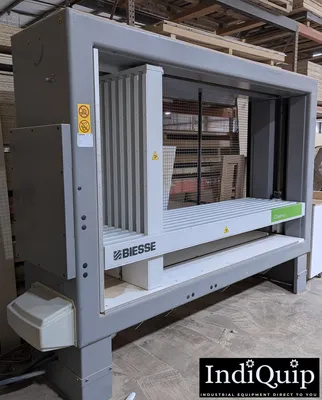

USED 2022 BIESSE Cosmo

Biesse Cosmo cabinet case clamp with 98.5″ × 51″ capacity, pneumatic clamping, and heavy steel frame. Ideal for cabinet assembly and production lines.

Max Working Height: 51 in
Max Working Length: 98.5 in
Max Panel Depth: ~24 in
Clamping Style: Vertical + horizontal pneumatic clamping
Clamping Pressure: Adjustable
Workholding: Full-height pneumatic press beams
Air Requirement: 6 bar (87 psi)

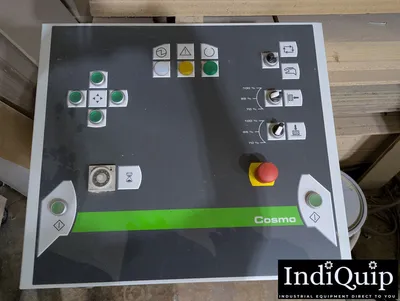

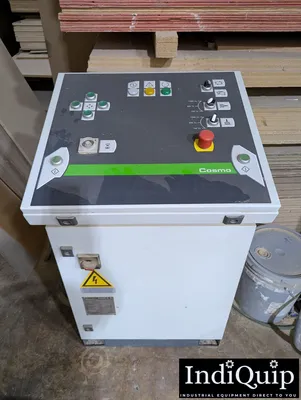

Pneumatic Controls: Integrated valve bank
Activation: Manual selection switch + automatic beam movement
Voltage: 575 VAC
Phase: 3-phase + PE
Full-Load Current: 4 A
Total Power: 3.7 kW (≈ 5 HP)
Frequency: 60 Hz
Short-Circuit Rating: 10 kA RMS
